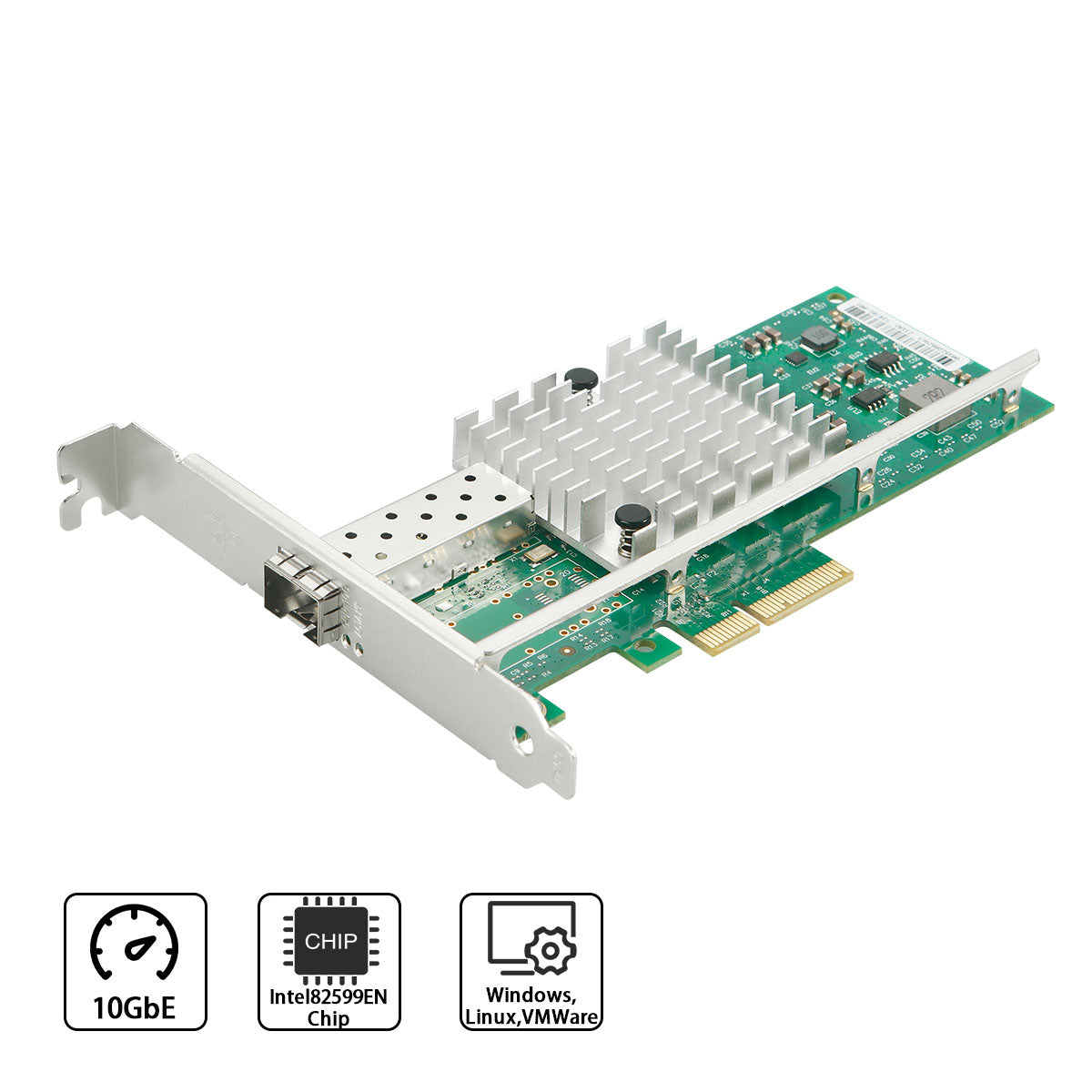

• Lekuo 10G SFP+ PCIe Network Card Intel 82599ES Front View

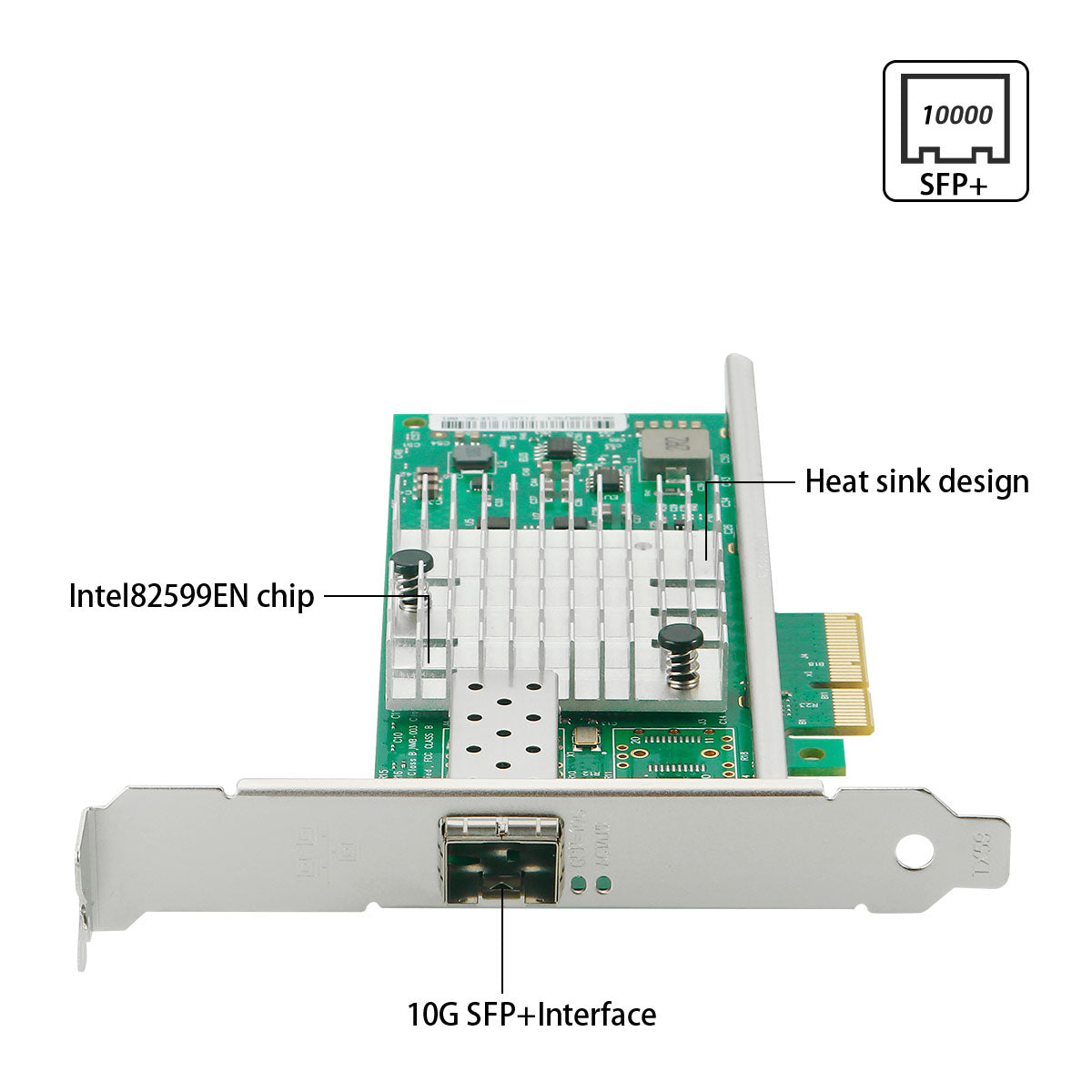

  • Intel 82599ES 10 Gigabit Ethernet Card SFP+ Port Close-up
  • PCIe x4 10G Network Card Back View with Gold Finger Connector
  • 10G Ethernet Network Card Package with Low Profile Bracket
1 4

Lekuo PCIe x4 10G SFP Ethernet Network Card – Intel 82599EN Chip, Single 10GbE Port for Server, NAS & High-Speed Networking

Lekuo PCIe x4 10G SFP Ethernet Network Card – Intel 82599EN Chip, Single 10GbE Port for Server, NAS & High-Speed Networking

$29.39 USD
$60.94 USD $29.39 USD
Sale Sold out
Taxes included.

PI29F12
View full details

Product Description

🚀 Professional 10G Network Solution

Intel 82599ES Chipset | Enterprise-Grade Performance

📥 Official Driver Download

⬇️ Download Intel 82599 Drivers

✅ Official drivers | 🔒 Safe & secure | 🆓 Free download

📋 Product Specifications

🔧 Model PI29F12
🔌 Input Interface PCIe x4/x8/x16
📡 Output Interface SFP+ (10G Fiber)
⚡ Transmission Rate 10 Gbps
📦 Included Accessories Low profile bracket

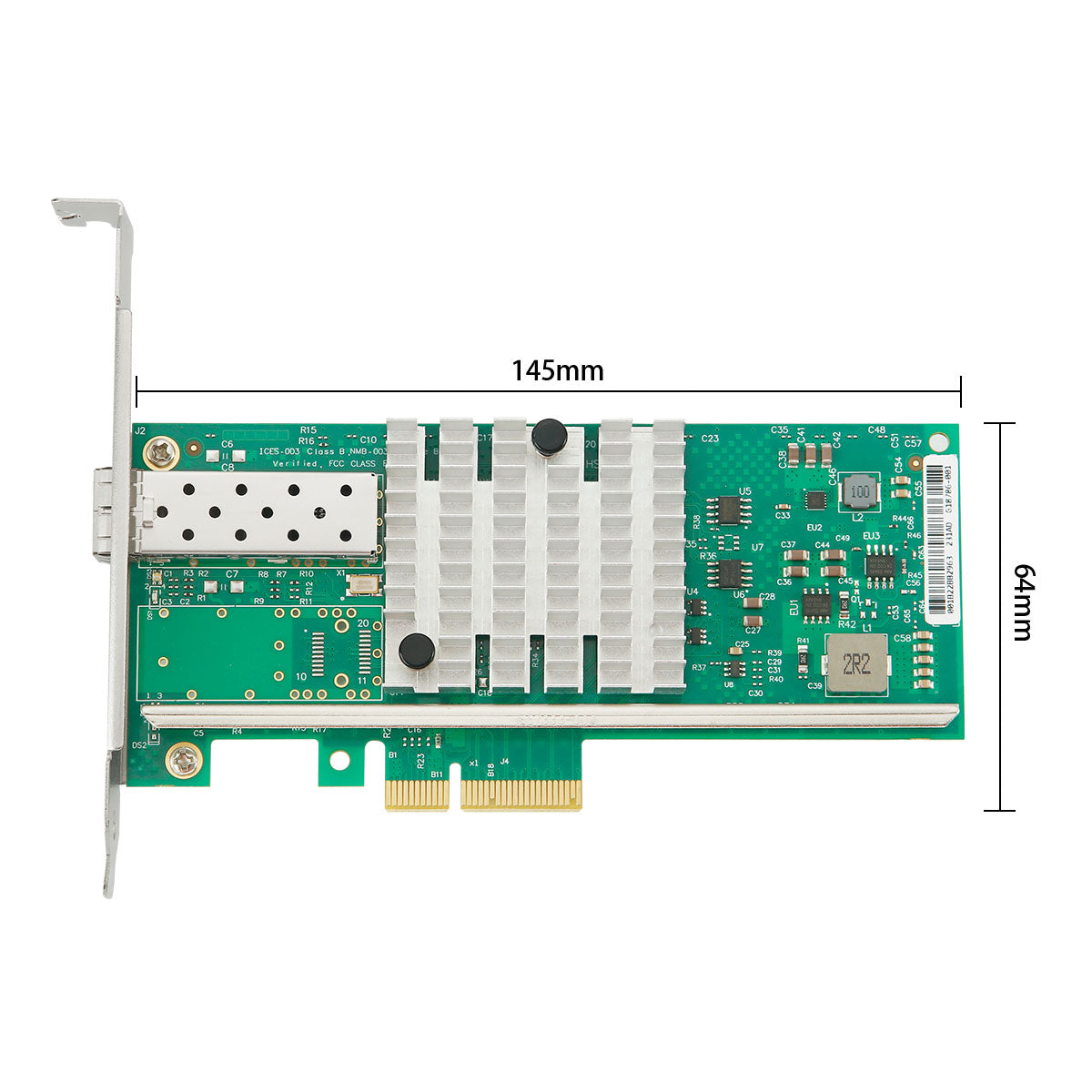

📏 Product Size 145 x 64mm

✨ Key Features

🎯 Speed/Port
10Gbps fiber for servers and workstations
💎 Ethernet Controller
Intel 82599ES chipset
🔗 Connector Type
LC fiber optic
📶 Cable Support
MMF 62.5/50µm, up to 300m
🖥️ Bus Type
PCI Express 2.0 (5 GT/s)
🔌 Slot Compatibility
PCI-Ex4/x8/x16

🔧 Technical Specifications

  • ✅ Data Rate: Optical 1GbE/10GbE | Direct Attach 10GbE
  • ✅ Network Standards: IEEE 802.3
  • ✅ Interrupt Levels: INTA, MSI, MSI-X
  • ✅ Slot Height: Low profile and full height supported
  • ✅ Intel VT: VMDq (Virtual Machine Device Queues), VMDc
  • ✅ Security: IPSEC/LinkSec encryption
  • ✅ Power Consumption: Max 10.7W | Typical 10.0W
  • ✅ LED Indicators: LINK (solid) and ACTIVITY (blinking)

🌡️ Environmental Specifications

🔥 Working Temperature: 0°C to 55°C (32°F to 131°F)

❄️ Storage Temperature: -40°C to 70°C (-40°F to 158°F)

💧 Storage Humidity: 5% to 90% non-condensing at 35°C

💻 System Requirements

🪟 Windows: Vista SP1, Server 2003 SP2, Server 2008, Unified Storage 2003

🐧 Linux: Kernel 2.6+, RHEL 4/5, SLES 9/10

🔧 Other: FreeBSD 7.0, UEFI 1.1, VMware ESX 3.x

📦 Package Contents

✔️ 1x PCIe x4 to 1 Port SFP+ 10G Ethernet Network Card

✔️ 1x Low-profile bracket

🎯 Perfect For

🖥️ Servers | 💾 NAS Systems | 🏢 Data Centers | ☁️ Virtualization | 🔄 High-Speed Storage

❓ Frequently Asked Questions (FAQ)

❔ What PCIe slot does this network card require?
This card works with PCIe x4, x8, or x16 slots. It requires at least a PCIe x4 slot for full 10Gbps performance. The card is compatible with both low-profile and full-height cases (low-profile bracket included).
❔ Is this compatible with my NAS or server?
Yes! This card is compatible with most servers, workstations, and NAS systems that have a PCIe slot. It supports Windows Server, Linux (RHEL, SLES), FreeBSD, VMware ESX, and other enterprise operating systems. Check your system's PCIe slot availability before purchase.
❔ Do I need to install drivers?
Yes, for optimal performance, please download and install the official Intel 82599 drivers using the download button above.
❔ Can this card achieve full 10Gbps speed?
Yes! With the Intel 82599ES chipset and proper configuration (PCIe x4 or higher slot, quality cables/modules, and compatible network infrastructure), this card delivers full 10 Gigabit Ethernet performance. Actual speeds depend on your entire network setup.
❔ Does it support virtualization?
Absolutely! This card features Intel VT for Connectivity, including VMDq (Virtual Machine Device Queues) and VMDc (Virtual Machine Direct Connect), making it ideal for VMware ESX, Hyper-V, and other virtualization platforms.
❔ What is the power consumption?
The card has low power consumption: maximum 10.7W and typical usage around 10.0W. No additional power connectors are required - it draws power directly from the PCIe slot.
❔ Is there a warranty?
Yes, this product comes with Lekuo's standard manufacturer warranty. Please contact our support team for specific warranty terms and conditions in your region.
