Driver download address:http://www.mmui.com.cn/data/upload/image/intel82599.zip

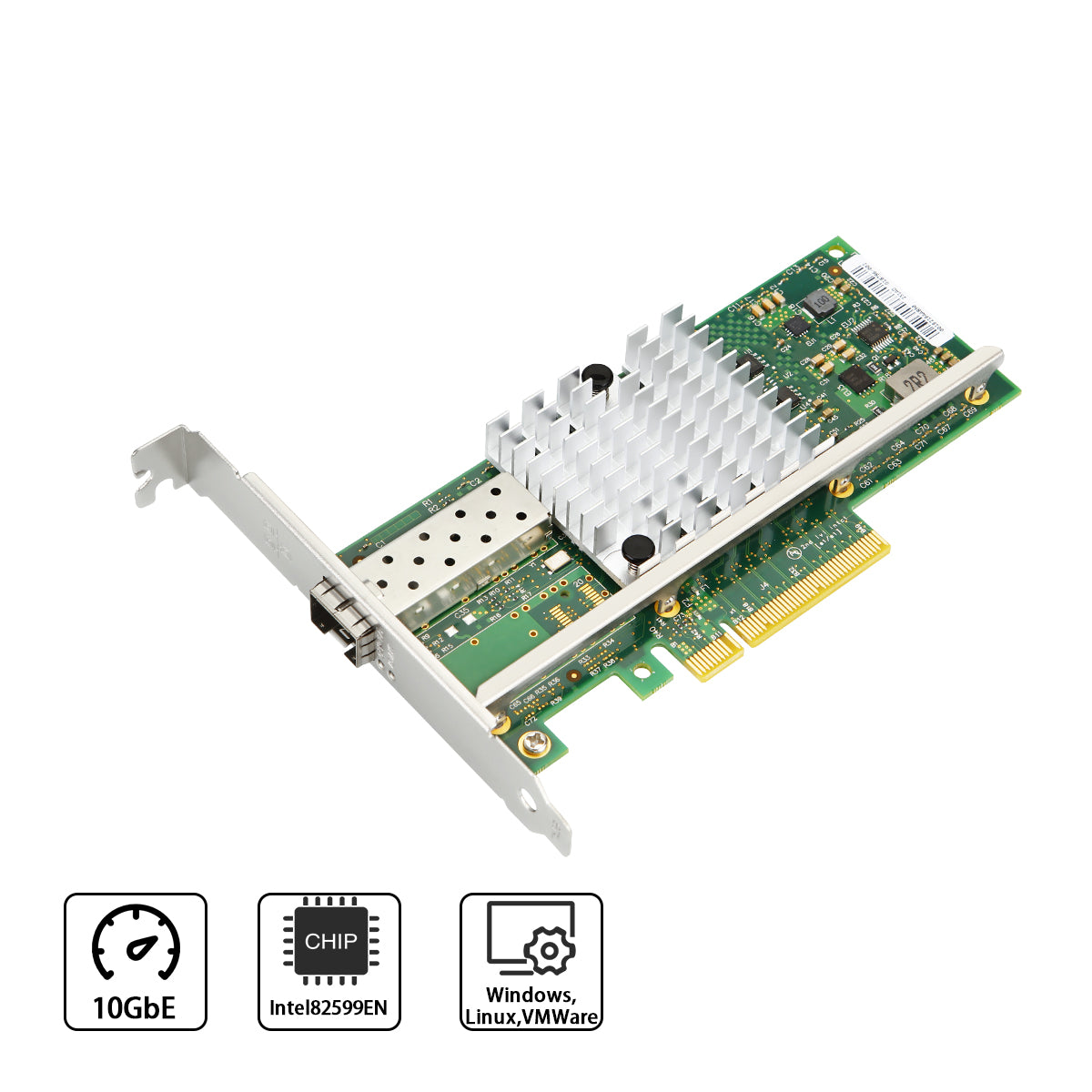

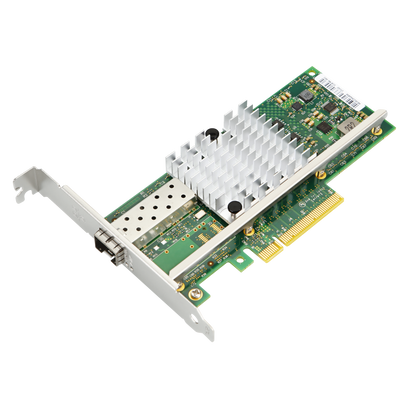

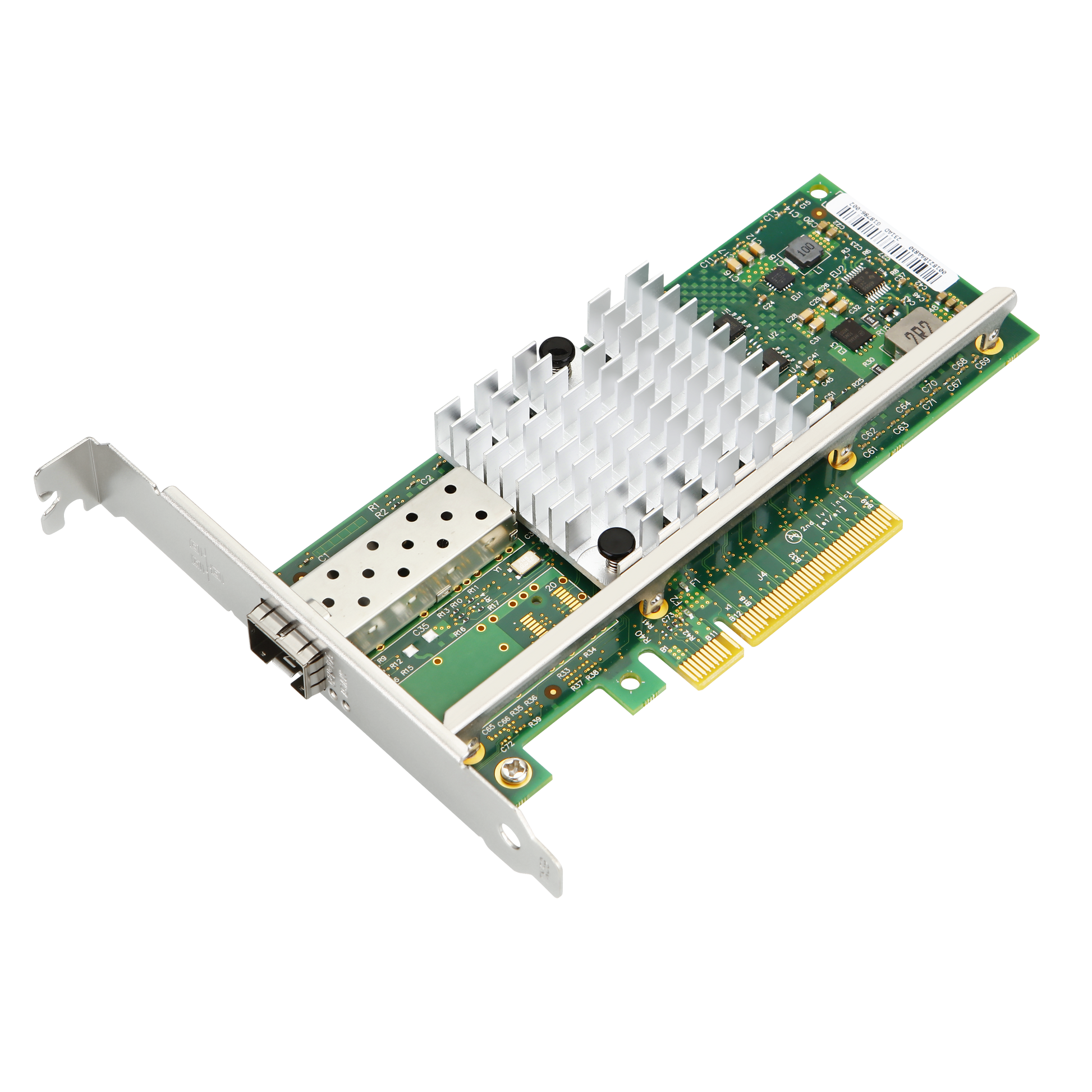

Model：PI29F11
Input Interface：PCIe
Output Interface：SFP+
Motherboard Slot：PCIe x8 、x16
Transmission Rate：10Gbps
Auxiliary Accessories：Low profile bracket

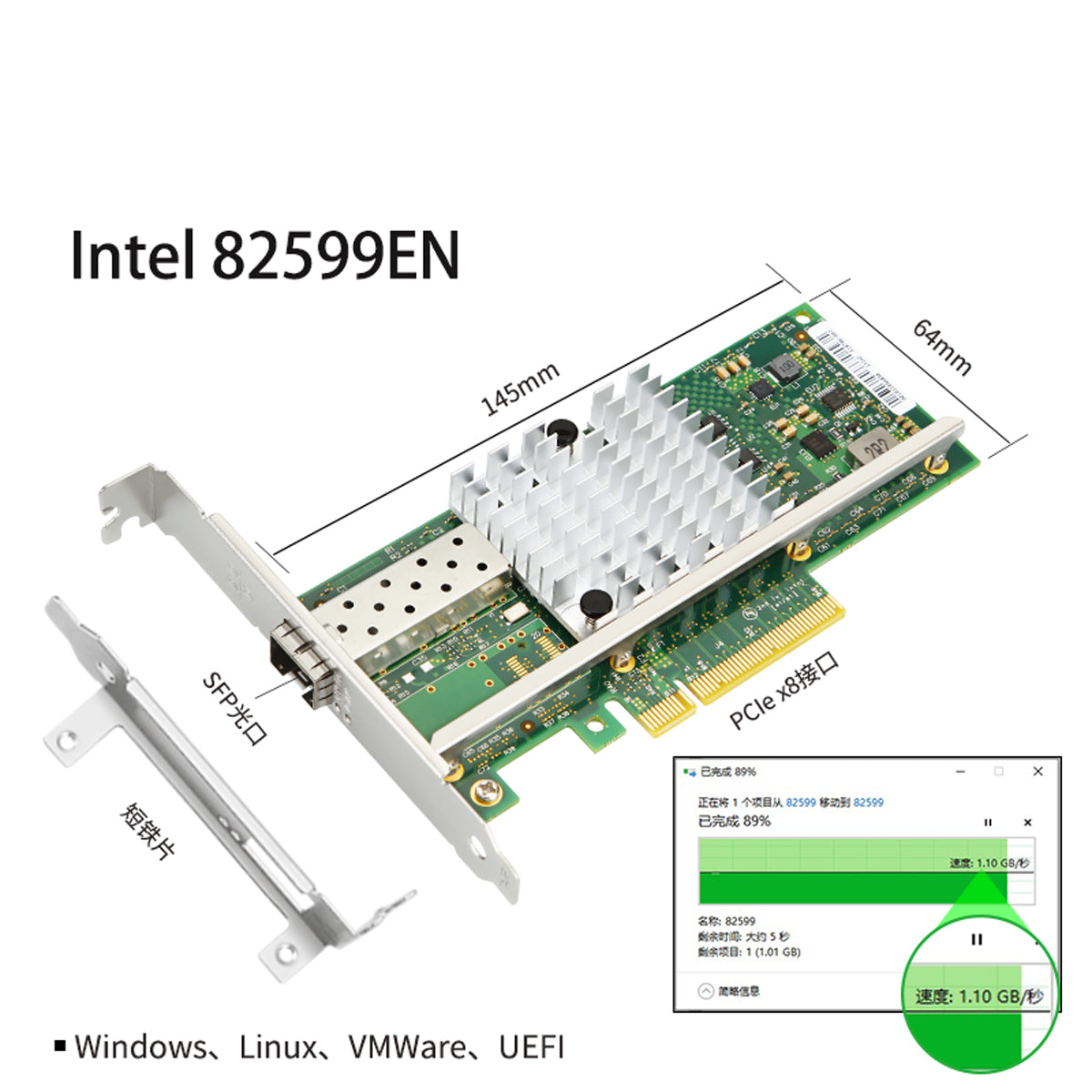

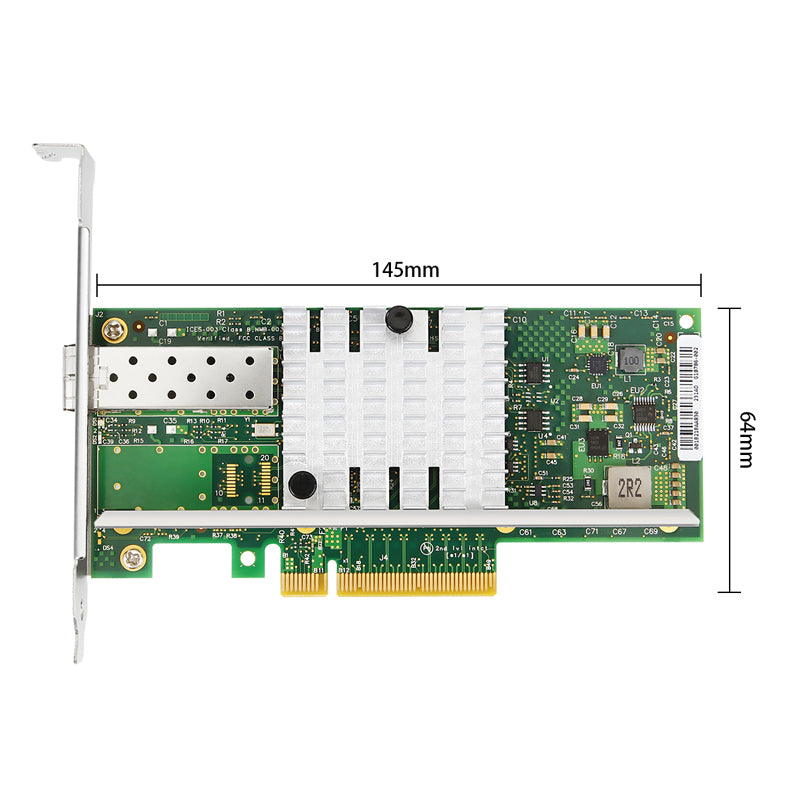

Product Size：145x64mm
Features
• Speed/port: 10Gbps (fiber for servers and workstations)

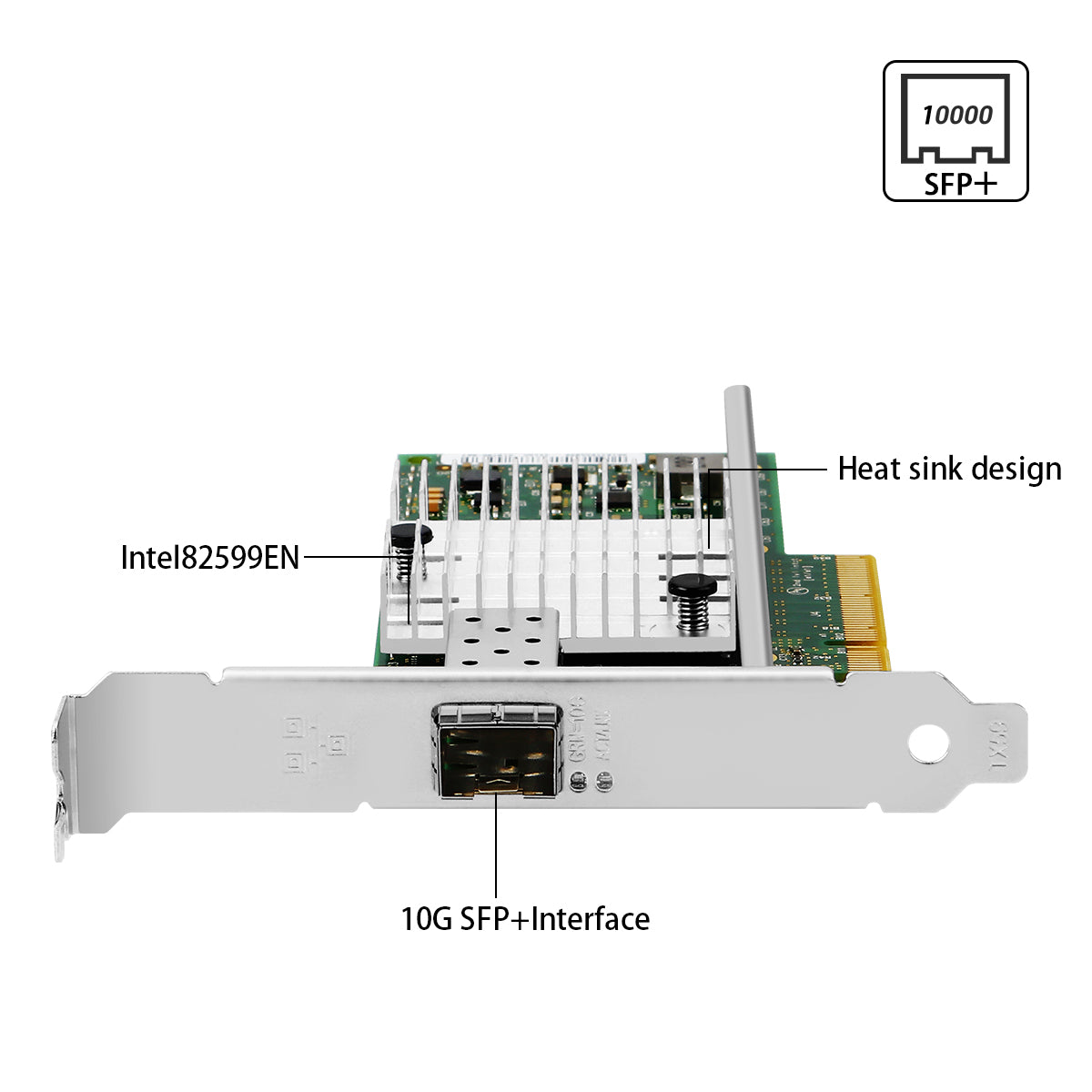

• Ethernet controller: Intel 82599EN
• Connector and cable medium: LC fiber optic
• Cabling type: MMF 62.5/50µm, up to 300m
• Maximum bus speed and slot width: PCI Express 2.0/5.0GT/s x 8 lane
• Ports: one SFP+ slots for SFP+ SR, SFP+ LR modules and direct attach SFP+ cables
• Bus type: PCI express 2.0 (5 GT/s)
• Bus width: PCI-E x 8/x 16
• Data rate supported per port: optical: 1GbE/10GbE direct attach: 10GbE
• Network standards: IEEE 802.3
• Interrupt levels: INTA, MSI, MSI-X
• Supported slot height(s): low profile and full height
• Intel VT for connectivity1: virtual machine device queues (VMDq), virtual machine
direct connect (VMDc)
• Security features: IPSEC/LinkSec
• IWARP/RDMA: NA
• Typical power consumption: maximum power 10.7W, typical power: 10.0W
• LED indicators: LINK (solid) and ACTIVITY (blinking), LINK SPEED (green =
• Working Temperature: 0℃ to 55℃ (32℉ to 131℉)
• Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉)
• Storage Humidity: 5% to 90% non-condensing relative humidity at 35℃
System Requirements
• Windows* Vista* SP1
• Windows Server* 2003 SP2
• Windows* Unified Storage Solution 2003
• Windows Server* 2008
• Linux* Stable Kernel version 2.6
• Linux* RHEL 4,Linux* RHEL 5
• Linux* SLES 9,Linux* SLES 10
• FreeBSD* 7.0,UEFI* 1.1
• VMware ESX* 3.x
Package Contents
• 1 x PClex8 to 1 Port SFP+10G Ethernet Network
• 1 x Low-profile bracket
