Driver download address:http://www.mmui.com.cn/data/upload/image/AS3242.zip
Model：IO-PCE3242S-1C
Input Interface：PCIe
Output Interface：USB3.2 Type-C
Motherboard Slot：PCIe
Transmission Rate：20Gbps
Auxiliary Accessories：Low Profile Bracket

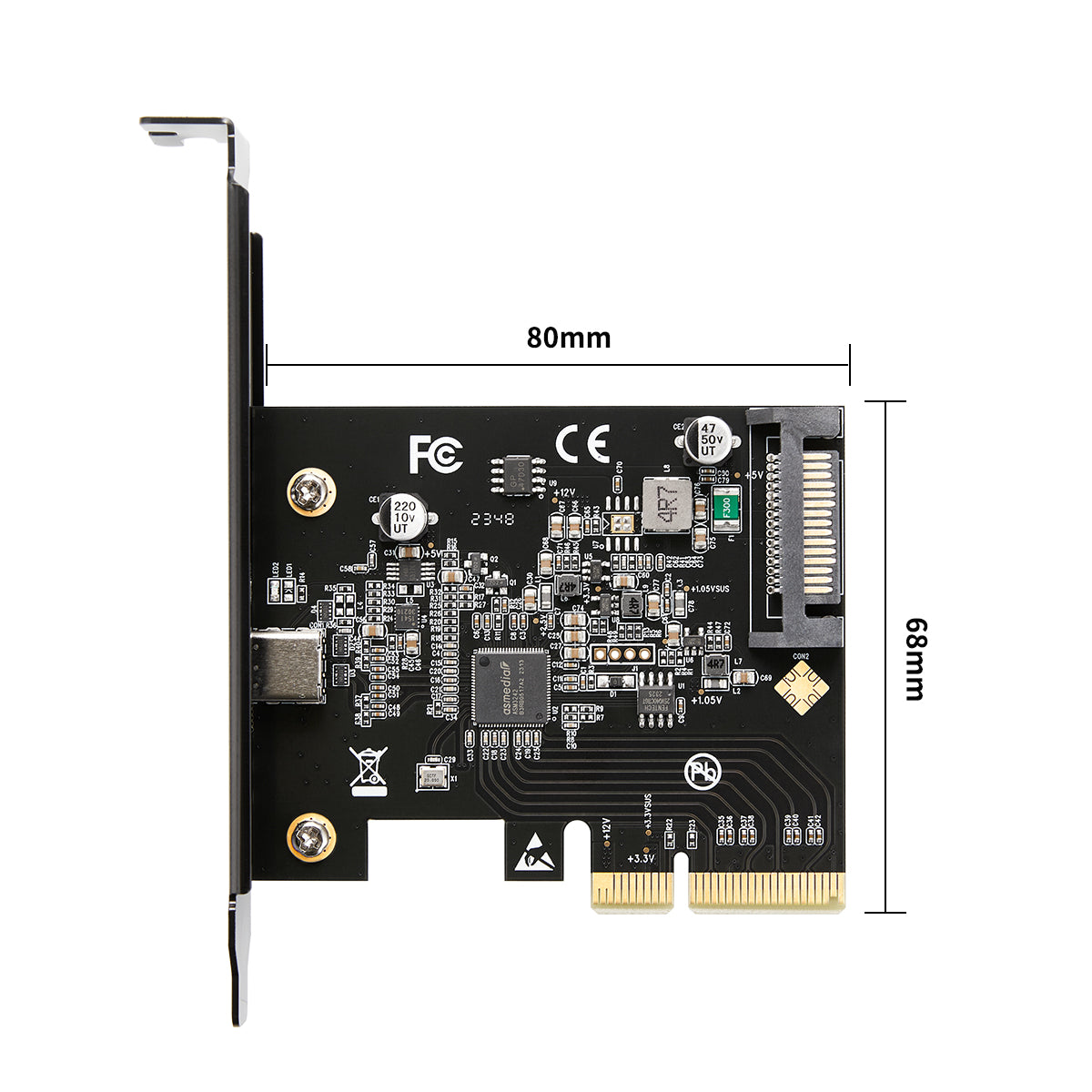

Product Size：80x68mm
Features
• Support PCI Express Gen-III x4
• Support PCI Express Base 3.1a Specification
• Compliant with PCI Express Card Electromechanical 2.0 specification
• Compliant with PCI Express Mini Card Electromechanical 1.2 specification
• Compliant with PCI PCI Bus power Management interface specification Revision 1.2
• Compliant with PCI PCI Local Bus specification Revision 3.0
• Integrate Spread Spectrum Controller for PCI Express interface
• Not Support lane reversal
• Compliant with Universal Serial Bus 3.1 specification Revision 1.0
• Compliant with Universal Serial Bus specification Revision 2.0
• Compliant with USB Attached SCSI Protocol Revision 1.0
• Support Multiple INs function
• Support one ports of USB3.2
• Support USB3.2 and USB2.0 Link Power Management
• Support Control,Bulk,Stream,Interrupt,Isochronous transfer type
• Support USB3.2Gen2 x2
• Up to 20Gbps
• Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1
• 5V/3000mA power output for Type C port
• A type c female, an external USB3.2 interface and internal SATA power
• Power Input: 15-pin SATA CD-ROM Type Power Connector
• Support device remote wakeup function from USB keyboard or mouse
• Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
• Operation Temperature ：0 to 60°C (32 to 140°F)
• Storage Temperature：-20 to 70°C (-4 to 158°F)
• Operation Humidity：5 to 95% RH
System Requirements
• Windows 8.x / 10 (X86/X64) (Windows in-box driver)
• Support Linux 2.6.31 or later (Linux OS already implemented USB3.2 driver)
Package Contents
• 1 × PCI Express to USB3.2 Type-CHost ControllerCard
• 1 × User Manual
• 1 × Low Profile Bracket
