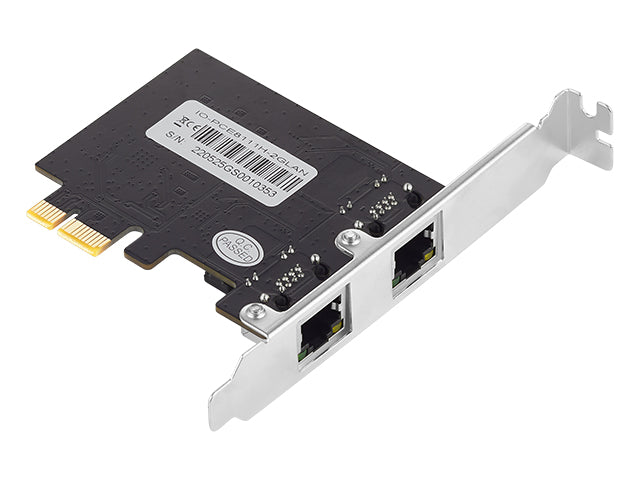

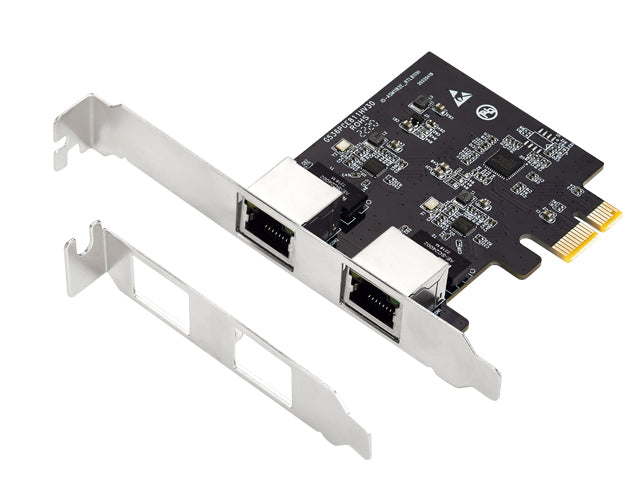

Lekuo 2-Port PCIe to 1G Network Card with RTL8111H Chip
Upgrade your network connectivity with this professional-grade dual-port gigabit ethernet controller card. Powered by the reliable RTL8111H chipset, this PCIe network adapter delivers high-speed 1000Mbps performance for servers, desktops, and NAS systems.
✨ Key Highlights

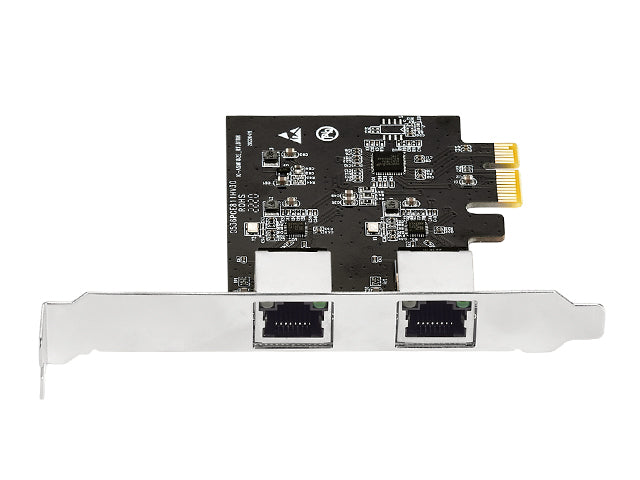

- 🔌 Dual RJ45 Ports - Simultaneous network connections
- ⚡ RTL8111H Chipset - Stable, high-performance networking
- 🚀 1000Mbps Speed - Backward compatible to 10/100BASE-T
- 🔧 Universal Compatibility - PCIe x1/x4/x8/x16 slots
- 📦 Low-Profile Bracket - Included for compact builds
📋 Technical Specifications
| Model | IO-PCE8111H-2GLAN |
| Chipset | RTL8111H |
| Input Interface | PCIe x1 |
| Output Interface | 2 × RJ45 |
| Transmission Rate | 1000Mbps (1Gbps) |
| Bus Type | PCIe x1, x4, x8, x16 |

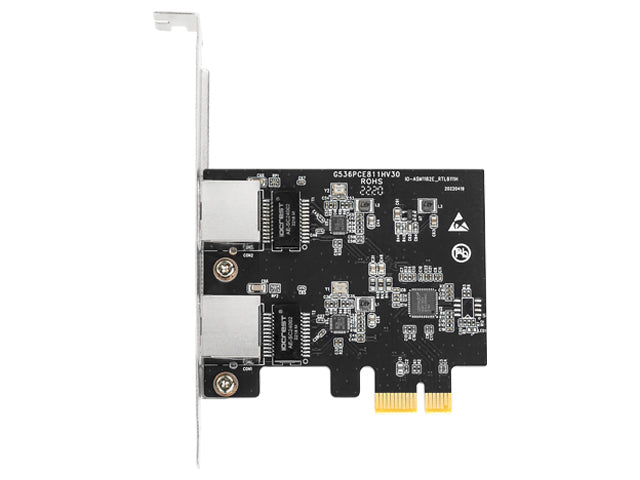

| Product Dimensions | 65.9 × 75 × 1.6mm |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 65°C |
⚙️ Advanced Networking Capabilities
🔗 Connectivity
- 1-Lane 2.5Gbps PCI Express Bus
- Integrated 10/100/1000M transceiver
- Backward compatible to 10/100BASE-T
- Supports Giga Lite (500M) mode
🛡️ Reliability
- Hardware ECC (Error Correction)
- Hardware CRC (Cyclic Redundancy Check)
- Pair swap/polarity/skew correction
- Crossover Detection & Auto-Correction
🚀 Performance
- PCI MSI and MSI-X support
- Quad-core Receive-Side Scaling (RSS)
- Jumbo frames up to 9K bytes
- Protocol Offload (ARP & NS)
📡 Standards
- IEEE 802.1Q VLAN tagging
- IEEE 802.3az-2010 (EEE)
- Full Duplex flow control (IEEE 802.3x)
- IEEE 802.1P layer 2 Priority Encoding
💻 System Compatibility
Compatible with Windows, Linux, and DOS operating systems:
ME, 98SE, 2000, XP, Vista, 7, 8, 10, 11
2003, 2008, 2012, 2016, 2019
All major distributions
DOS systems supported
🎯 Ideal Applications
- 🖥️ Desktop computers requiring dual network connections
- 🏢 Server systems and workstations
- 💾 NAS (Network Attached Storage) devices
- 🔄 Network equipment upgrades
- 🌐 Multi-network environment setups

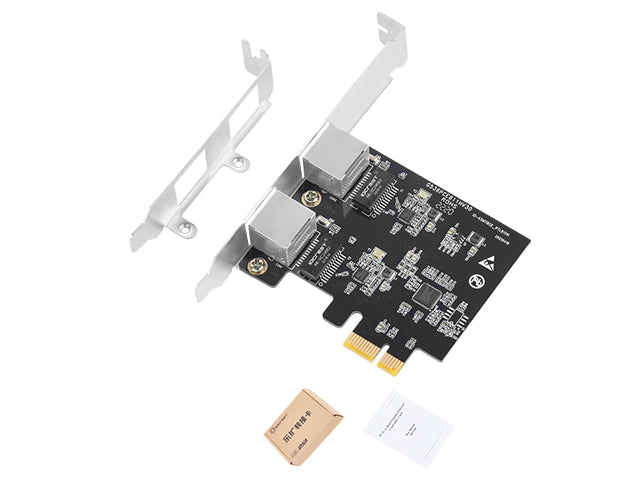

📦 Package Contents
- ✅ 1 × PCI-Express 1G Dual-Port Network Card
- ✅ 1 × Low Profile Bracket
- ✅ 1 × User Manual
❓ Frequently Asked Questions
Q: Will this card work in a PCIe x16 slot?
A: Yes! This PCIe x1 card is fully compatible with x1, x4, x8, and x16 slots. You can install it in any available PCIe slot on your motherboard.
Q: Do I need to install drivers for Windows 10/11?
A: For optimal performance, we recommend downloading and installing the latest driver from our driver package.
Q: Can both ports be used simultaneously?
A: Absolutely! Both RJ45 ports can operate simultaneously at full 1000Mbps speed, making this ideal for network bridging, failover configurations, or connecting to multiple networks.
Q: Is the low-profile bracket included?
A: Yes! The package includes both standard and low-profile brackets, making it compatible with full-size towers and compact/slim cases.
Q: Does this support Linux?
A: Yes! The RTL8111H chipset has native support in most Linux distributions (kernel 2.6+). No additional drivers are typically required for Linux systems.
Q: What's the difference between this and onboard ethernet?
A: This card provides two additional gigabit ethernet ports, ideal when your onboard port fails, you need network redundancy, or require separate networks (e.g., one for LAN, one for WAN/management).
Q: Can I use this for link aggregation (bonding/teaming)?
A: Yes! This card supports network bonding/teaming in Windows, Linux, and other operating systems, allowing you to combine both ports for increased bandwidth or redundancy (requires switch support).
Q: Does it support jumbo frames?
A: Yes! This card supports jumbo frames up to 9K bytes (9000 MTU), which can improve network performance for large file transfers, especially in NAS and server environments.
Q: What power does this card require?
A: The card is powered entirely through the PCIe slot and requires no additional power connectors. It's energy-efficient and supports IEEE 802.3az Energy Efficient Ethernet (EEE).
Q: Is this suitable for virtualization environments (ESXi, Proxmox)?
A: Yes! The RTL8111H chipset is widely supported in virtualization platforms including VMware ESXi, Proxmox, and Hyper-V, making it excellent for homelab and enterprise virtualization setups.
Note: Package contents may vary depending on country/market.
