Driver download address:http://www.mmui.com.cn/data/upload/image/RTL8111.zip
Model：IO-PCE8111H-4GLAN
Input Interface：PCIe

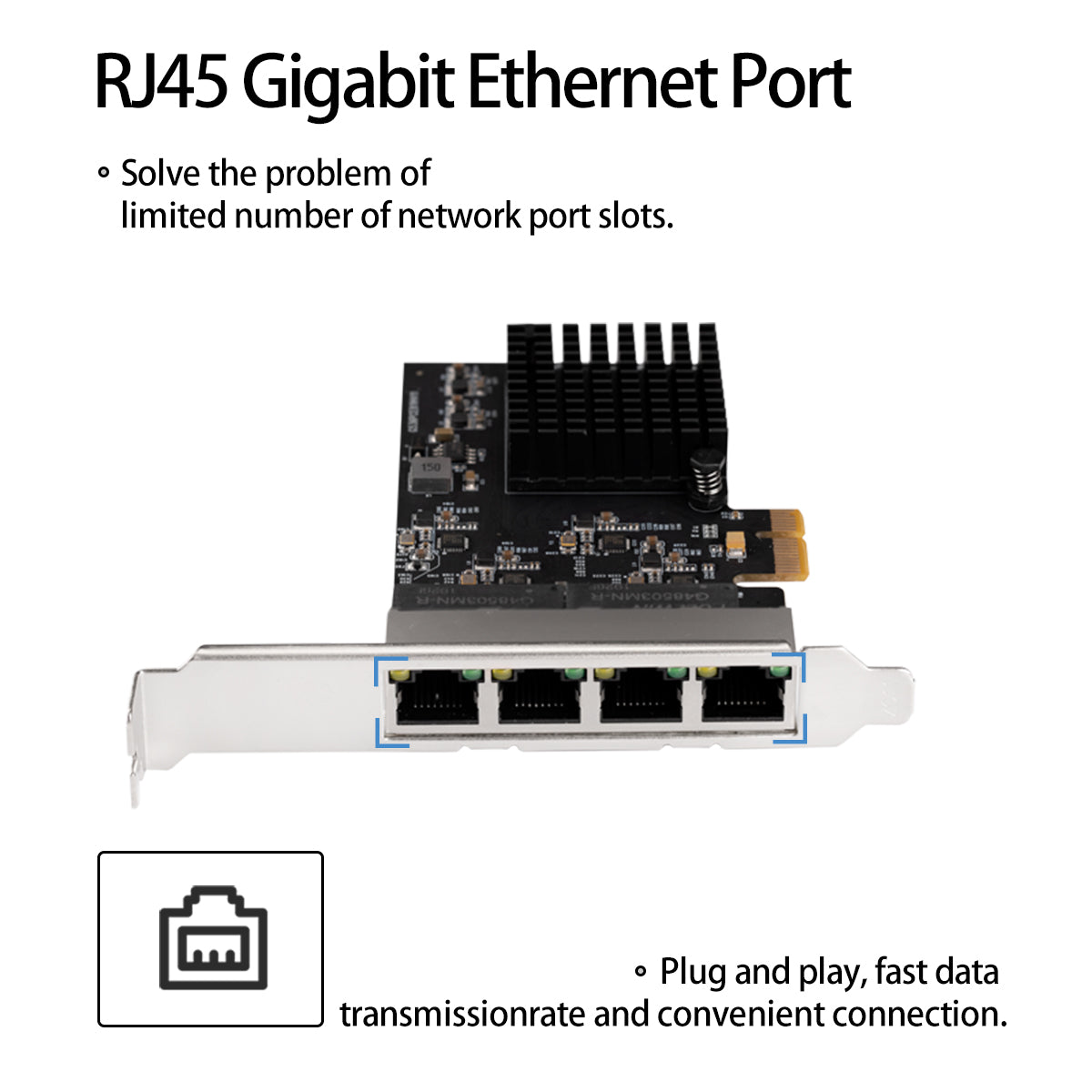

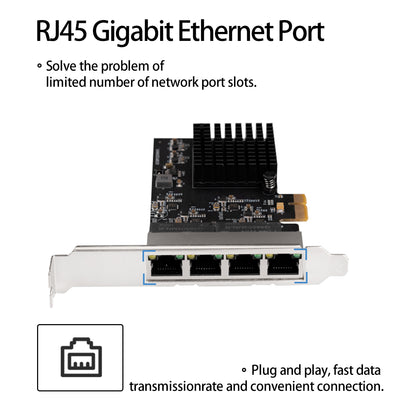

Output Interface：RJ45
Motherboard Slot：PCIe
Transmission Rate：10/100/1000Mbps
Auxiliary Accessories：Low profile bracket

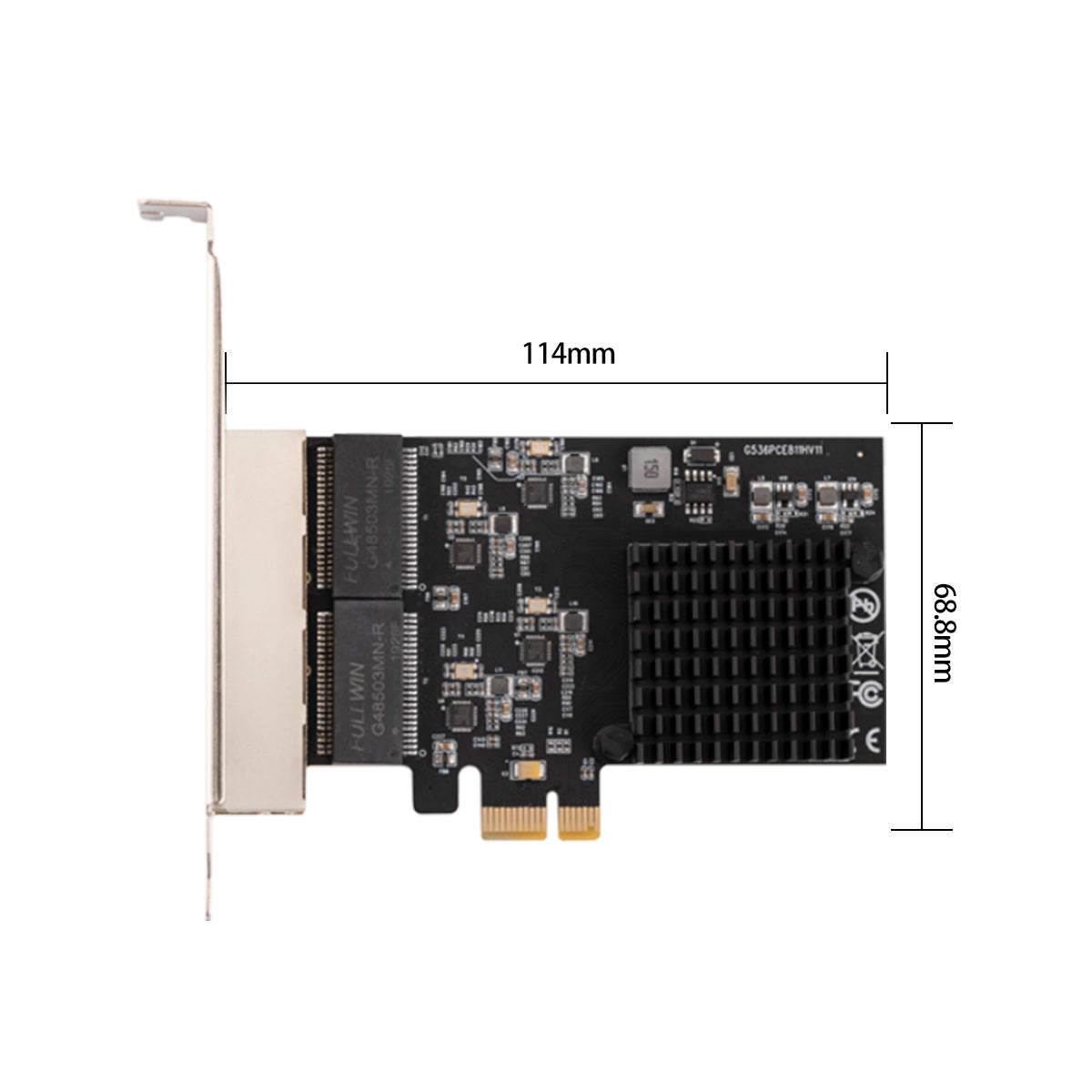

Product Size：114x68.8mm
Introduction

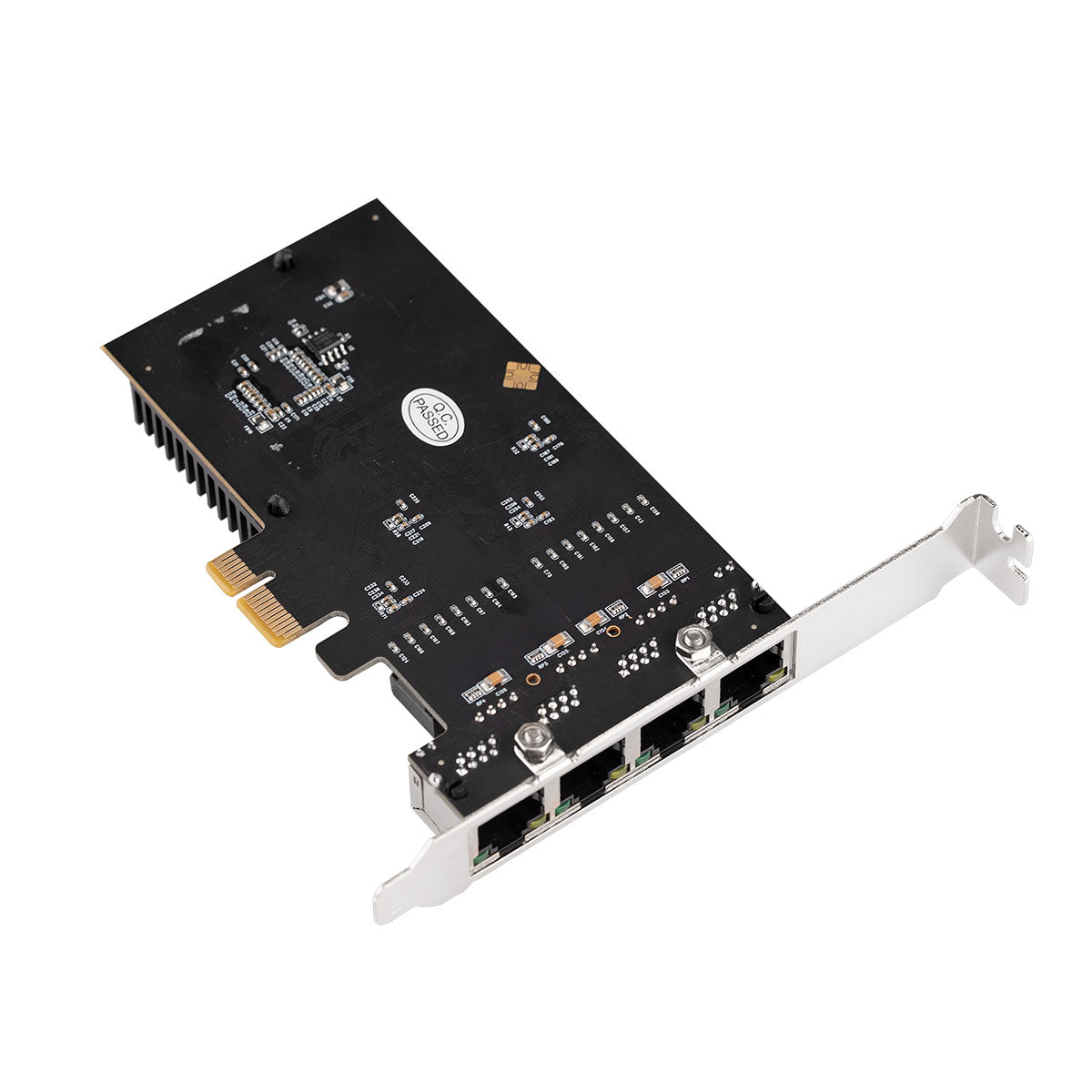

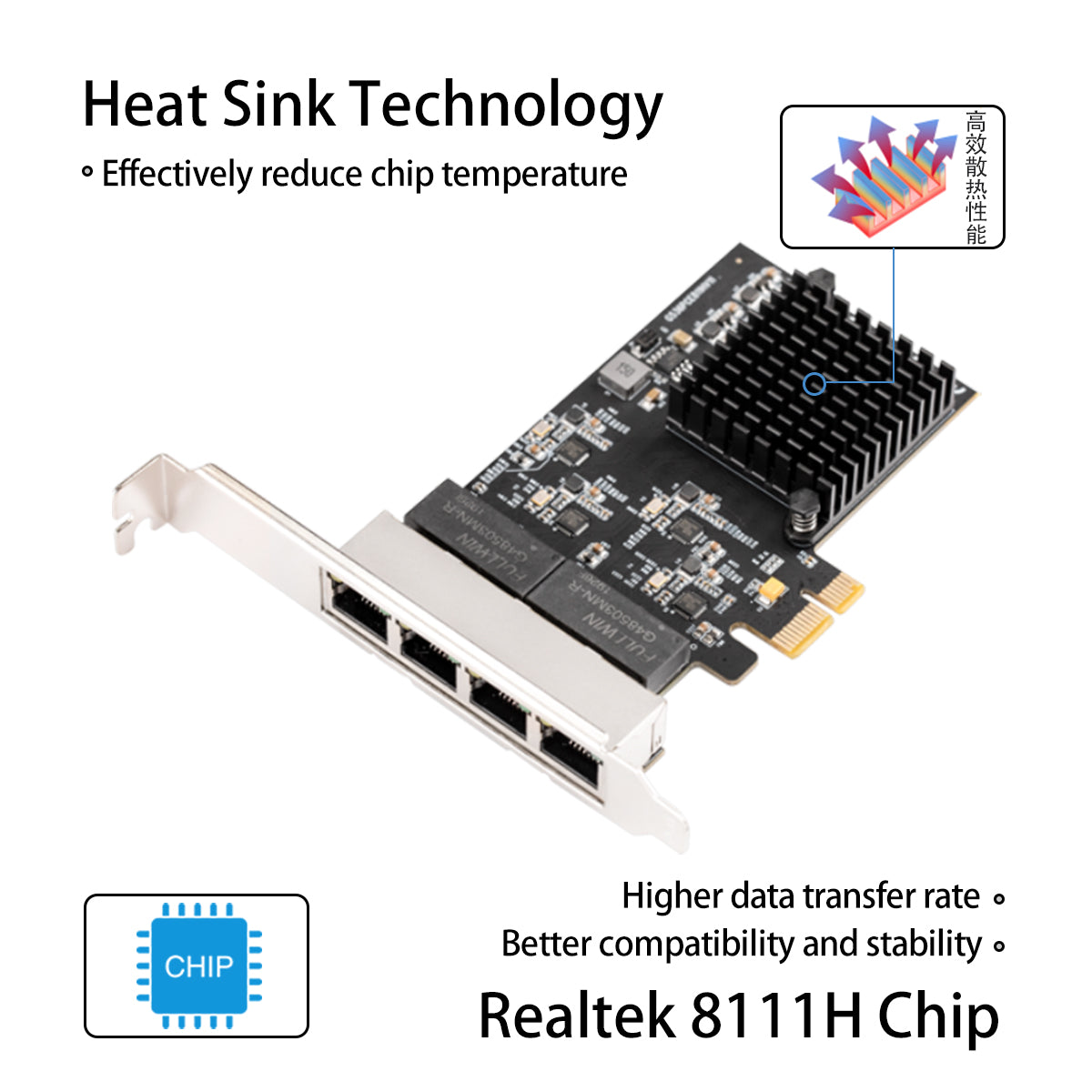

This PCI-Express RTL8111 Four Gigabit Ethernet controller card is a high performance 10/100/1000 BASE-T Ethernet LAN controller, supports the PCI Express 1.1 bus interface for host communications with power management, and is compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space, and is perfectly to convert the PCI-Express interface into Four Gigabit Ethernet ports.
Specification
•Integrated 10/100/1000M transceiver
•Supports Giga Lite (500M) mode
•Auto-Negotiation with Next Page capability

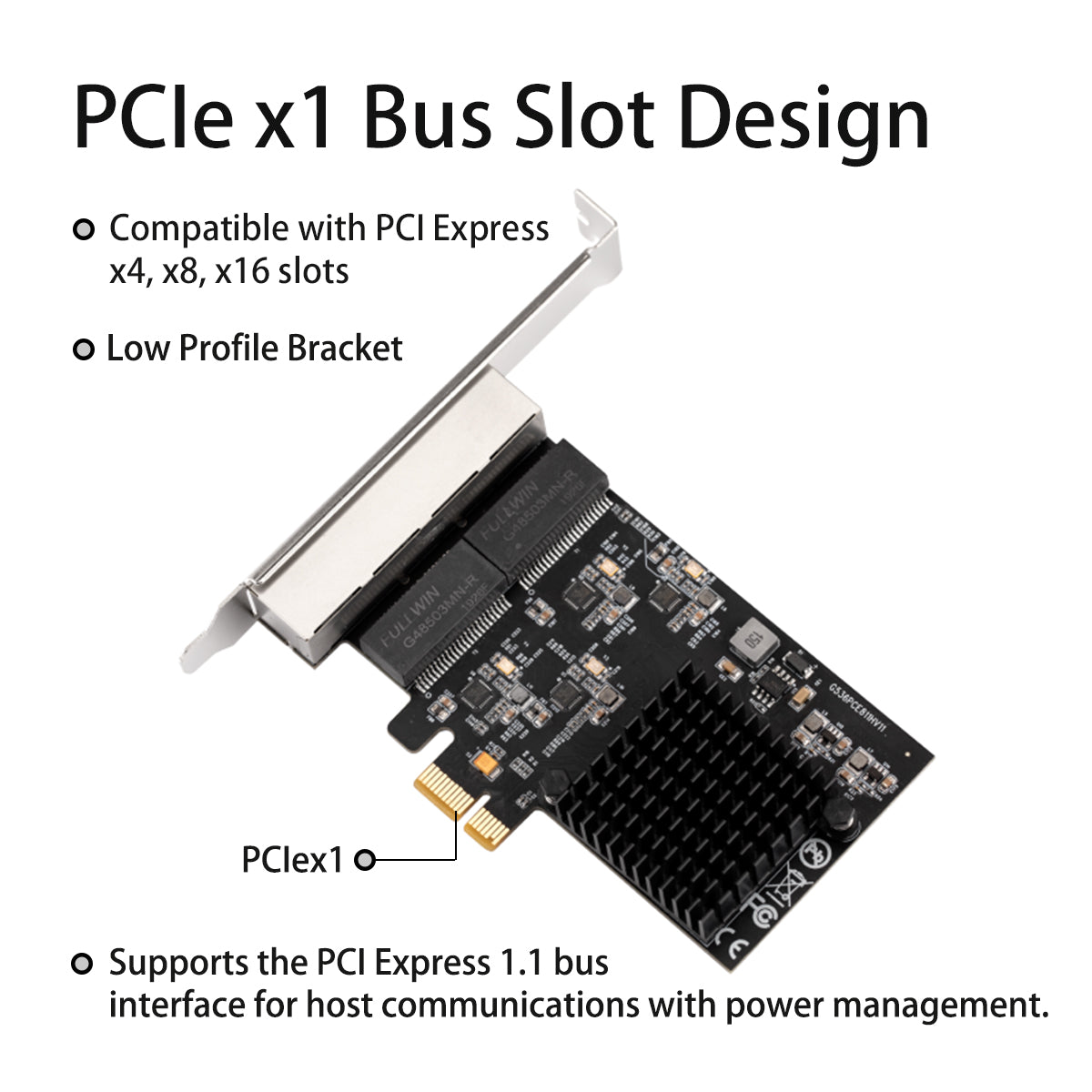

•Supports PCI Express 1.1
•Supports pair swap/polarity/skew correction
•Crossover Detection & Auto-Correction
•Supports 1-Lane 2.5Gbps PCI Express Bus
•Supports hardware ECC (Error Correction Code) function
•Supports hardware CRC (Cyclic Redundancy Check) function
•Transmit/Receive on-chip buffer support
•Supports PCI MSI (Message Signaled Interrupt) and MSI-X
•Fully compliant with IEEE802.3, 802.3u and 802.3ab
•Supports IEEE 802.1P layer 2 Priority Encoding
•Supports 802.1Q VLAN tagging
•Supports IEEE 802.3az-2010(EEE)
•Supports Full Duplex flow control (IEEE.802.3x)
•Supports jumbo frame to 9K bytes
•Supports quad core Receive-Side Scaling(RSS)
•Supports Protocol Offload(ARP&NS)
•Supports Microsoft WPI (Wake Packet Indication)
•Supports ECMA-393 ProxZzzy Standard for sleeping hosts
System Requirement
•Windows 20000, ME, 98SE, Windows Server 2003/XP/Visit/ 2008/7 /8 /10 32-/64-bit,Linux, MAC OS 10.4 or above and DOS.
Package Content
•1 x PCI-Express Four Gigabit Ethernet controller card
•1 x User Manual
•1 x Low Profile Bracket
Note: Contents may vary depending on country and market.
