Driver download address:http://www.mmui.com.cn/data/upload/image/SDI.zip
Model：IO-PCE6504-4P
Input Interface：PCIe
Output Interface：SDI
Motherboard Slot：PCIe X4、X8、X16
Auxiliary Accessories：Driver CD

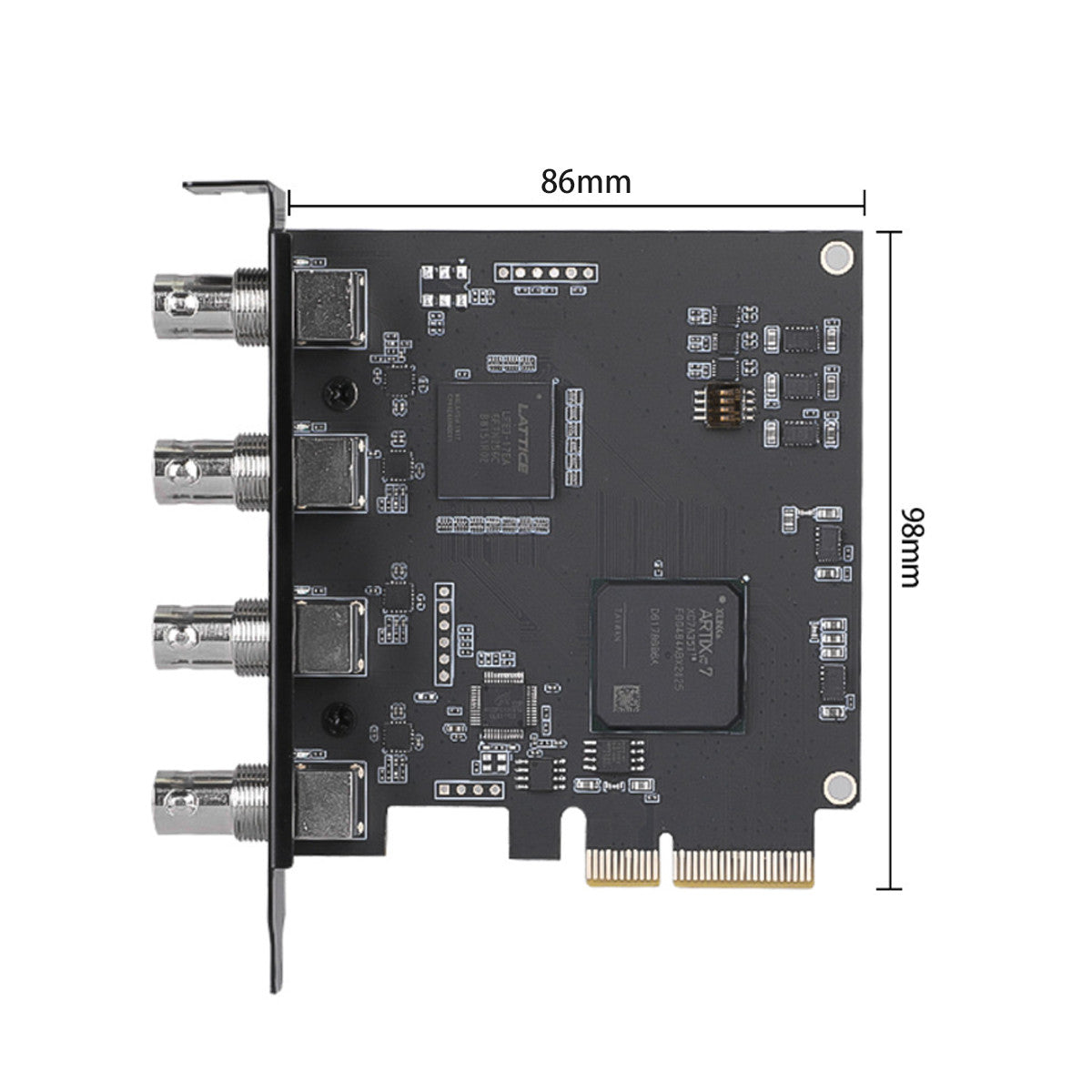

Product Size：86x98mm
Feature
• Host interface: PCI-Expressx4
• Input interface: 4 SDI interfaces
• 4 channel SDI (HD and 3G)
• It is a PCI Express capture card that supports SDI formats in HD up to 1080p60.
• You get the flexibility of 4 separate capture cards in one.
• It's completely customizable so it's perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more.
• Can be installed in Windows based workstations and servers, giving you ultimate flexibility.
• high quality connections so you get pristine video and audio along with compatibility for working with the widest range of professional SDI equipment.
System Requirements
•Windows
Package Contents

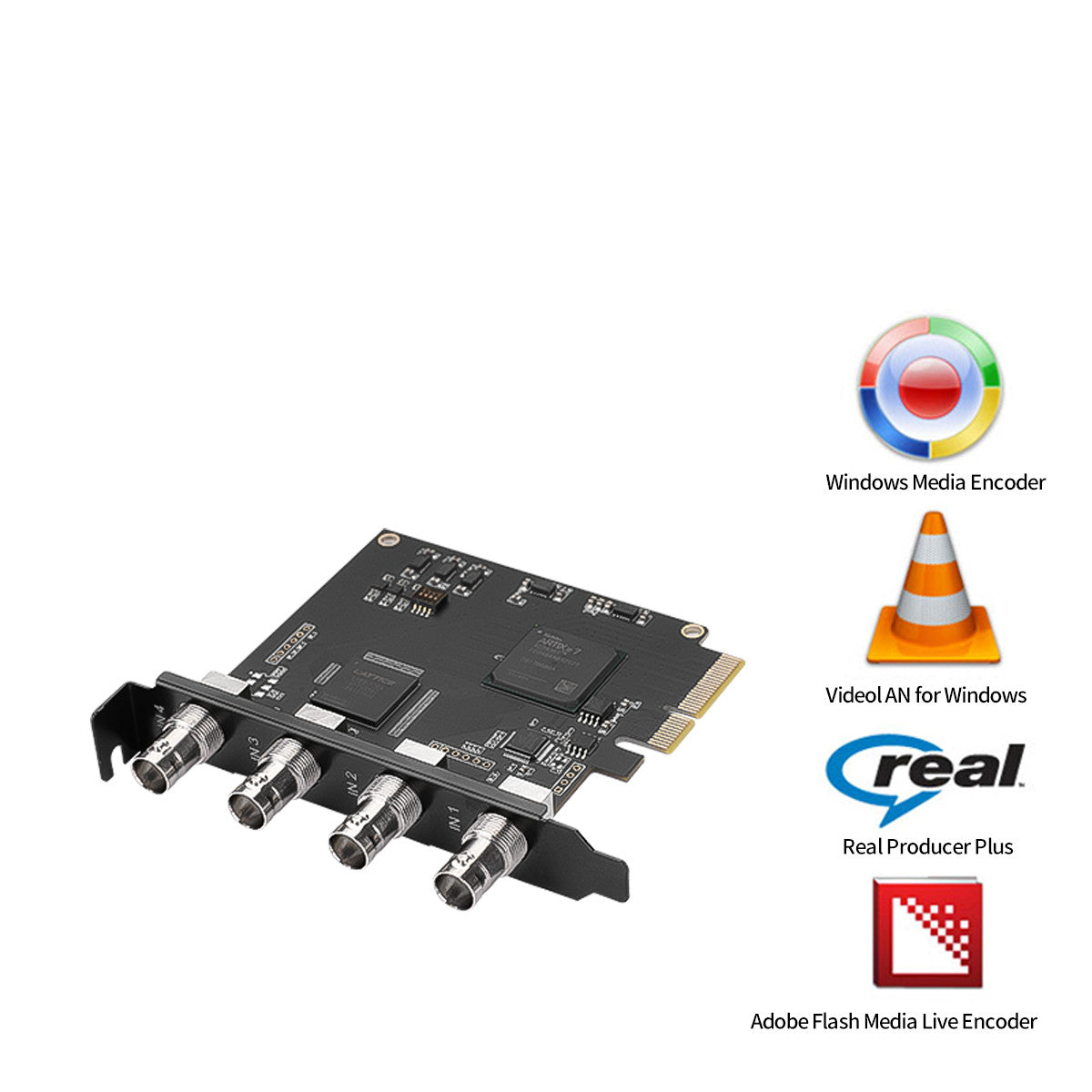

•1 x PCIe to 4 Port SDI Capture Card
•1 x User Manual
