๐ Professional PCIe SATA RAID Controller
Engineered for enterprise-grade performance, this dual-port SATA 6Gb/s RAID controller delivers exceptional storage expansion capabilities for servers, workstations, and high-performance computing environments.
Auto-negotiation 1.5/3/6 Gbps
Connect 2 devices simultaneously
RAID 0, RAID 1, SPAN support
๐ Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | IO-PCE1061R-2IR |
| Interface | PCI Express 2.0 |
| SATA Ports | 2 x SATA III Ports |
| Data Transfer Rate | 1.5Gbps / 3Gbps / 6Gbps (Auto-Negotiation) |
| RAID Support | RAID 0, RAID 1, SPAN (via GPIO or GUI Utility) |
| Programming Interface | Supports AHCI and IDE modes |
| Command Queue | Native Command Queue (NCQ) Supported |
| Port Multiplier | Supports Command-based Switching |
| S.M.A.R.T | Supported |
| Rebuild Function | Background / Offline / Auto-Rebuild |
| System Compatibility | Windows 8.1/7/Vista, Server 2012/2008, Linux |
| Weight | 0.2 kg (0.44 lbs) |
โ๏ธ Advanced Features
- โ Industry Compliance: PCI Express Base Specification Rev. 2.0, Serial ATA AHCI Spec. Rev.1.3, Serial ATA Revision 3.2
- โ Serial ATA Features: 2 ports Serial ATA PHY with 1.5/3.0/6.0 Gbps speed negotiation
- โ SATA PHY Support: 1i/1m/2i/2m/3i configurations
- โ Embedded Hardware RAID Engine: Dedicated RAID processing for optimal performance
- โ RAID Mode Changeable: Controlled via GUI utility for easy configuration
- โ RAID 0: High performance for data transmission with striping
- โ Automatic Rebuild: Supports high-performance offline and background rebuild
- โ Native Command Queue (NCQ): Enhanced performance through optimized command ordering

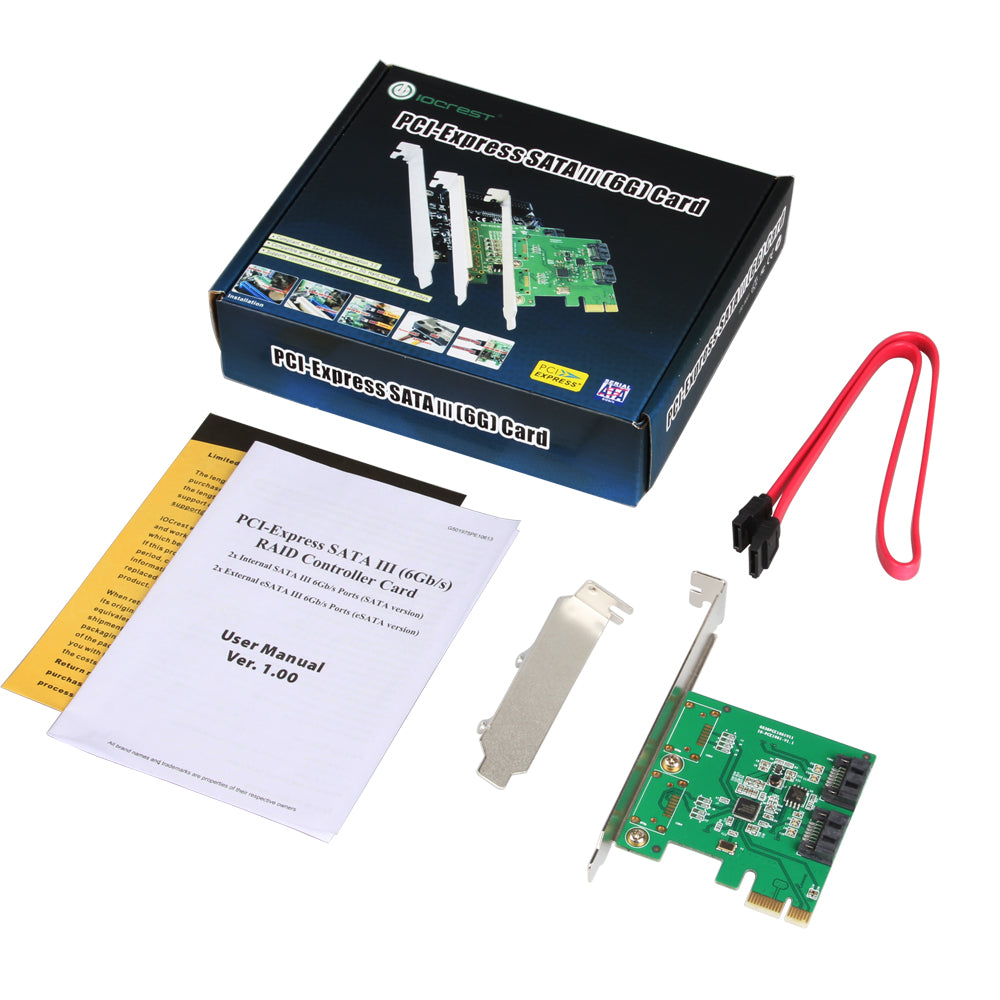

๐ฆ Package Contents
- ๐พ RAID Controller Card - SATA III 2-port PCI-Express Controller
- ๐ SATA Cable - High-quality connection cable
- ๐ User Manual - Detailed installation guide
Note: eSATA Card version does not include SATA Cable
๐ Shipping & Warranty
๐ Global Shipping
- โ Free worldwide shipping
- โ Real-time tracking provided
- โ Secure packaging guaranteed
๐ก๏ธ Quality Assurance
- โ 1-year manufacturer warranty
- โ 30-day money-back guarantee
- โ Technical support included
๐ฅ Driver & Software Download
Important: For optimal performance and compatibility, please download and install the latest drivers and management software before first use.
โ Frequently Asked Questions
Q1: What RAID configurations does this card support?
A: The IO-PCE1061R-2IR supports RAID 0 (striping for performance), RAID 1 (mirroring for redundancy), and SPAN (JBOD - Just a Bunch of Disks). You can configure these modes through the included GUI utility or GPIO settings.
Q2: Is this card compatible with both HDD and SSD drives?
A: Yes! This RAID controller is fully compatible with both traditional HDDs and modern SSDs. It supports SATA III 6Gb/s speeds and auto-negotiates with 1.5Gb/s and 3Gb/s devices for maximum compatibility.
Q3: Do I need to install drivers before using this card?
A: Yes, for optimal performance and full feature access, we strongly recommend downloading and installing the latest drivers from the link provided above before first use. The card supports Windows (8.1/7/Vista), Windows Server (2012/2008), and Linux operating systems.
Q4: Will this card work in a low-profile or small form factor (SFF) case?

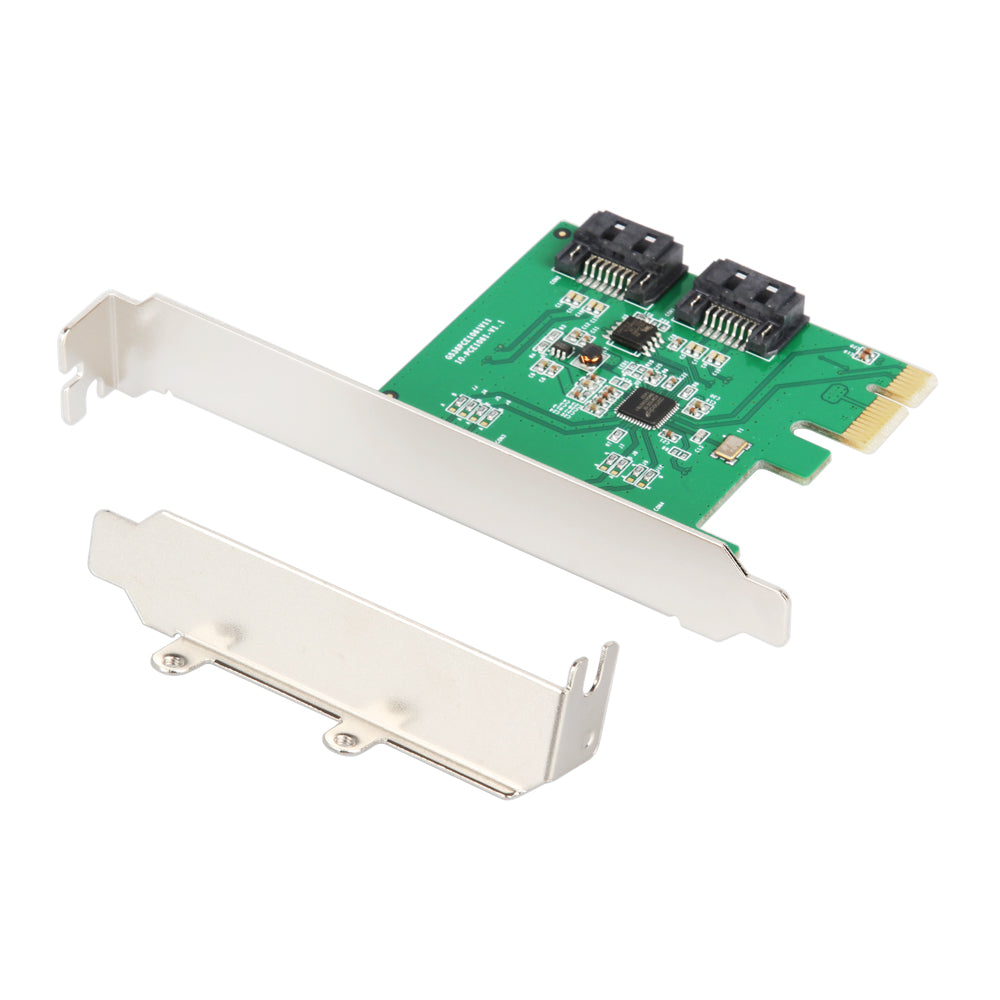

A: Yes! The package includes a low-profile bracket, making it compatible with both standard and compact system builds. You can easily swap the bracket to fit your specific case requirements.
Q5: What PCIe slot does this card require?
A: This card uses a PCI Express 2.0 interface and will work in any available PCIe x1, x4, x8, or x16 slot. It's backward and forward compatible with PCIe 1.0, 3.0, and 4.0 slots.
Q6: Does the card support hot-swapping of drives?
A: The card supports AHCI mode which enables hot-swap capability at the hardware level. However, hot-swapping functionality also depends on your operating system configuration and whether your drive enclosure supports it.
Q7: Can I use this card to boot my operating system?
A: Yes, the card supports bootable RAID arrays. You can install your operating system on drives connected to this controller. Make sure to configure your BIOS/UEFI to boot from the PCIe RAID controller.
Q8: What is the difference between RAID 0 and RAID 1?
A: RAID 0 (striping) combines both drives for maximum speed and capacity but offers no redundancy - if one drive fails, all data is lost. RAID 1 (mirroring) duplicates data across both drives for redundancy - if one drive fails, your data remains safe on the other drive, but you only get the capacity of one drive.
Q9: Does the card include SATA cables?
A: Yes, the standard package includes 1 SATA cable. Please note that the eSATA version does not include SATA cables. You may need to purchase additional cables if connecting multiple drives.
Q10: What is S.M.A.R.T and why is it important?
A: S.M.A.R.T (Self-Monitoring, Analysis, and Reporting Technology) monitors drive health and predicts potential failures. This card fully supports S.M.A.R.T, allowing you to monitor your drives' condition and receive early warnings before drive failure occurs.
