Driver download address:http://www.mmui.com.cn/data/upload/image/RTL8125.zip

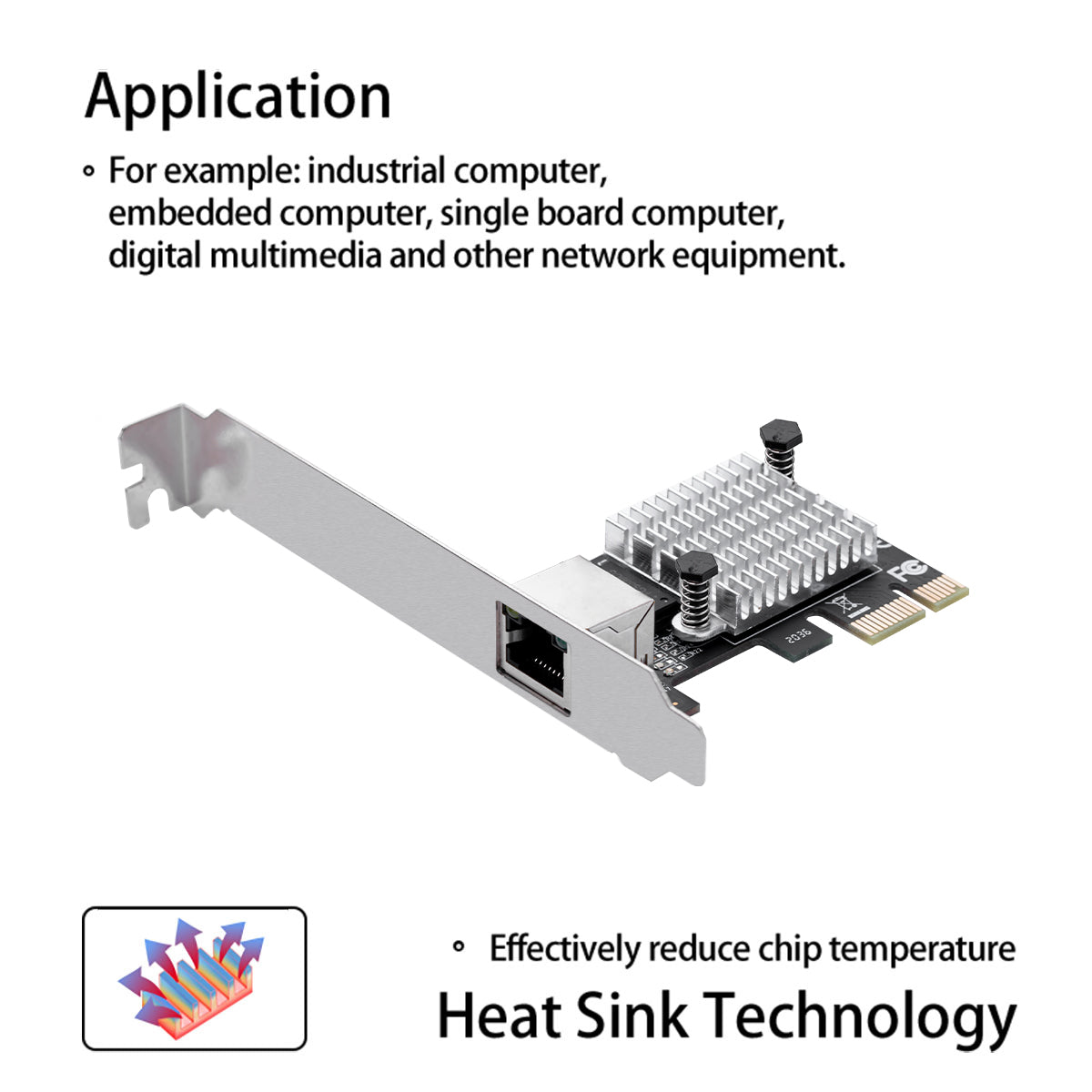

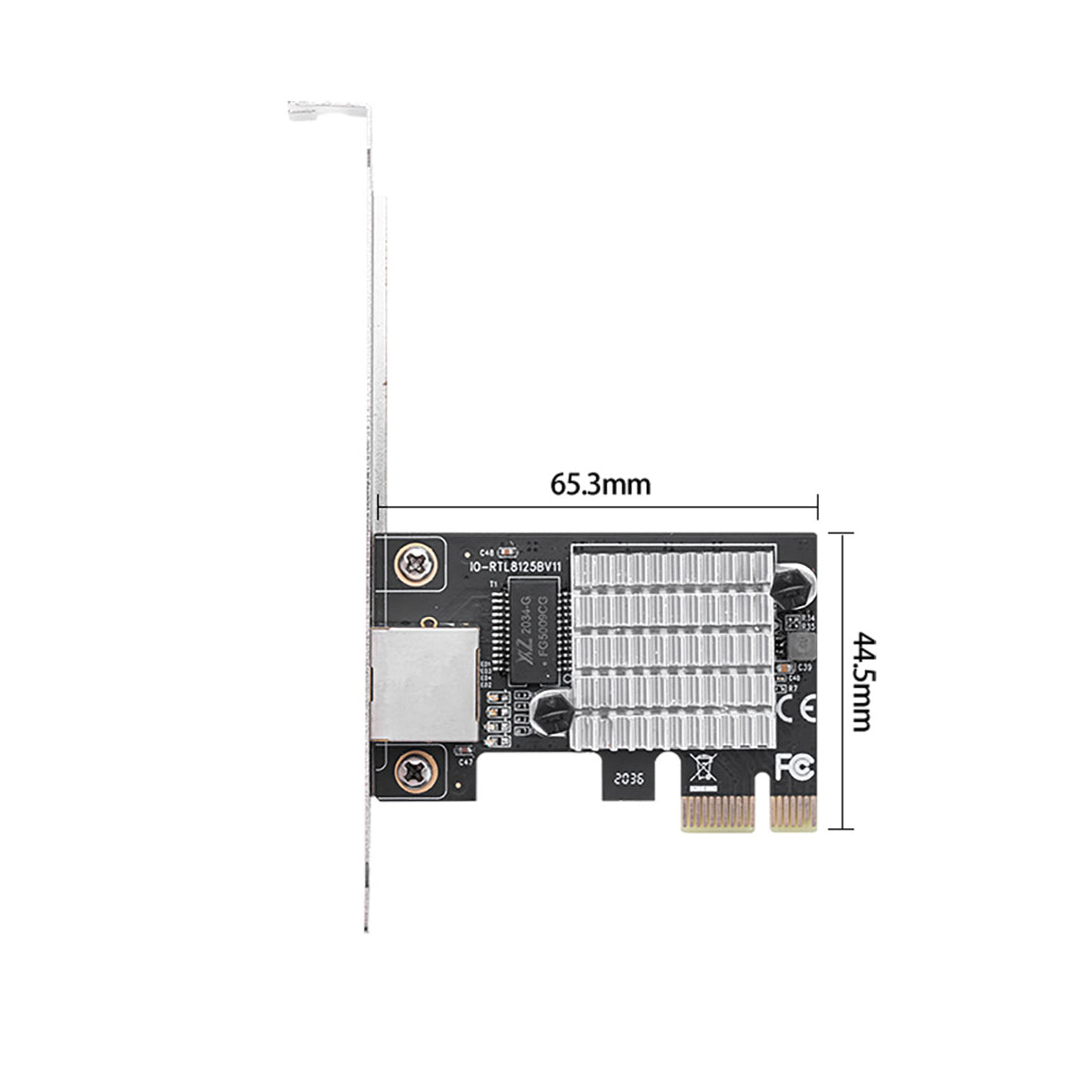

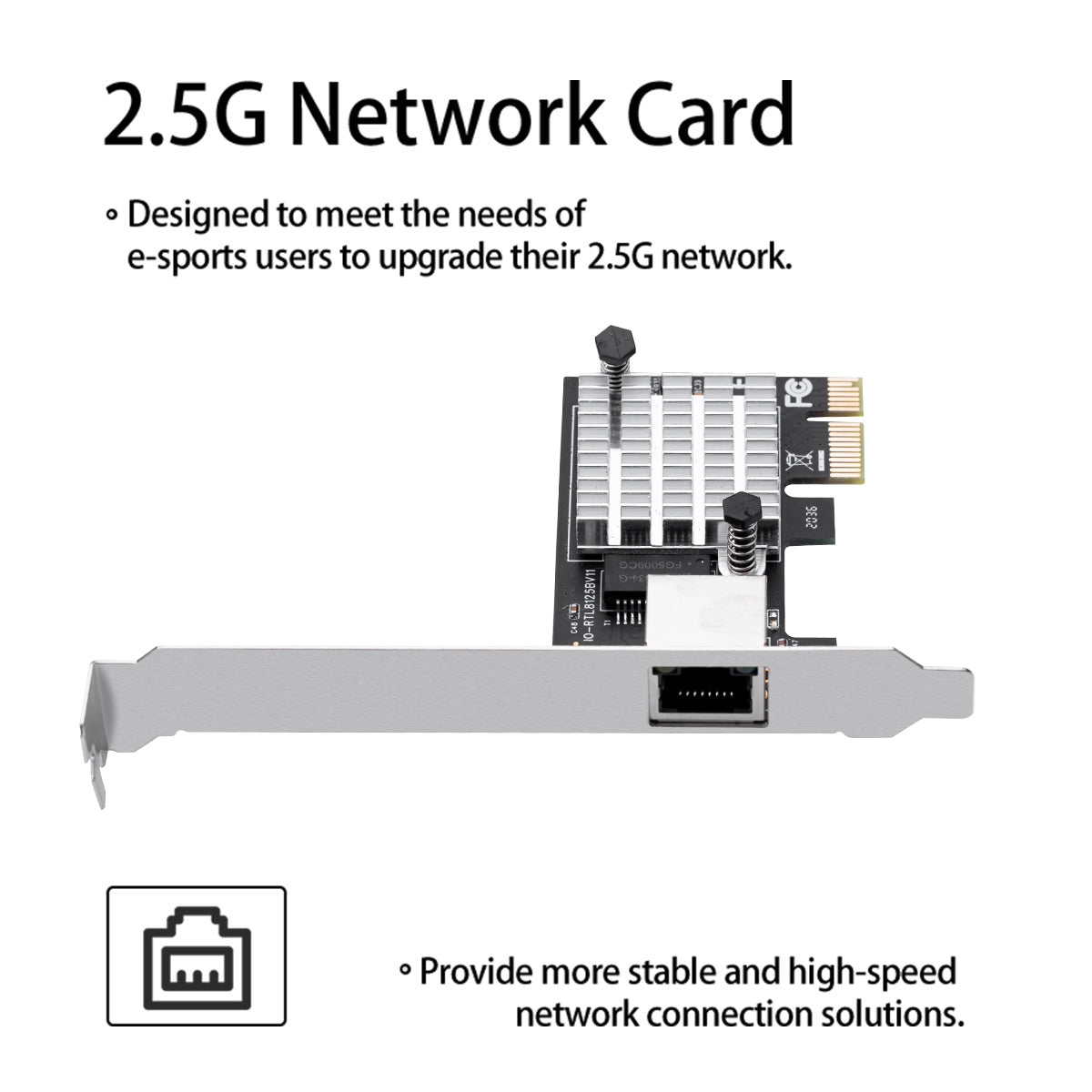

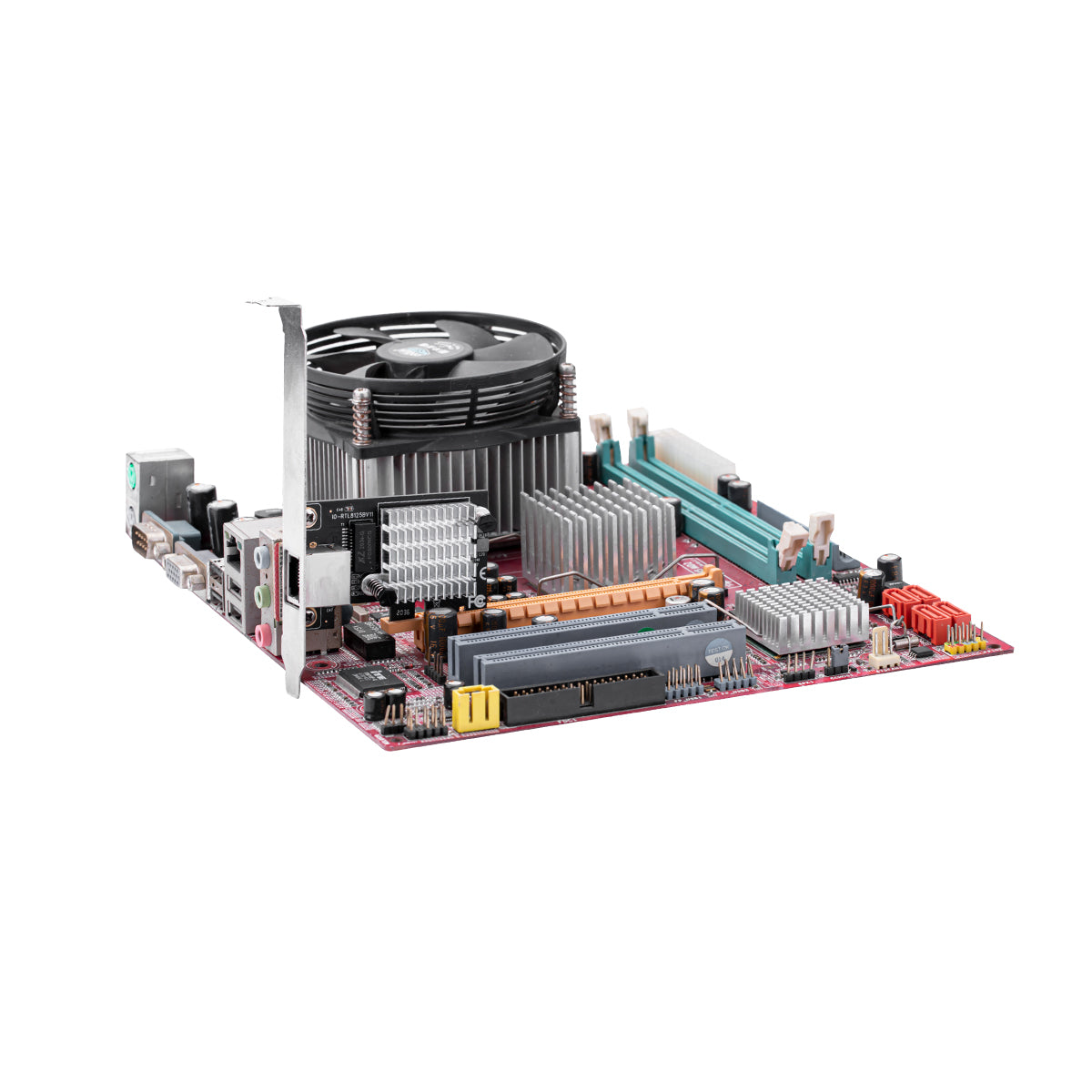

This card is a 2.5Gbps Ethernet PCI Express Card, which is specifically designed to plug into a desktop equipped with an available x1, x4, x8 or x16 PCI Express slot.
Model：IO-PCE8125B-GLAN
Input Interface：PCIe
Output Interface：RJ45

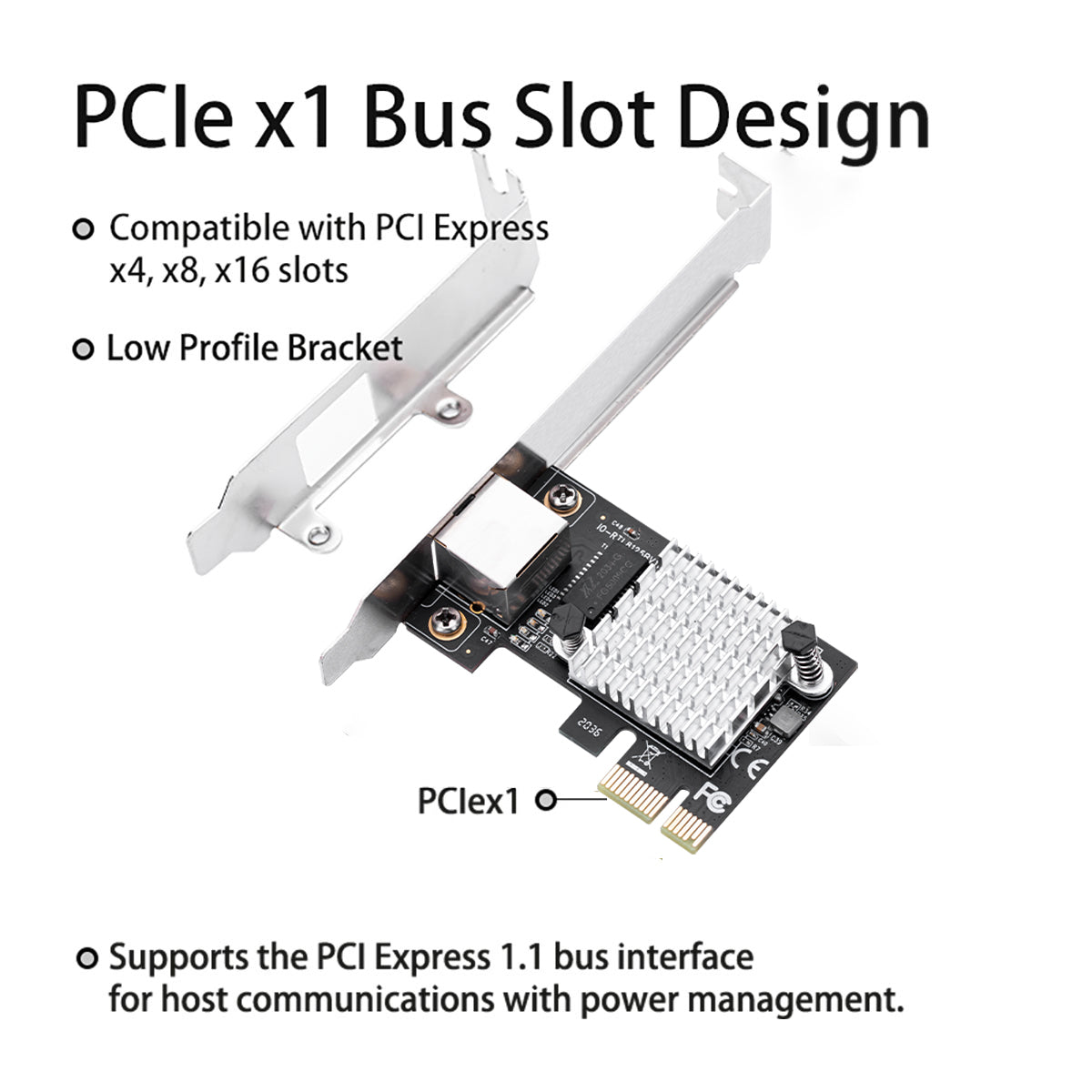

Motherboard Slot：PCIe x1, x2, x4, x8, x16
Transmission Rate：2.5G
Auxiliary Accessories：Low Profile Bracket
Features
• Integrated 10M BASE-T and 100/1000M/2.5G BASE-T 802.3 compatible transceiver
• Supports 2.5G Lite (1G data rate) mode
• Auto-Negotiation with Extended Next Page capability (XNP)
• Compatible with NBASE-TTM Alliance PHY Specification
• Supports PCI Express 2.1
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports 1-Lane 2.5/5Gbps PCI Express Bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Transmit/Receive on-chip buffer support
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Supports power down/link down power saving/PHY disable mode
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Supports LTR (Latency Tolerance Reporting)
• Wake-On-LAN and ‘RealWoW!’ Technology (remote wake-up) support
• Supports 32-set 128-byte Wake-Up Frame pattern exact matching
• Supports Microsoft WPI (Wake Packet Indication)
• Supports PCIe L1 substate L1.1and L1.2
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization
• Supports IEEE 802.1Qav credit-based shaper algorithm
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.1ad Double VLAN
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.3bz (2.5GBase-T)
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports jumbo frame to 16K bytes
System Requirements
• Windows OS
• Linux, MAC OS and DOS
• PCI Express-enabled system with an available PCI Express slot
Package Contents
• 1 x PCI-Express to 10 /100/1000M/2.5G Ethernet Card
• 1 x User Manual
• 1 x Low-profile bracket
Note: Contents may vary depending on country/market
