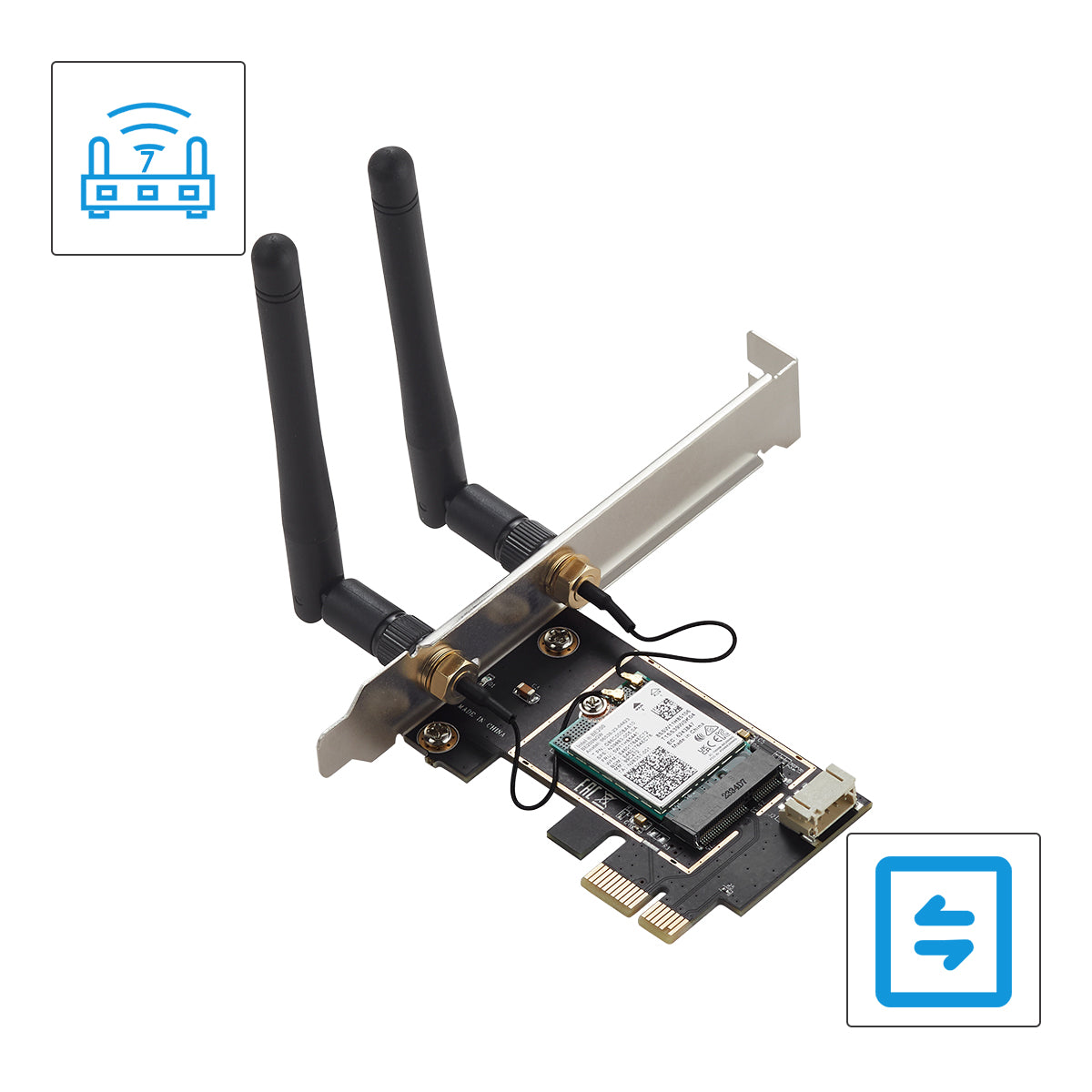

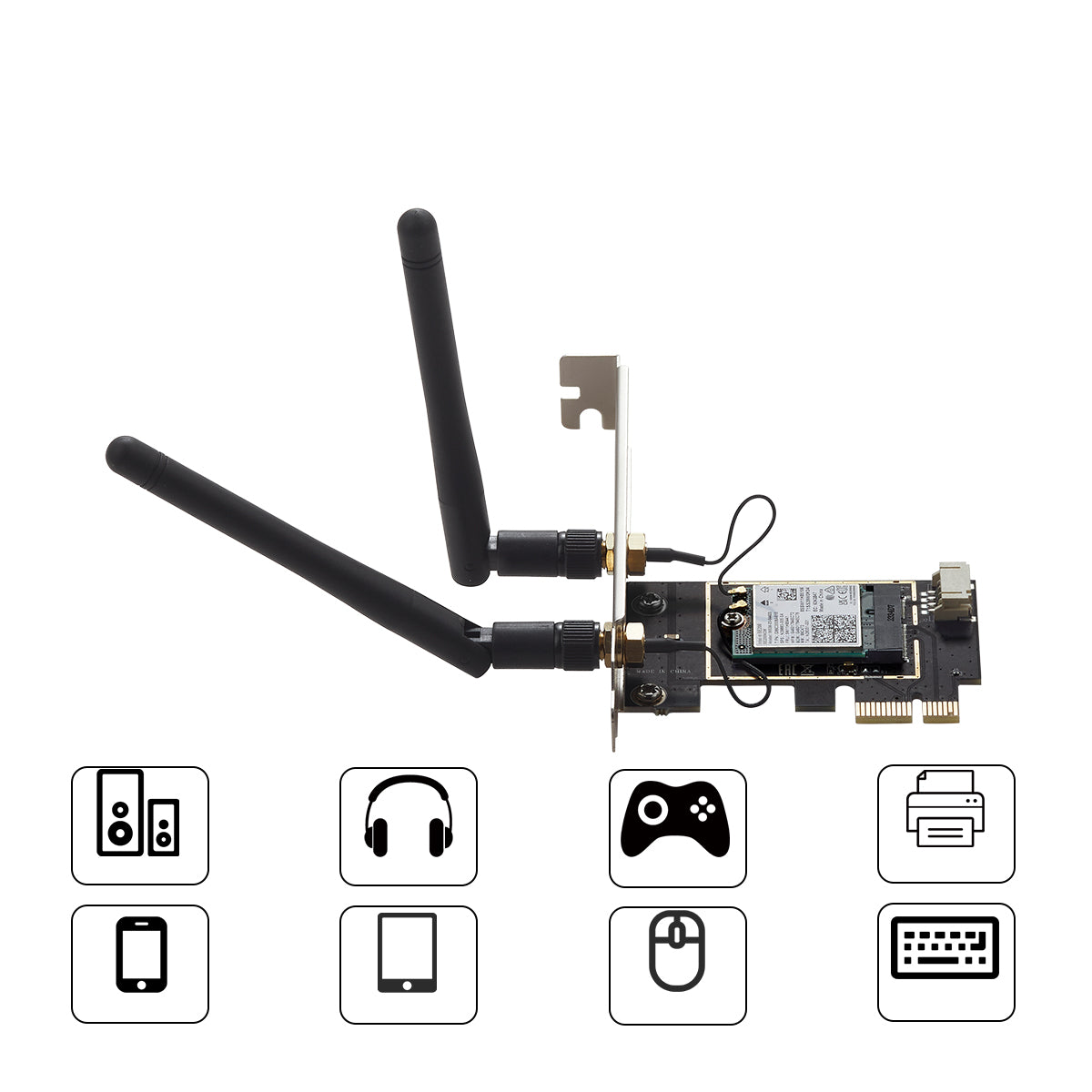

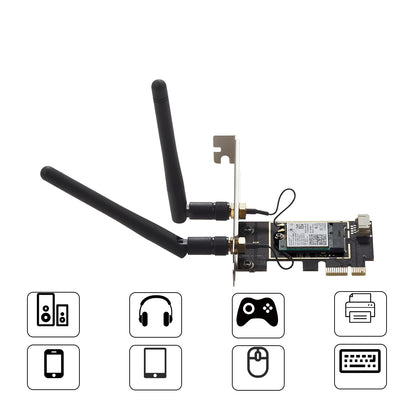

PCIe Network card with Wireless 802.11BE WIFI7 and Bluetooth 5.4,IO-PCE200-WB7

Model

IO-PCE200-WB7

Chip

Intel BE200

Input interface

PCIe

Motherboard Slot

PCIe x1, x4, x8, x16

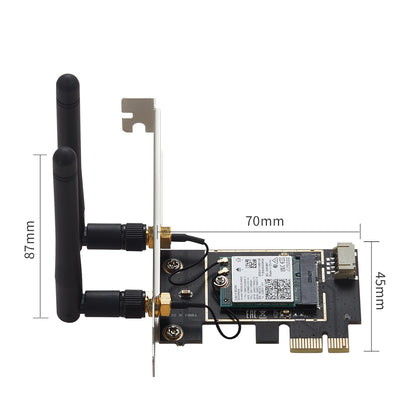

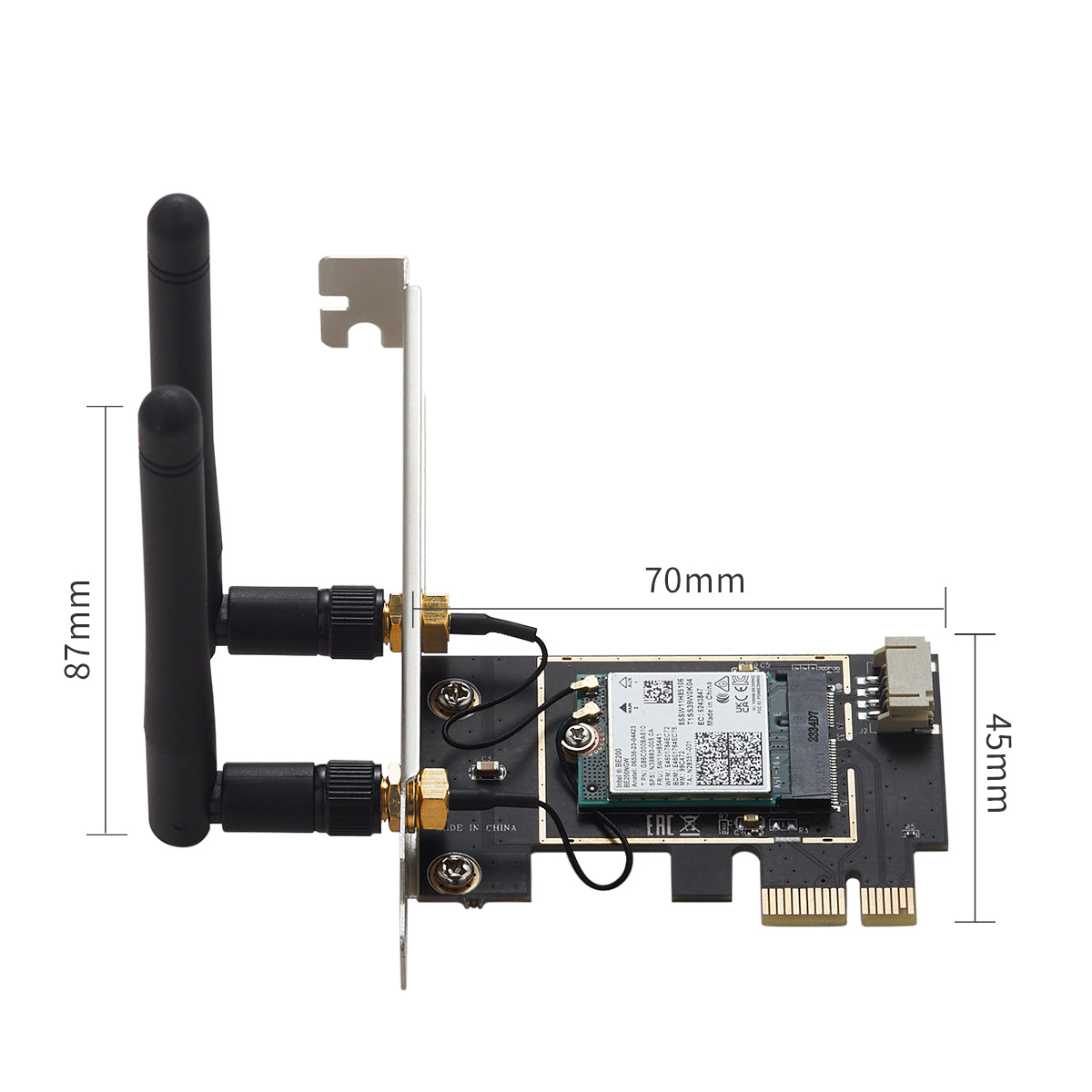

Product size

Product size: 70×45mm

Antenna length: 87mm

USB cable length: 300mm

Attribute

Details description

Transmission rate

Wi-Fi 7

• 6GHz band: 5800 Mbps

• 5GHz frequency band: 2400 Mbps

• 2.4GHz band: 574 Mbps

Bluetooth

Bluetooth® 5.4 (Supporting LE Audio)

Product characteristics

• Three-frequency concurrent (2.4GHz/5GHz/6GHz)

• Support Wi-Fi 4/5/6/6E/7 (IEEE 802.11a /b/g/n/ac/ax/be)

• PCIe 4.0 Gen4 (Minimum Gen3 support required)

• Support the energy-saving state of PCIe L1.2/L1.1

• Support Microsoft WPI (Wake-up Packet Indication)

• Bluetooth 5.4 (Supports remote wake-up and selective suspension)

Certification and Standards

• Wi-Fi CERTIFIED 7/6E/6/a/b/g/n/ac

• WPA3, PMF and WMM® energy-saving

• Wi-Fi Direct®, Wi-Fi Agile Multiband®

• Comply with IEEE 802.11-2020 and multiple amendments

Auxiliary accessories

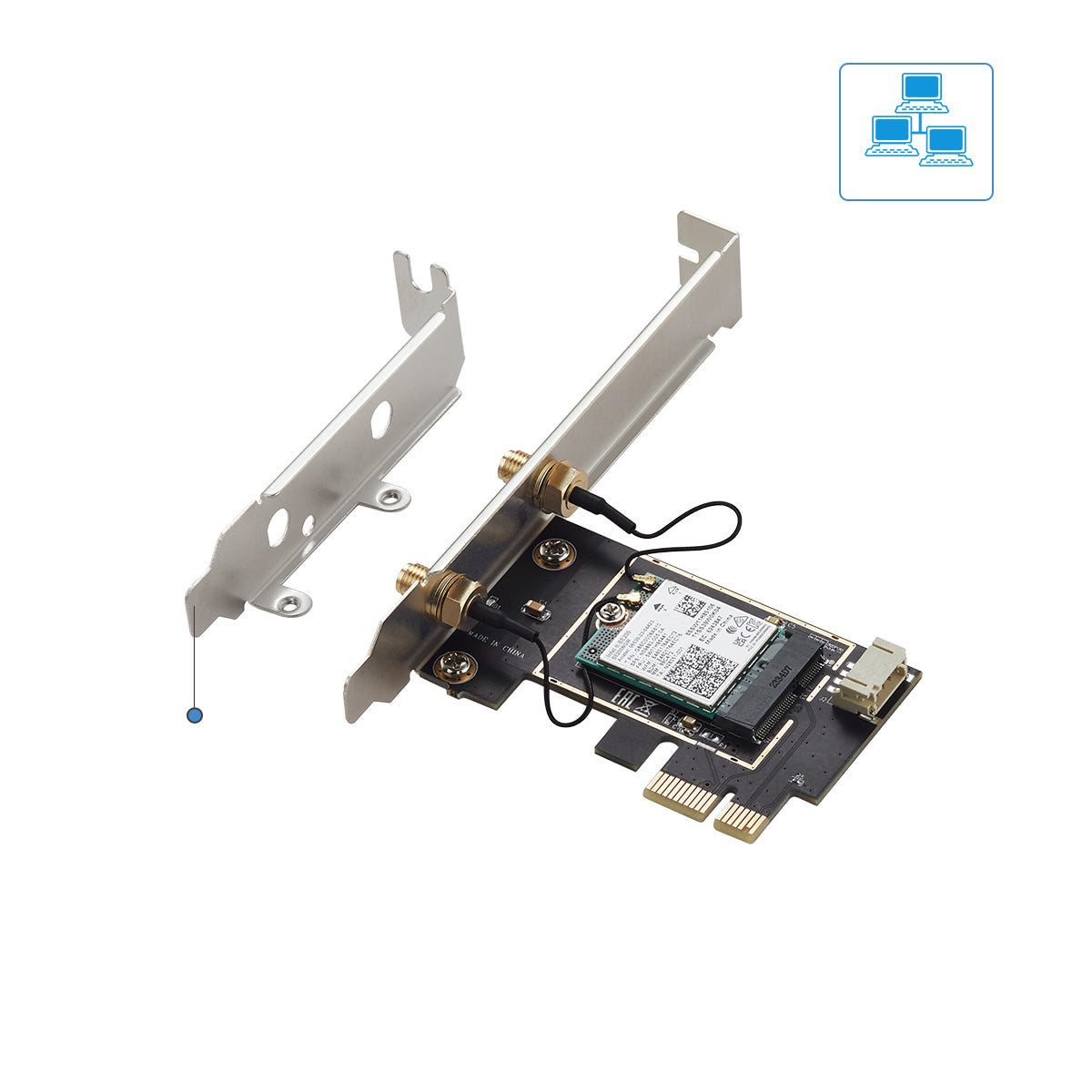

• Low Profile Bracket

System support

 • Windows 11、Microsoft Windows 10、Linux

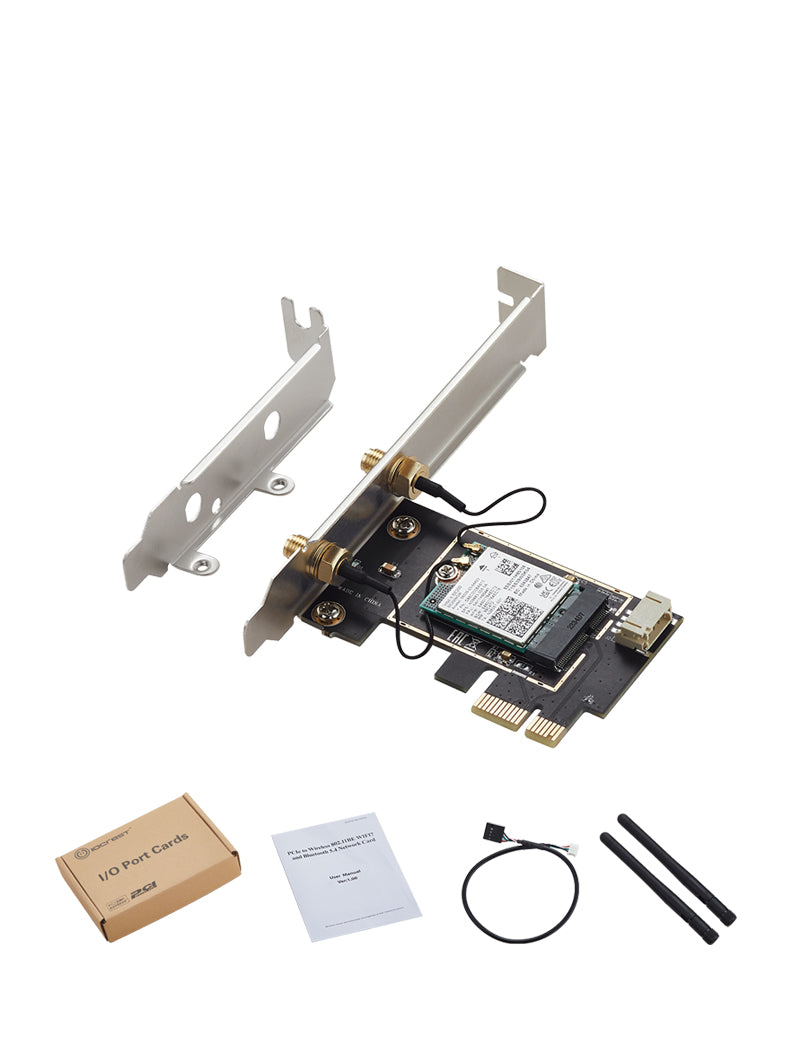

Packaging list

• Wi-Fi 7 PCIe network card ×1

• User Manual ×1

• USB connection cable ×1

• Antennas ×2
