🚀 High-Performance Quad M.2 NVMe Expansion Solution

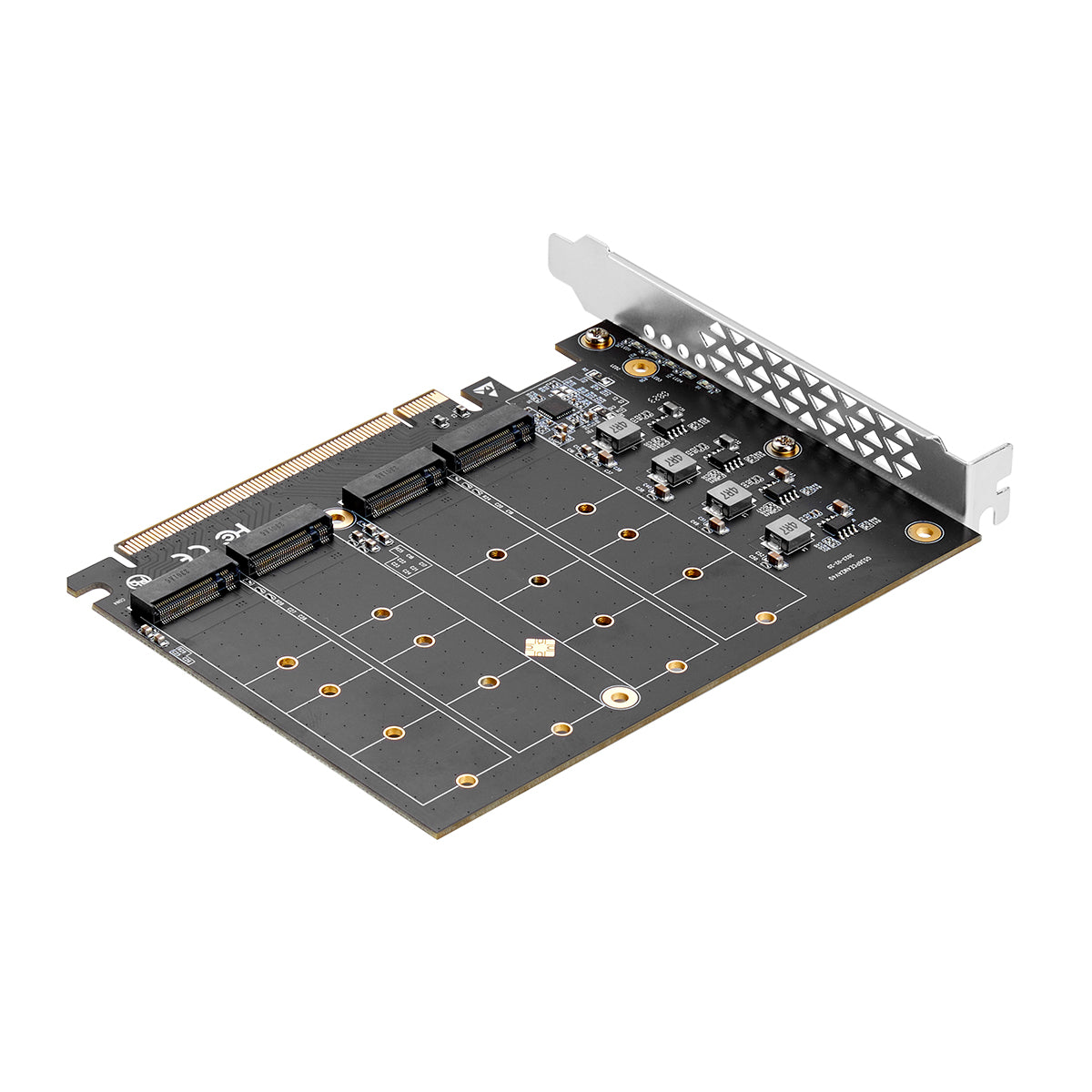

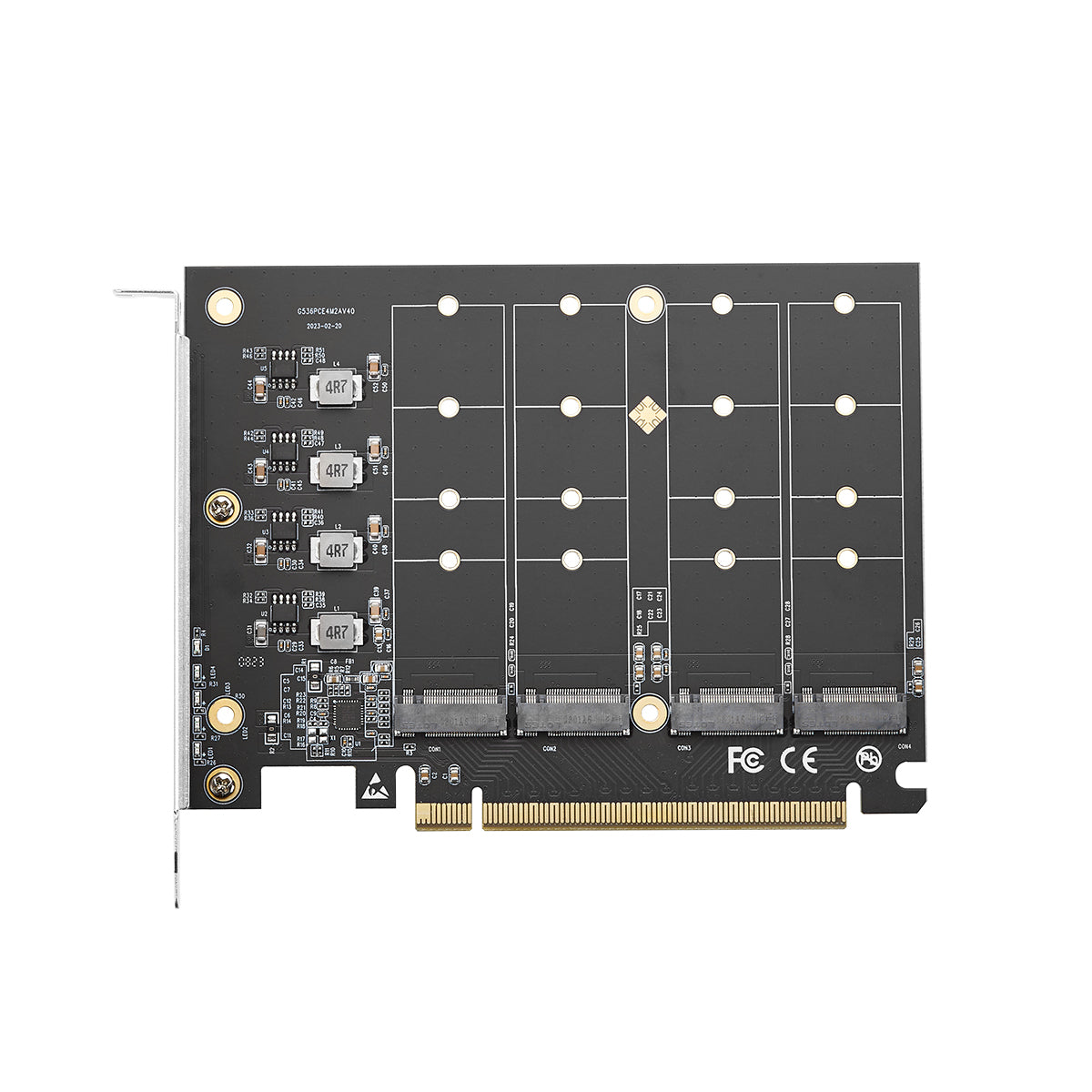

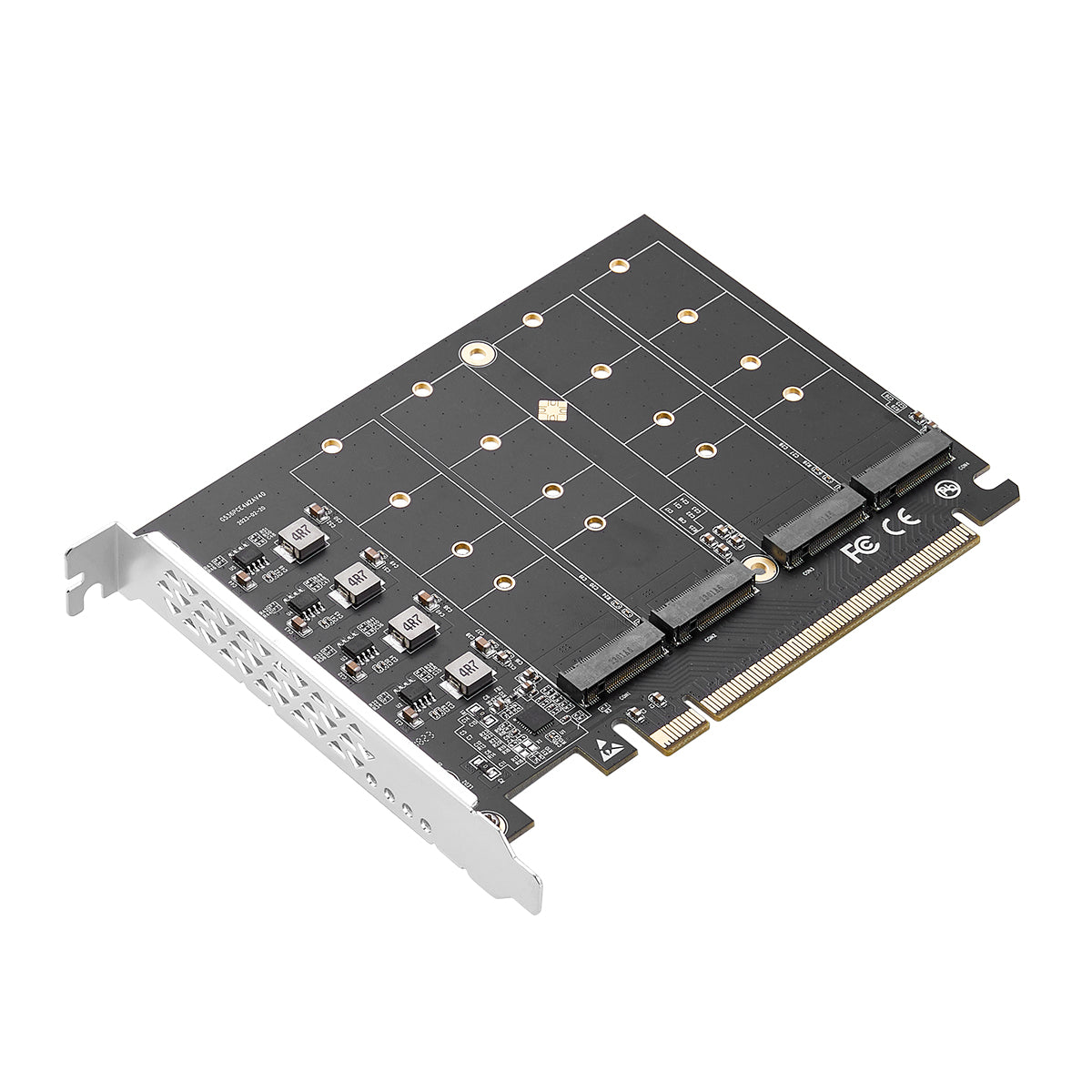

Transform your PCIe x16 slot into four ultra-fast M.2 NVMe storage bays with the IO-PCE44M2-02 adapter card. Perfect for content creators, gamers, and professionals who demand maximum storage performance and flexibility.
✅ Plug & Play - No Drivers Required! Simply install the card and your system will automatically recognize your M.2 drives.
✨ Key Features & Benefits
- 🔌 Quad M.2 Support: Install up to 4 NVMe SSDs (supports 2242/2260/2280/22110 sizes) in a single PCIe slot
- ⚡ PCIe 4.0 Speed: Harness up to 256Gbps bandwidth with server-grade low-loss PCB material
- ⚙️ High Power Support: Handles next-gen 14W SSDs with ease
- 🔄 Universal Compatibility: Works with PCIe 4.0, 3.1, 3.0, and 2.0 motherboards
- 🛠️ Easy Installation: No drivers needed - works out of the box with Windows and Linux
📋 Technical Specifications
| Model | IO-PCE44M2-02 |
| Interface | PCIe 4.0 x16 (compatible with x8 and x16 slots) |
| Output | 4× M.2 M-Key sockets |
| Supported Sizes | 2230, 2242, 2260, 2280, 22110 |
| Max Bandwidth | 256Gbps |
| Dimensions | 145 × 110.8mm |
| Compliance | PCI Express M.2 specification 1.0, 1.1 |
⚙️ System Requirements
- One free PCIe x16 or x32 slot
- Windows or Linux operating system
- Motherboard with PCIe bifurcation support (for multi-drive recognition)
⚠️ Important Note: Motherboards without bifurcation support will recognize only one M.2 drive. Please check your motherboard manual for bifurcation capability.

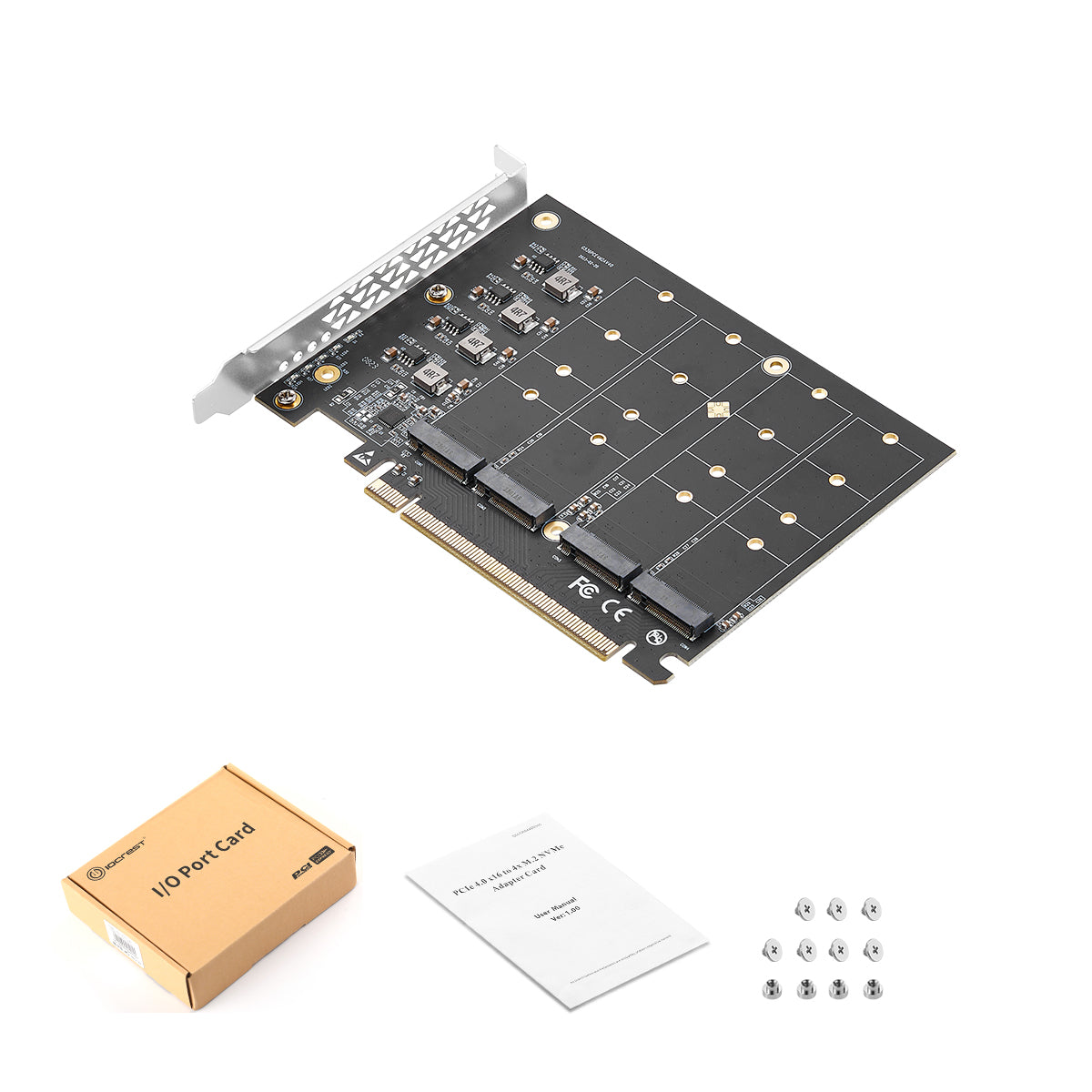

📦 Package Contents
- ✅ 1× PCIe 4.0 x16 to 4× M.2 adapter card
- ✅ 1× User manual
- ✅ M.2 mounting screws and hardware
❓ Frequently Asked Questions
Q: Do I need to install drivers for this adapter card?
A: No! This is a plug-and-play device. Simply install the card into your PCIe slot, insert your M.2 drives, and your operating system will automatically recognize them.
Q: Will all 4 M.2 drives be recognized on my motherboard?
A: This depends on your motherboard's PCIe bifurcation support. Motherboards with bifurcation can split the x16 slot to recognize all 4 drives. Without bifurcation, only one drive will be detected. Check your motherboard manual or BIOS settings.
Q: Can I use this card in a PCIe 3.0 slot?
A: Yes! This card is backward compatible with PCIe 3.0, 2.0, and earlier versions. However, speeds will be limited by your slot's generation (e.g., PCIe 3.0 speeds on a 3.0 slot).
Q: Can I mix different sizes of M.2 drives?
A: Absolutely! You can install any combination of 2230, 2242, 2260, 2280, or 22110 M.2 drives. Each slot has multiple screw positions to accommodate different lengths.
Q: Does this work with SATA M.2 drives?
A: No, this adapter is designed specifically for NVMe M.2 drives (M-Key). It does not support SATA M.2 drives (B+M Key).
Q: Will this fit in my case?
A: The card measures 145 × 110.8mm, which is a standard full-height PCIe card size. Ensure your case has clearance for a full-length PCIe card and that adjacent slots won't be blocked.
