🚀 Product Features
- High-Performance Interface: PCIe x4 slot, compatible with x8 and x16 slots

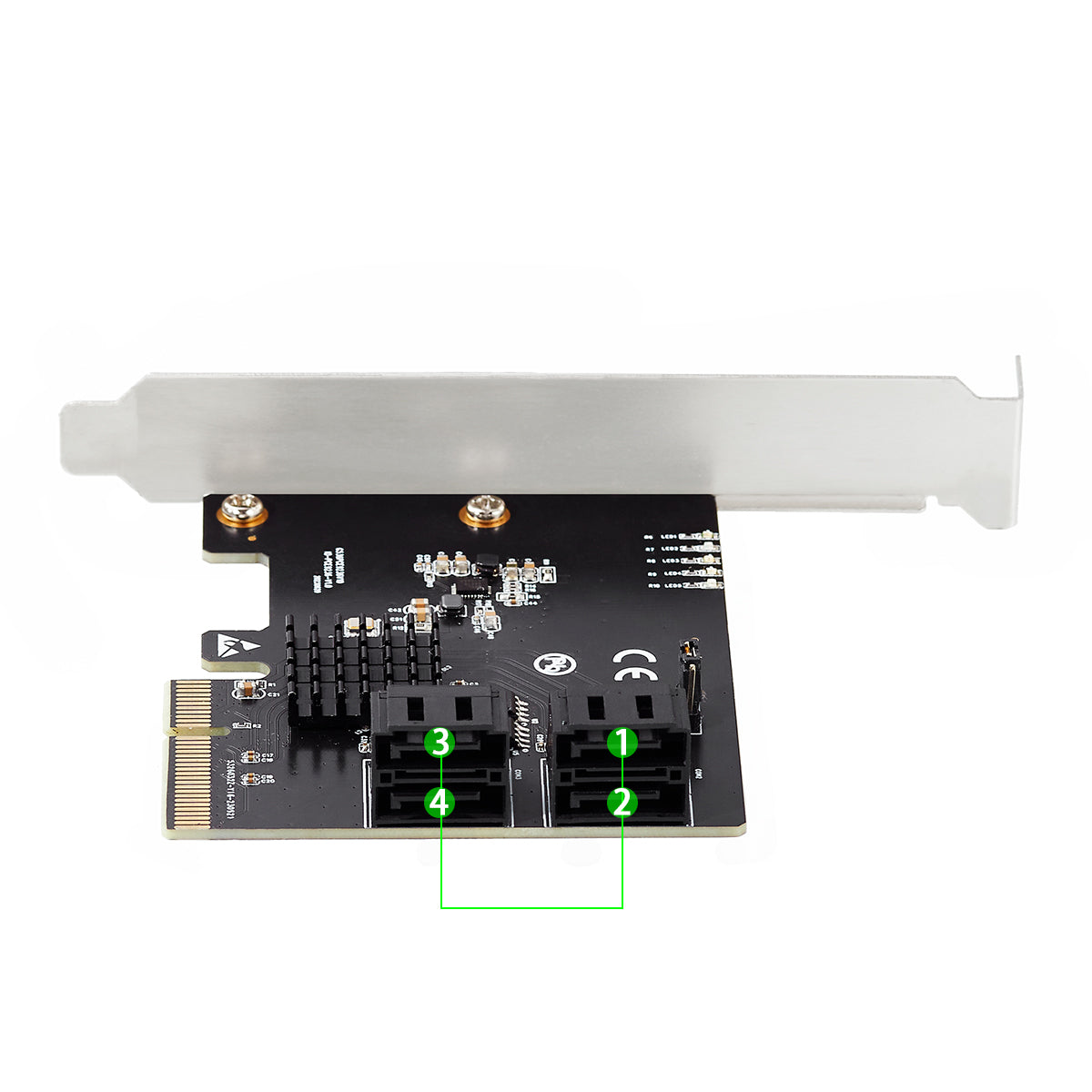

- Multi-Port Design: 4 SATA 6Gbps ports supporting multiple hard drives
- Hardware RAID Support: Supports RAID 0, RAID 1, RAID 10, and hybrid arrays
- Driver Installation: Requires driver installation for optimal performance
- System Compatibility: Supports Windows, Linux, and other mainstream systems
📋 Technical Specifications
| Model | IO-PCE9236-4IR |
| Interface Type | PCIe x4/x8/x16 |
| SATA Ports | 4x SATA 6Gbps |
| RAID Support | Hardware RAID 0, 1, 10, Hybrid Arrays |
| Chipset | Marvell 88SE9230 |
| System Support | Windows, Linux, etc. |
| Net Weight | 42.5g |
| Gross Weight | 114.5g |
✅ Application Scenarios
- Server storage expansion
- Workstation multi-drive configuration
- Data backup RAID arrays
- High-speed storage solutions
- NAS system upgrades

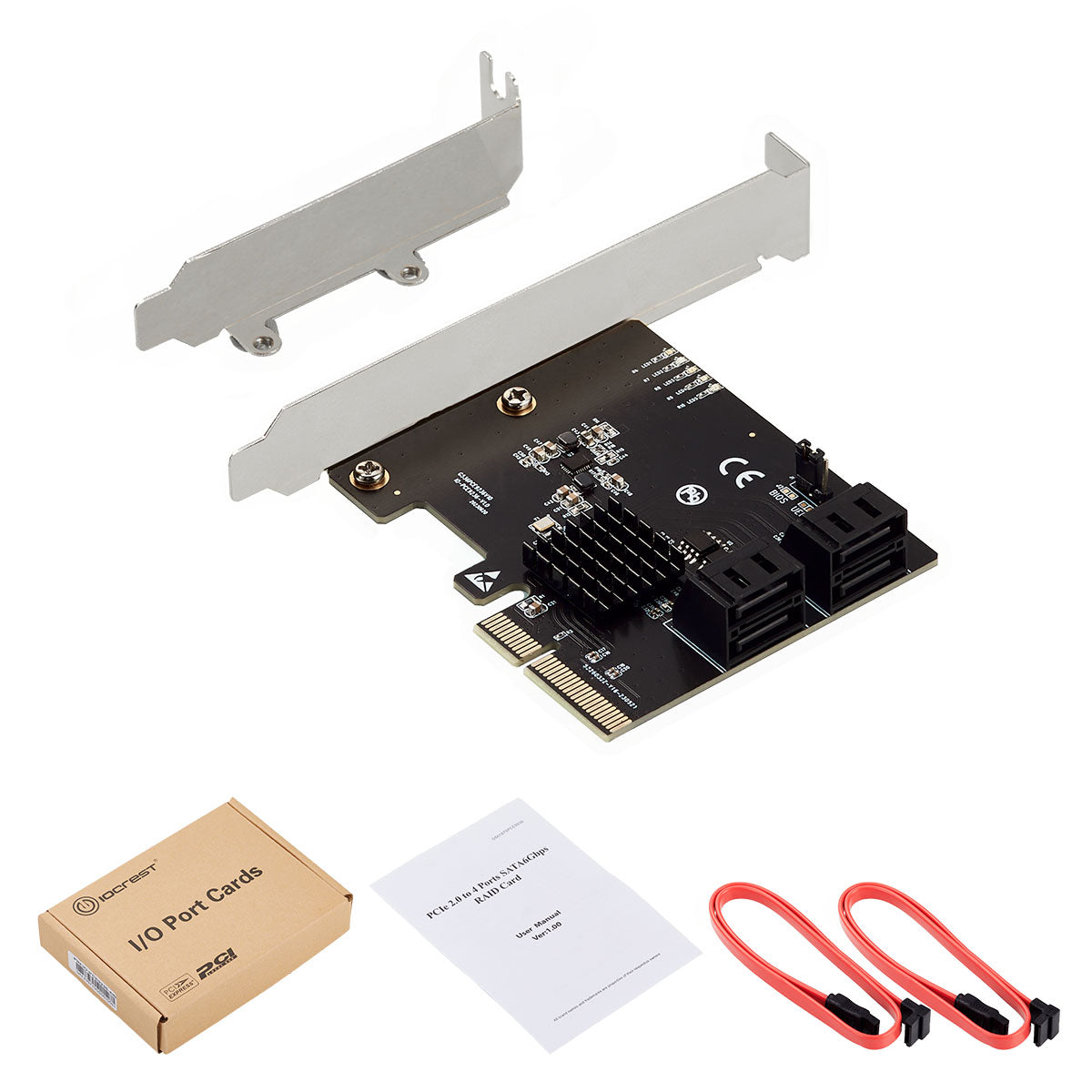

📦 Package Contents
- PCIe SATA RAID Card x1
- SATA Data Cables x2
- Low Profile Bracket x1
- Quick Installation Guide x1
🔧 Driver Download
Universal Driver: Click to Download
💡 Note: Supports Windows, Linux and other systems. Driver installation required for optimal performance
❓ Frequently Asked Questions (FAQ)
Q: What RAID modes does this card support?
A: The IO-PCE9236-4IR supports hardware RAID 0, RAID 1, RAID 10, and hybrid array configurations for flexible data protection and performance optimization.
Q: Is this card compatible with my PCIe slot?
A: Yes! This card uses a PCIe x4 interface and is fully compatible with x4, x8, and x16 PCIe slots. It works with PCIe 2.0 and is backward/forward compatible with PCIe 1.0 and 3.0.
Q: Do I need to install drivers?
A: Yes, driver installation is required for optimal performance. We provide universal drivers compatible with Windows, Linux, and other mainstream operating systems. Download link is provided above.
Q: Can I use this card in a low-profile case?
A: Absolutely! The package includes a low-profile bracket, making it suitable for both standard and compact PC cases.
Q: What is the maximum transfer speed?
A: Each SATA port supports up to 6Gbps transfer speed. With 4 ports, you can achieve high-speed data transfer for multiple drives simultaneously.
Q: Is this suitable for NAS systems?
A: Yes! This RAID card is perfect for NAS upgrades, providing hardware RAID support for data redundancy and improved storage performance.
Q: What's included in the package?
A: You'll receive the PCIe SATA RAID card, 2x SATA data cables, a low-profile bracket, and a quick installation guide - everything you need to get started.
💼 Why Choose Lekuo?
- Professional Grade: Marvell 88SE9230 chipset ensures reliable performance
- Complete Package: All necessary cables and brackets included
- Wide Compatibility: Works with Windows, Linux, and mainstream systems
- Flexible Installation: Standard and low-profile bracket options
- Expert Support: Technical documentation and driver support available
