Driver download address:http://www.mmui.com.cn/index.php?id=1761
Model：IO-PCE3242-2A1C
Input Interface：PCIe
Output Interface：2 ports of USB 3.2 Gen 2 Type-A + 1 port of USB 3.2 Gen 2x2 Type-C
Motherboard Slot：PCIe
Transmission Rate：20Gbps
Auxiliary Accessories：Low-profile bracket

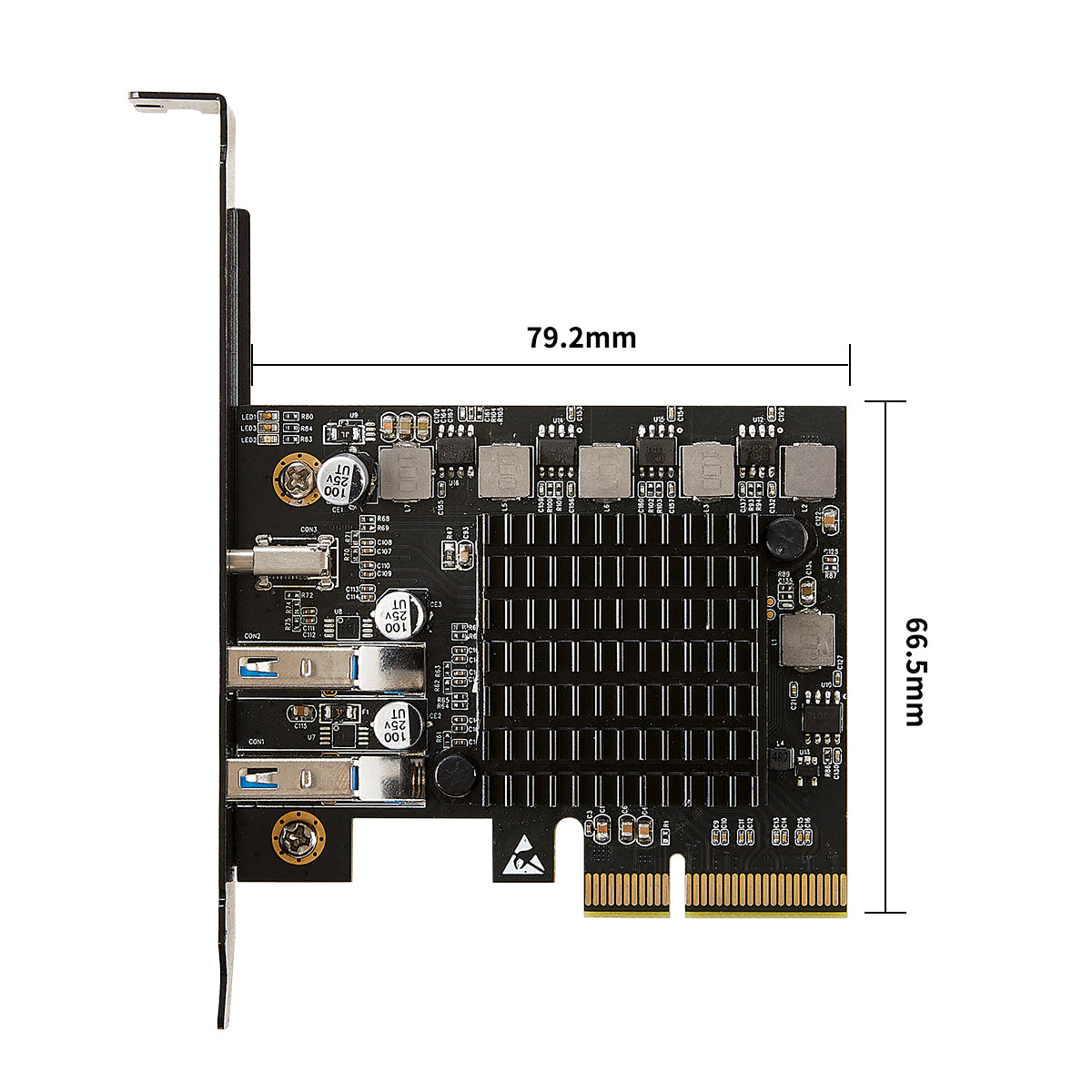

Product Size：79.2x66.5mm
Features
• Support PCI Express Gen-III x4
• Support PCI Express Base 3.1a Specification
• Compliant with PCI Express Card Electromechanical 2.0 specification
• Compliant with PCI Express Mini Card Electromechanical 1.2 specification
• Compliant with PCI Bus power Management interface specification Revision 1.2
• Compliant with PCI Local Bus specification Revision 3.0
• Compliant with USB 3.2 Specification Rev. 1.0
• Upstream Port supports USB 3.2 Gen2x2 (20Gbps), High-Speed and Full-Speed Connections
• Compliant with USB Attached SCSI Protocol (UASP) Rev. 1.0
• Support Multiple INs function
• Support USB3.2 and USB2.0 Link Power Management
• Support 2 ports of USB 3.2 Gen 2 Type-A and 1 port of USB 3.2 Gen 2x2 Type-C
• USB Type-A 10Gbps Bandwidth Performance, USB Type-C 20Gbps Bandwidth Performance

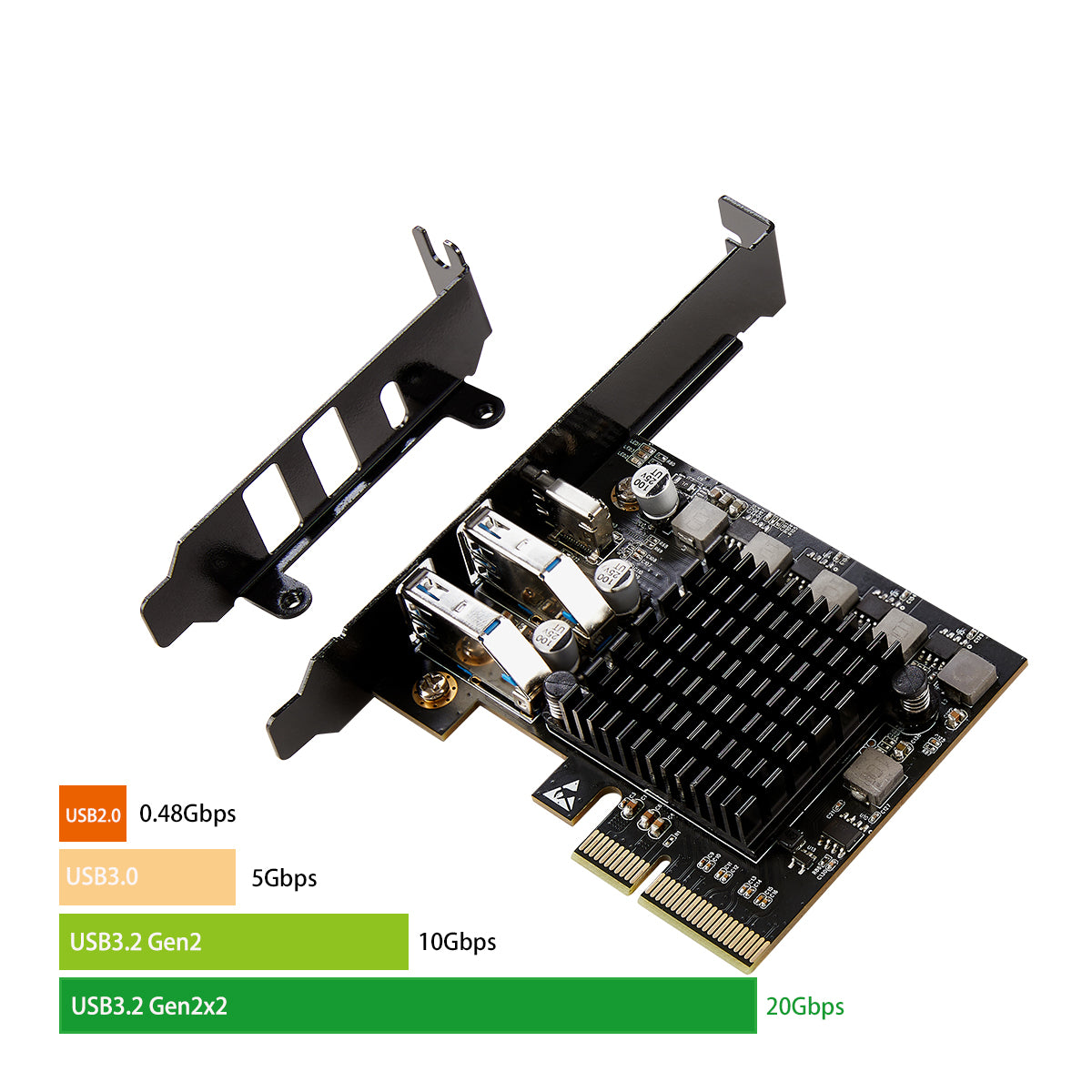

• Support the following speed data rates:1.5Mbps / 12Mbps / 480Mbps / 5Gbps / 10Gbps / 20Gbps(Only Type-C port supports 20Gbps)
• Integrate Spread Spectrum Controller for USB3.2 interface
• Backward compatible with Legacy USB function and device
• No need to install drivers
• Operation Temperature ：0 to 85°C
• Storage Temperature：0 to 120°C
Package Contents
• 1 × PCI Express x4 to 3 Ports USB3.2 Gen2 Card
• 1 × User Manual
• 1 x Low Profile Bracket
System Requirements:
• Microsoft® Windows and various Linux kernels and MAC 10.10.5 or later version
• One available PCI Expressx4, x8 or x16 slots
