🚀 Lekuo Mini PCIe Gigabit Ethernet Card
Intel I210AT Chipset | Professional Grade Performance
The M.2 Gigabit Ethernet Adapter is a high performance 10/100/1000 Base-T Ethernet LAN controller. Supports compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet.
⚡ Key Features
- ✓Intel I210AT Chipset - Enterprise-grade reliability and performance
- ✓Gigabit Speed - Full 10/100/1000 Mbps transmission rate
- ✓Energy Efficient - IEEE 802.3az EEE support for lower power consumption
- ✓Advanced Features - Jumbo frames, VLAN support, auto MDI-X
- ✓Wide Compatibility - Windows, Linux, DOS support
- ✓Compact Design - 50.95x30mm Mini PCIe form factor
📊 Technical Specifications
💻 System Requirements
Windows
Windows 10/11 (32/64-bit)
Windows 7/8.1
Windows Server 2008/2012/2016/2019
Linux
All major distributions
Kernel 2.6+
Other
DOS
FreeBSD

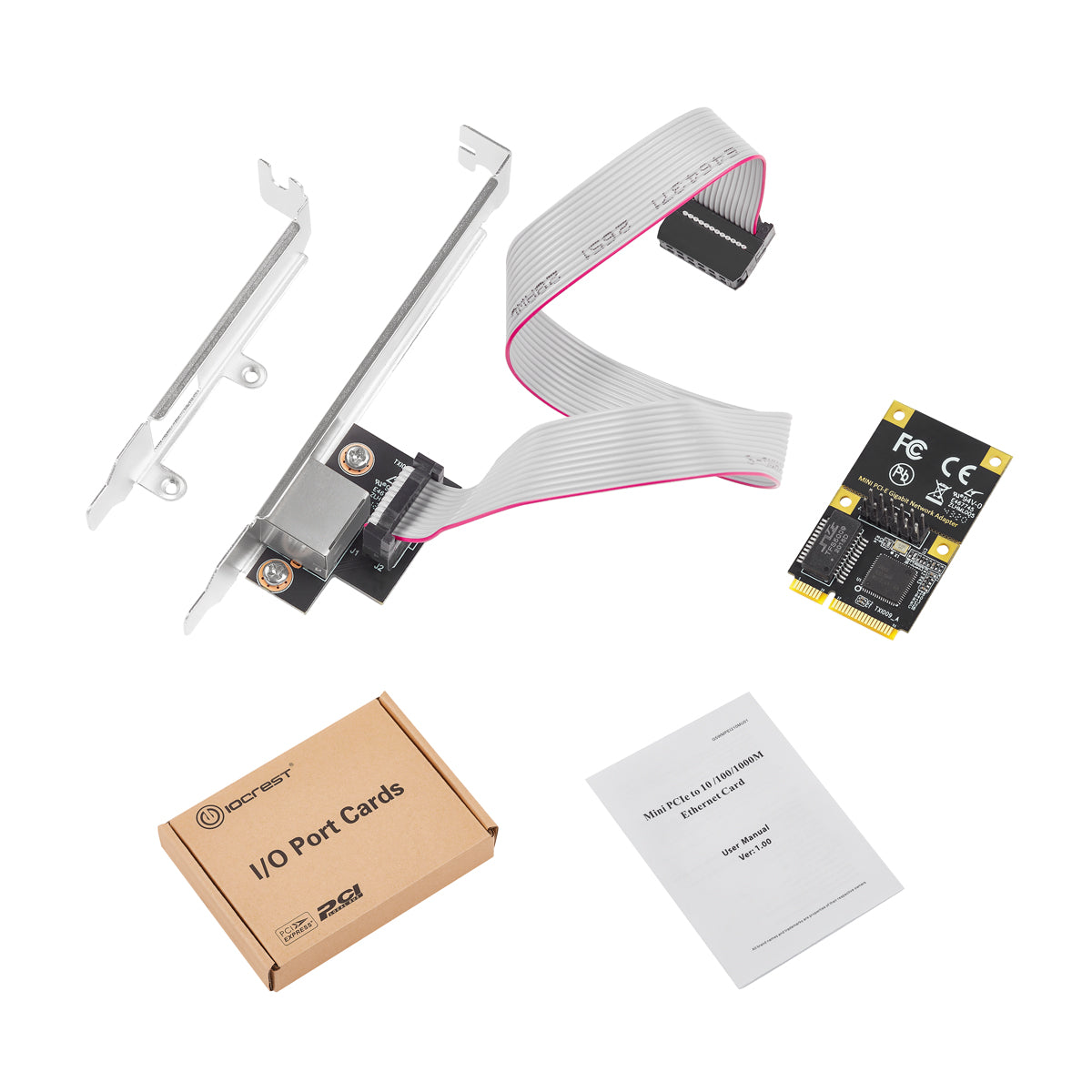

📦 Package Contents

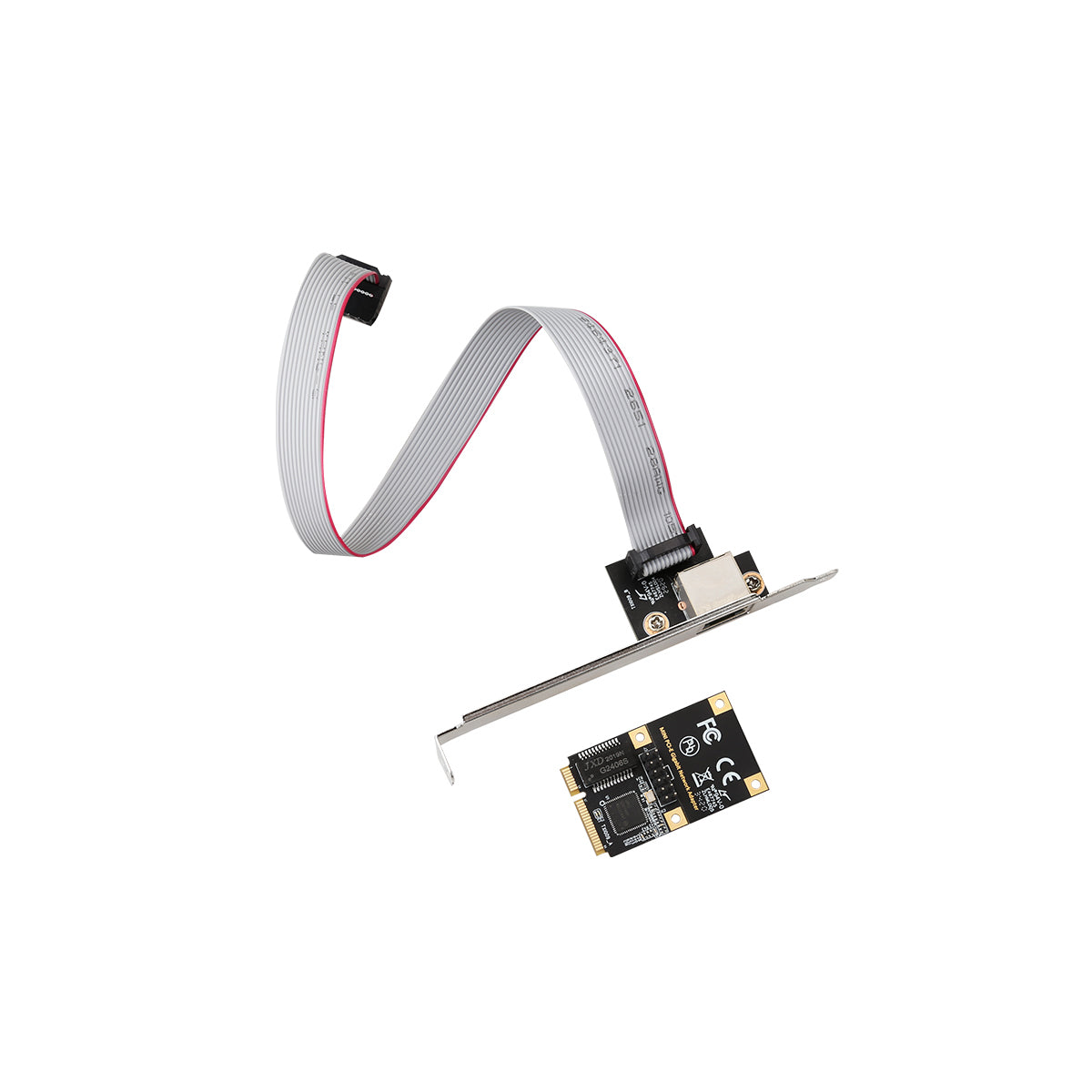

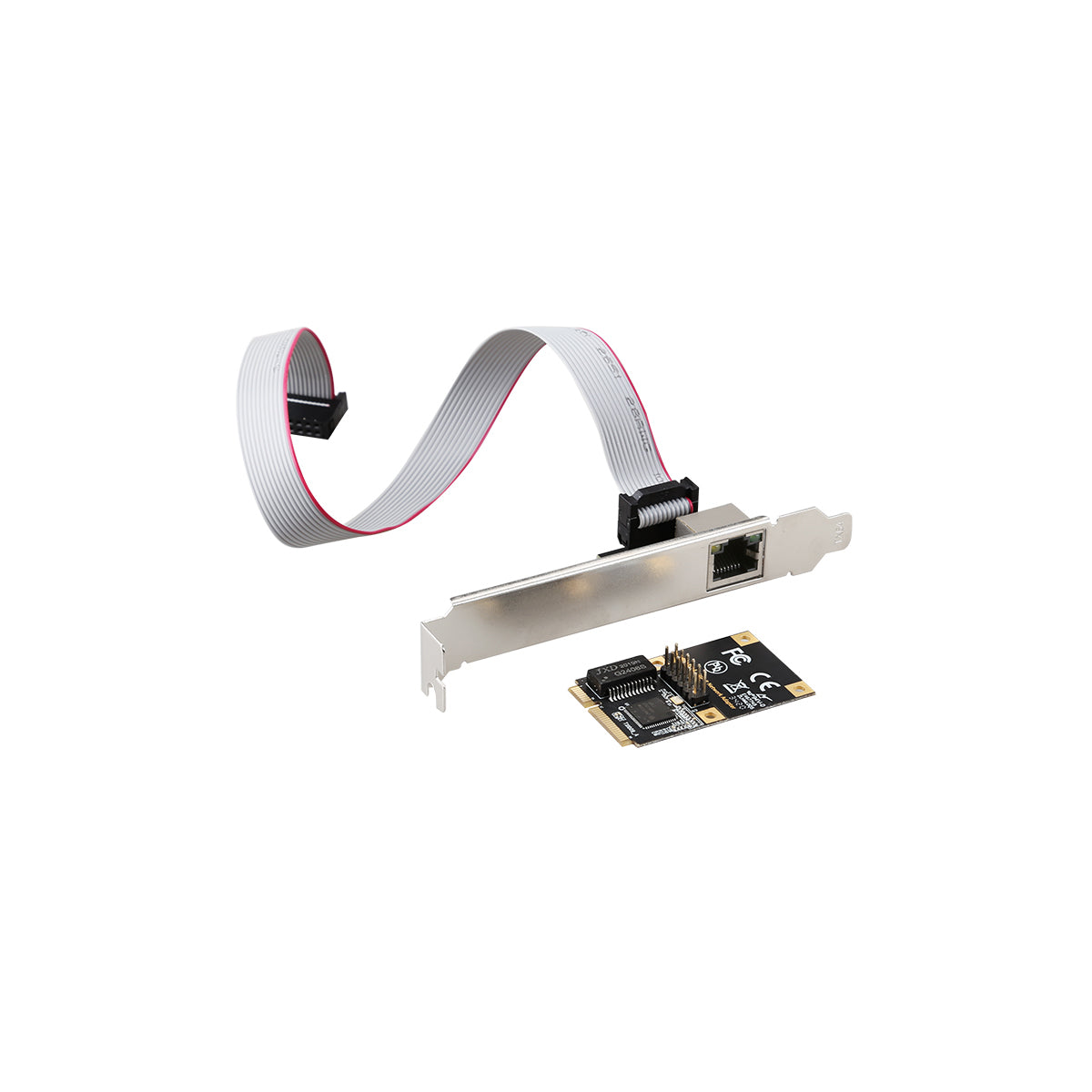

- ✓1 x Mini PCIe 1G Ethernet Adapter - Master Card
- ✓1 x RJ45 Network Connector Card - Daughter Board
- ✓1 x Gigabit Ethernet Cable
- ✓1 x User Manual
❓ Frequently Asked Questions
Q: Is this network card compatible with my laptop?
A: This Mini PCIe network card is compatible with most laptops, mini PCs, embedded systems, and NAS devices that have a Mini PCIe slot. Please check your device specifications to confirm it has a Mini PCIe expansion slot available.
Q: What operating systems are supported?
A: The Intel I210AT chipset supports Windows 10/11 (32/64-bit), Windows 7/8.1, Windows Server 2008/2012/2016/2019, Linux distributions, and DOS. Drivers are available for download on this page.
Q: Does it support full Gigabit speeds?
A: Yes! This adapter supports 10/100/1000 Mbps speeds and is fully compliant with IEEE 802.3ab Gigabit Ethernet standards. You'll get full 1000Mbps performance when connected to a Gigabit network.
Q: Do I need to install drivers?
A: Yes, please scroll down to the Driver Download section below to get the latest drivers.
Q: What's the difference between the master card and daughter board?
A: The master card is the main Mini PCIe adapter that plugs into your device's Mini PCIe slot. The daughter board is the RJ45 connector card that provides the physical Ethernet port. They connect together to provide a complete networking solution.
Q: Can I use this for server applications?
A: Absolutely! The Intel I210AT chipset is enterprise-grade and supports advanced features like jumbo frames, VLAN support, and energy-efficient Ethernet (EEE). It's perfect for servers, NAS systems, and other professional networking applications.
💾 Driver Download
Download the latest Intel I210/I225 driver for Windows, Linux and other systems
⬇️ Download Driver (i225.zip)
