IO-mPCE352-2S Mini PCIe Serial Card
High-Performance Dual RS-232 Expansion for Embedded Systems
🚀 Product Overview
The Lekuo IO-mPCE352-2S is a high-performance Mini PCI-Express serial expansion card that adds two RS-232 COM ports to embedded PCs, servers, and industrial systems. Powered by the reliable XR17V352 chipset, this card delivers stable serial communication with data rates up to 921.6kbps.
✨ Key Features
- Dual RS-232 Ports: Add 2 COM ports via header or adapter cable
- High-Speed Communication: Data transfer rates up to 921.6kbps
- Enhanced FIFO Buffer: 16C550 compatible UART with 256-byte transmit/receive FIFO
- Complete Signal Support: CTS, DSR, RI, DCD, DTR, RTS
- Industrial-Grade Protection: 15kV ESD protection for harsh environments
- Wide Temperature Range: Operates reliably from -40°C to 85°C
- Broad OS Compatibility: Windows XP/Vista/7/8/8.1/10, Server 2003/2008/2012, Linux 2.6.27+
📋 Technical Specifications
| Specification | Details |
|---|---|
| Model | IO-mPCE352-2S |
| Chipset | XR17V352 |
| Interface | Mini PCI-Express 2.0 Gen 1, x1 lane |
| Data Transfer Rate | Up to 921.6kbps |
| Serial Ports | 2 x RS-232 ports (via header or adapter cable) |
| UART | 16C550 compatible with 256-byte FIFO (transmit/receive) |
| Supported Signals | CTS, DSR, RI, DCD, DTR, RTS |
| Baud Rate | Configurable up to 921.6kbps |
| ESD Protection | 15kV |
| Operating Temperature | -40°C to 85°C |
| System Compatibility | Windows XP, Vista, 7, 8, 8.1, 10, Windows Server 2003, 2008, 2012, Linux 2.6.27 and newer |
📦 Package Contents

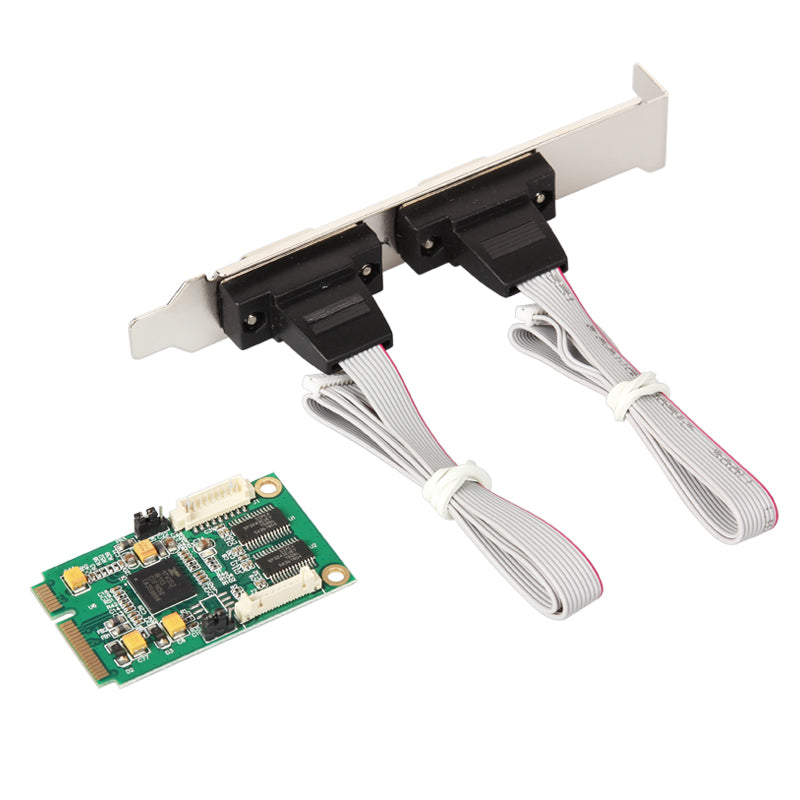

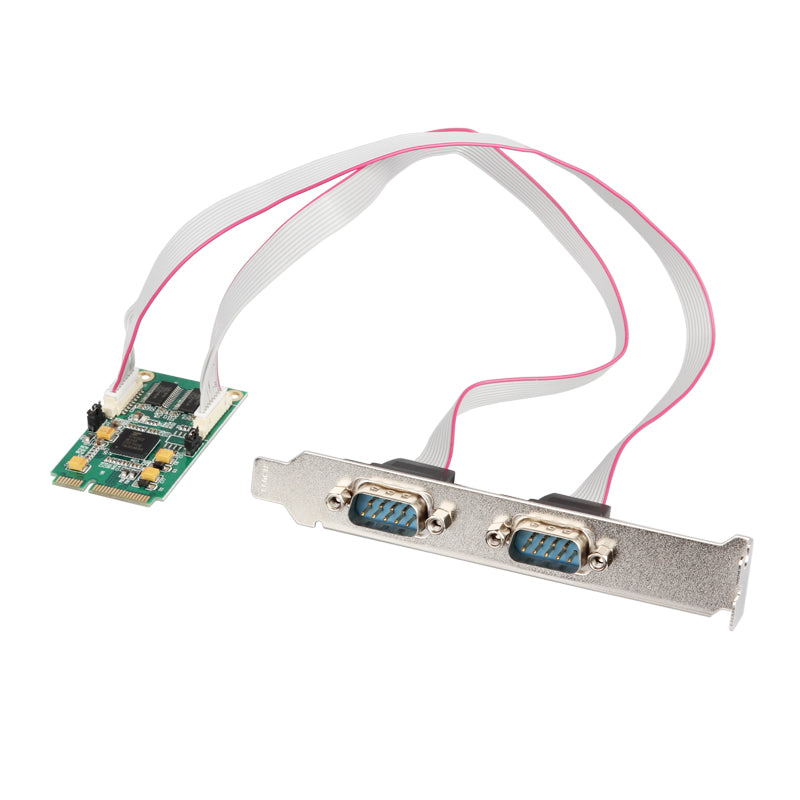

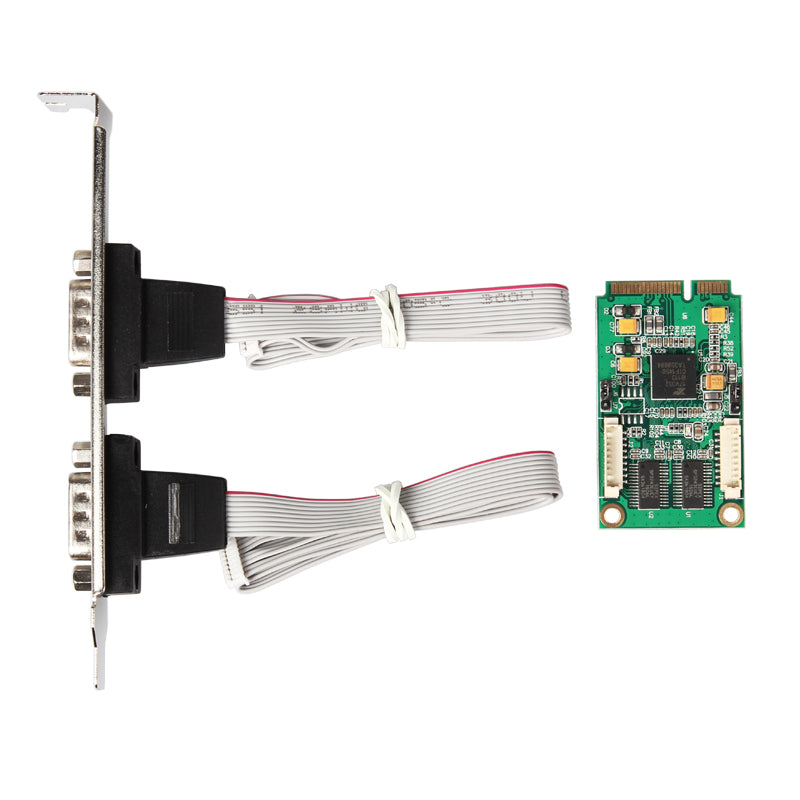

- 1 x Mini PCIe 2-Port RS-232 Card
- 1 x User Manual
❓ Frequently Asked Questions
Q: Is this card compatible with my system?
A: The IO-mPCE352-2S works with any system that has a Mini PCI-Express slot and supports Windows XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, or Linux 2.6.27 and newer. It's commonly used in embedded PCs, industrial computers, thin clients, and compact servers.
Q: Do I need to install drivers?
A: Yes, drivers are required for proper operation.
Q: What cable do I need to connect RS-232 devices?
A: The card features pin headers for RS-232 connections. You'll need either a header-to-DB9 adapter cable or a custom cable that matches your specific device connector. Standard DB9 serial cables can then be used to connect your RS-232 equipment.
Q: Can I use both ports simultaneously?
A: Yes, both RS-232 ports operate independently and can be used at the same time. Each port has its own 256-byte FIFO buffer and supports full-duplex communication at speeds up to 921.6kbps.
Q: What is the maximum cable length for RS-232?
A: RS-232 standard recommends a maximum cable length of 15 meters (50 feet) at 19.2kbps. For higher baud rates like 921.6kbps, shorter cables (3-5 meters) are recommended for reliable communication. Cable quality and environmental interference also affect maximum distance.
Q: Does this card require external power?
A: No, the card is powered entirely through the Mini PCI-Express slot. It draws minimal power and is suitable for low-power embedded systems and industrial applications.
Q: Is the card suitable for industrial environments?
A: Absolutely. The IO-mPCE352-2S is designed for industrial use with 15kV ESD protection and an extended operating temperature range of -40°C to 85°C, making it ideal for harsh environments, factory automation, and outdoor installations.
Q: What COM port numbers will be assigned?
A: COM port numbers are assigned automatically by your operating system during driver installation. You can view and modify port assignments through Device Manager (Windows) or system configuration tools (Linux). The ports typically appear as the next available COM numbers in your system.
Q: Can I use this card with RS-485 or RS-422 devices?
A: This card is designed specifically for RS-232 communication. For RS-485 or RS-422 applications, please check our other serial expansion cards that support those protocols.
Q: What warranty is included?
A: All Lekuo products come with a standard manufacturer warranty. Please contact our support team for specific warranty terms and technical assistance.
🏭 Applications
Ideal for industrial automation, embedded systems, POS terminals, data acquisition systems, and any application requiring reliable serial communication in compact form factors.
