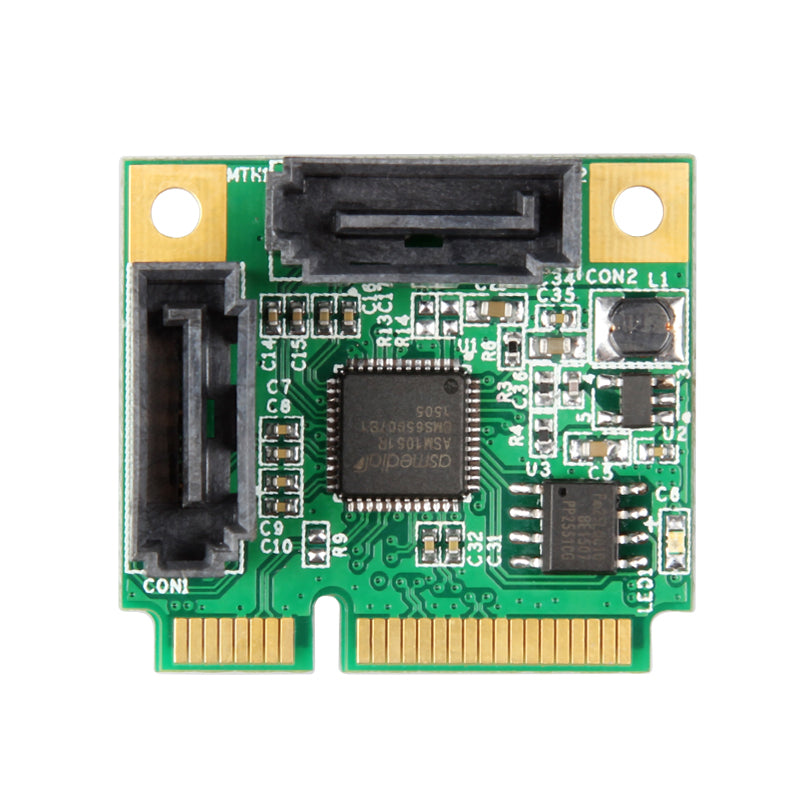

Compact RAID Storage Expansion for Mini PCIe Systems
Transform your laptop or embedded system with dual SATA III ports and hardware RAID support. The IO-MPCE1061R-2IR delivers 6Gbps performance in an ultra-compact 22×30mm form factor.
🎯 Key Features
- Dual 6Gbps SATA III Ports – Connect two high-speed drives simultaneously
- Hardware RAID 0/1/SPAN – Performance boost or data redundancy
- Mini PCIe Compact Design – Fits laptops and embedded systems (22×30mm)
- Complete Kit Included – Cable, bracket, and drivers ready to go
⚙️ Technical Specifications
| Model | IO-MPCE1061R-2IR |
| Input Interface | Mini PCIe |
| Output Interface | Dual SATA III (6Gbps) |
| Transfer Rate | 6Gbps per port (1.5/3.0/6.0 auto-negotiation) |
| RAID Support | RAID 0, RAID 1, SPAN |
| Chipset | ASMedia AS1061 |
| Dimensions | 22×30mm |
💻 System Requirements & Driver
Compatible Operating Systems:
Windows 10, 8.1, 7 (32/64-bit) • Vista • Server 2012/2008 • Linux
✓ Official ASMedia chipset driver • ✓ Virus-free • ✓ Free download
📦 Package Contents
- ✓ 1× IO-MPCE1061R-2IR RAID Controller Card
- ✓ 1× SATA III Cable (6Gbps rated)
- ✓ 1× Half-size to Full-size Bracket
- ✓ 1× User Manual (English)
🛡️ 1-Year Warranty: All Lekuo products are backed by a comprehensive 1-year manufacturer warranty and undergo strict quality control testing before shipping.
✨ Advanced Features
- ✓ Native Command Queue (NCQ) support
- ✓ S.M.A.R.T monitoring and reporting
- ✓ Automatic rebuild with background operation
- ✓ Port Multiplier command-based switching
- ✓ AHCI and IDE programming interface
- ✓ RAID mode changeable via GPIO or GUI utility
🔧 Ideal Applications
Perfect for laptop storage upgrades, compact NAS builds, industrial embedded systems, Mini-ITX projects, or any application requiring reliable dual-drive RAID in a Mini PCIe slot.
Trusted by system integrators, IT professionals, and DIY enthusiasts worldwide.
❓ Frequently Asked Questions
Q: Will this card work with my laptop?
A: This card requires a Mini PCIe slot (also called mPCIe). Check your laptop's specifications or service manual to confirm compatibility. It's commonly found in business laptops and some gaming models from 2010-2018.
Q: Can I use NVMe SSDs with this card?
A: No, this card only supports SATA drives (HDD or SATA SSD). For NVMe support, you'll need a different adapter designed specifically for NVMe protocol.
Q: Do I need to install drivers?
A: Yes, for optimal performance and RAID functionality, install the AS1061 driver (download link above). Windows may recognize the card with generic drivers, but full features require the official driver.
Q: What's the difference between RAID 0, RAID 1, and SPAN?
A: RAID 0 combines drives for maximum speed (no redundancy). RAID 1 mirrors data for redundancy (50% capacity). SPAN combines drives into one large volume without performance boost or redundancy.
Q: Can I hot-swap drives?
A: Hot-swap capability depends on your system's Mini PCIe implementation and BIOS support. Most laptop implementations do not support hot-swapping. Always power down before connecting/disconnecting drives.
Q: What cable length is included?
A: The package includes a standard SATA cable suitable for most compact builds. Cable length is approximately 30cm, ideal for laptop and small form factor installations.
📋 Standards Compliance
✓ PCI-E Mini Card Electromechanical Spec Rev. 1.2 • ✓ Serial ATA AHCI Spec Rev. 1.3 • ✓ Serial ATA Revision 3.2 • ✓ SATA PHY 1i/1m/2i/2m/3i
