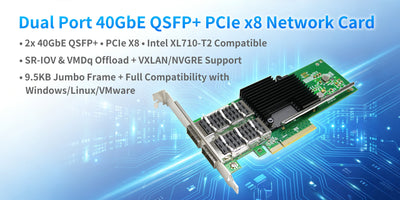

Intel XL710-T2 Dual-Port 40GbE Network Adapter
Unlock blazing-fast 40Gbps networking with PCIe x8 interface. Powered by Intel's proven XL710-T2 controller for enterprise-level reliability in data centers, virtualization, and high-performance computing environments.
Driver Download
Compatible Systems: Windows Server 2016/2012 R2/2012/2008 R2/2008, Windows 7/8/8.1/10, Linux Kernel 2.4.x/2.6.x/3.x/4.x+, VMware 6.x
📥 Download Driver
Key Features
Technical Specifications
| Brand | Lekuo |
| Product Name | PCIe X8 to 2 Port 40G QSFP+ Network Card |
| Model Number | PL71F21 |
| Controller/Chipset | Intel XL710-T2 |
| Host Interface | PCIe x8, x16 |
| Network Interface/Ports | 2x QSFP+ Ports |
| Data Rate | 40 Gigabit per port |
| Network Standard | 40GBASE-SR4/LR4, 40GbE QSFP+ AOC/DAC |
| Jumbo Frame Support | Up to 9.5 KB |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Network Virtualization | VXLAN, MACinUDP, NVGRE, IPinGRE |
| LED Indicators | 10G Link: Green; 40G Link: Yellow; Activity: Blue Blink |
| Dimensions | 161 x 69 mm |
| Weight | 0.2 kg |
| OS Support | Windows Server 2016/2012 R2/2012/2008 R2/2008, Windows 7/8/8.1/10, Linux Kernel 2.4.x/2.6.x/3.x/4.x+, VMware 6.x |
| Warranty | Standard Manufacturer Warranty |
Application Scenarios
🖥️ Data Center Networking
Ideal for high-density server deployments requiring ultra-low latency and maximum throughput. Perfect for storage area networks (SAN), network-attached storage (NAS), and backbone connectivity between switches with 40GBASE-SR4/LR4 support.
💻 Virtualization Platforms
Optimized for VMware 6.x, Hyper-V, and KVM environments with advanced network virtualization support. VXLAN, NVGRE, and IPinGRE enable efficient multi-tenant cloud infrastructure and software-defined networking.
🔬 High-Performance Computing
Accelerate scientific computing, financial modeling, and big data analytics with jumbo frame support up to 9.5KB. Minimize CPU overhead for compute-intensive applications requiring sustained high-bandwidth data transfers.
Frequently Asked Questions
Q: Will this card work in a PCIe x16 slot?
A: Yes, this network adapter is fully compatible with both PCIe x8 and x16 slots. It will operate at x8 speeds when installed in either slot type, providing maximum flexibility for your server configuration.
Q: Do I need to download and install drivers?
A: Yes, driver installation is required for optimal performance. Please download the Intel XL710 driver from the link provided above. While some operating systems include basic drivers, installing the latest official driver ensures full feature support and best performance.
Q: Can I use both ports simultaneously for 80Gbps total bandwidth?
A: Yes, both QSFP+ ports can operate simultaneously, providing up to 80Gbps aggregate bandwidth (40Gbps per port). You can configure them for link aggregation (LACP), separate networks, or redundancy depending on your requirements.
Q: Does this card support SR-IOV for virtualization?
A: Yes, the Intel XL710-T2 controller fully supports SR-IOV (Single Root I/O Virtualization), allowing you to create multiple virtual functions for direct VM access. This significantly improves network performance in VMware, Hyper-V, and KVM environments.
Q: What is the power consumption of this network card?
A: The Intel XL710-T2 network adapter typically consumes approximately 15-20W under full load. Actual power consumption varies based on workload, link speed, and configuration. It meets PCIe power specifications and does not require additional power connectors.
Q: Is a low-profile bracket included for 2U/1U servers?
A: Yes, this package includes a low-profile bracket, making it compatible with both standard full-height and low-profile server chassis. You can easily swap the bracket to fit your specific server form factor.
Q: Can this card be used with TrueNAS or FreeNAS?
A: Yes, the Intel XL710 chipset is well-supported in FreeBSD-based systems including TrueNAS and FreeNAS. The ixl driver is included in recent versions, providing excellent performance for high-speed storage networking and NAS applications.
Compare Network Speeds
Choose the right network card for your performance requirements
Package Contents
- 1x Network Card
- 1x Low-Profile Bracket
