• Industrial-Grade Durability – 15 KV ESD protection for all serial ports
• Compact & Power-Efficient – 22×80mm M.2 2280 form factor powered via motherboard slot
Features
• PCIe 2.0 Gen 1 compliant
• x1 Link, dual simplex, 2.5 Gbps in each direction
• 15 KV ESD protection for all serial ports
• Direction control: Adopt the technology which automatically controls the data-flow direction、automatically distinguish and control the data-transmission direction;
• Eight independent UART channels controlled with
• 16550 compatible register Set
• 256-byte TX and RX FIFOs
• Programmable TX and RX Trigger Levels
• TX/RX FIFO Level Counters
• Fractional baud rate generator
• Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis
• Automatic Xon/Xoff software flow control
• UART interface support for 5,6,7 or 8 data bits,1,1.5 or 2 stop bits and even/odd/mark/space/none
• Flow control none,hardware and xon/xoff
• Extended operating temperature range; -40 to 85⁰C
Applications
• Next generation Point-of-Sale Systems
• Remote Access Servers
• Storage Network Management
• Factory Automation and Process Control
System Requirements
• Windows®
• Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer

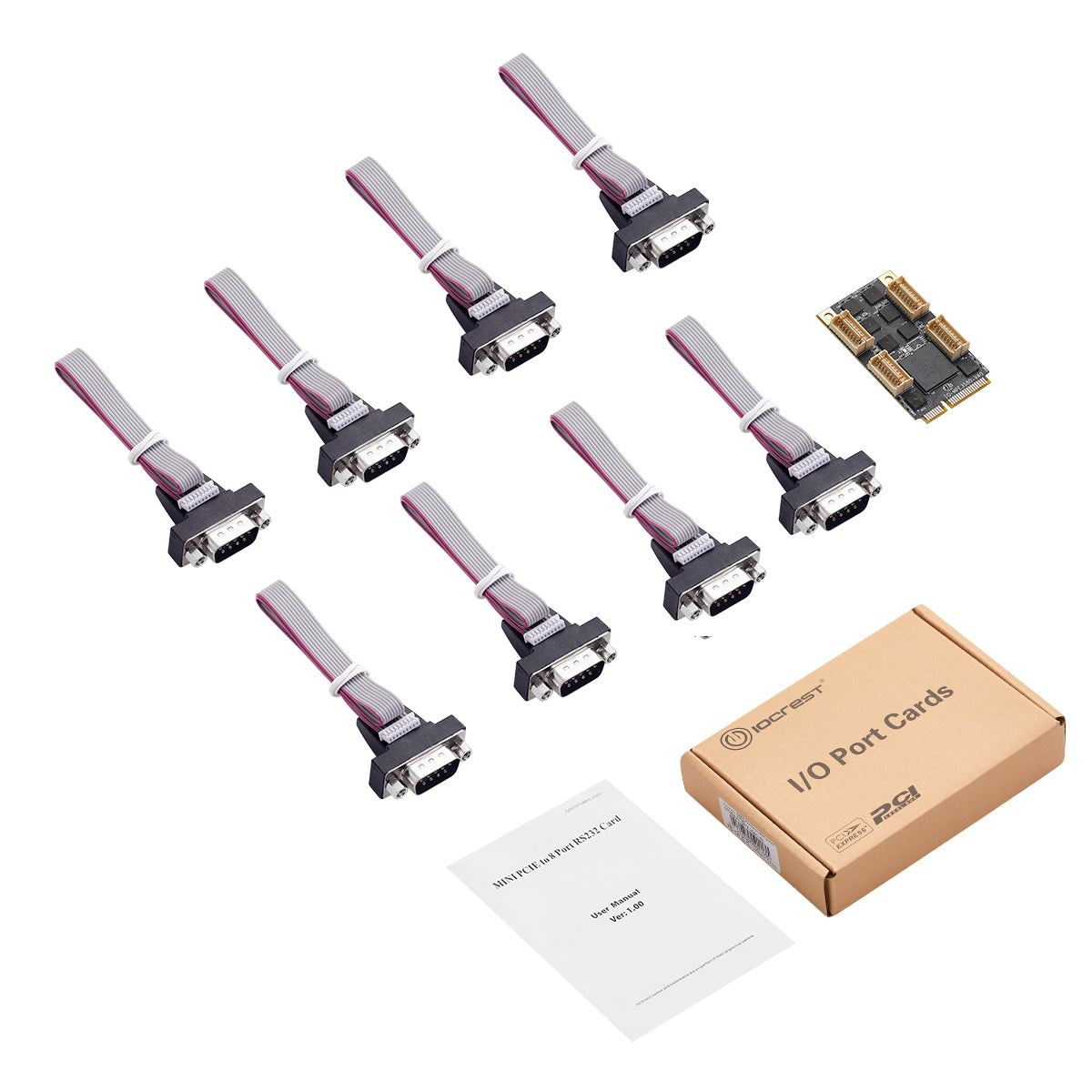

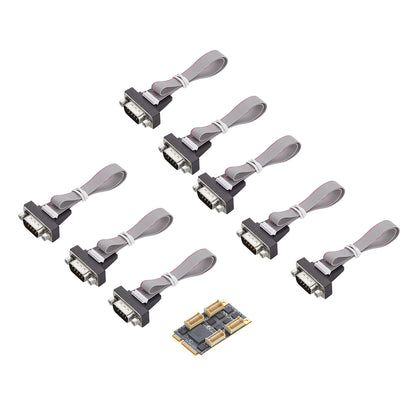

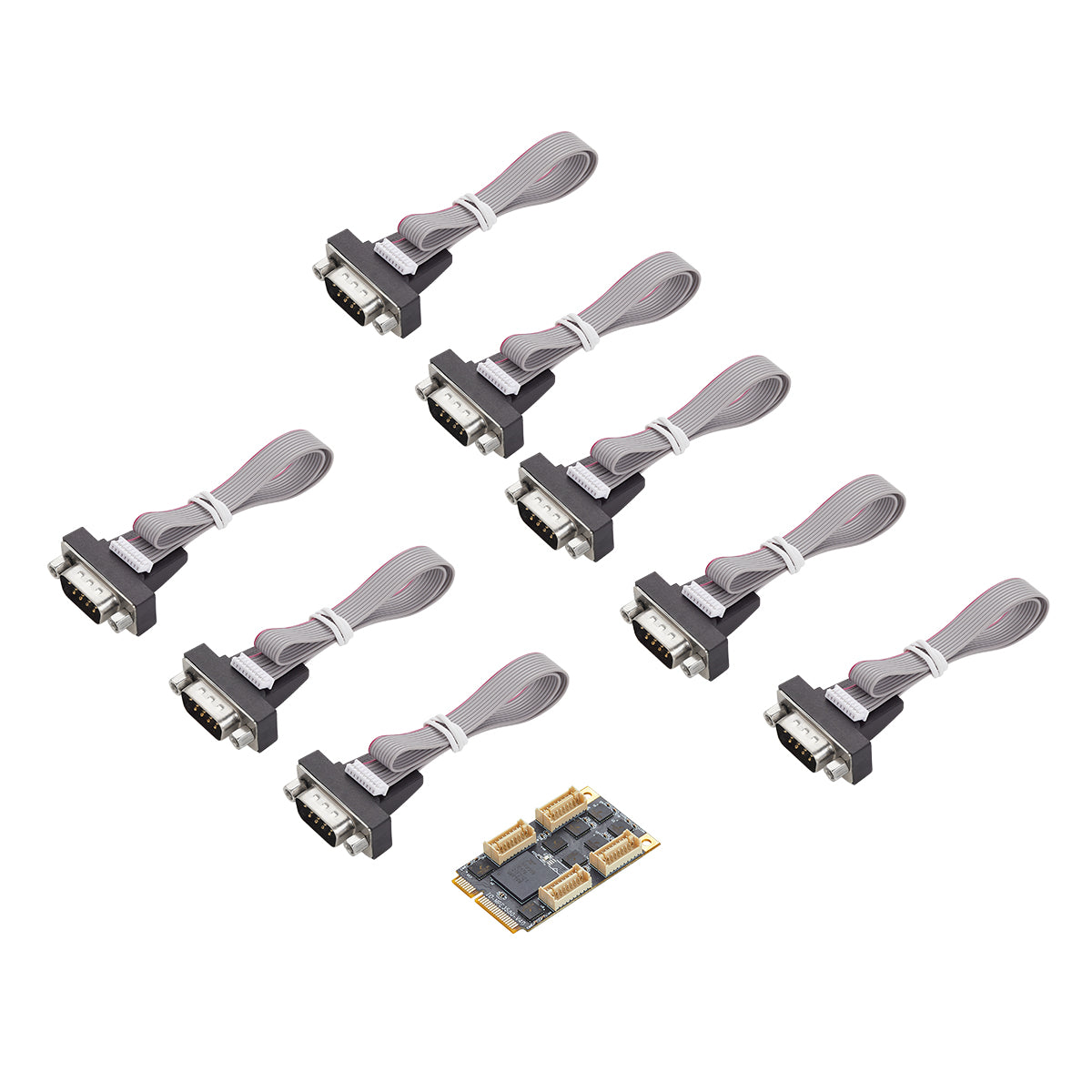

Package Content
• 1 x M.2 to 8 Port RS232 card
• 8 x DB9 Cable
• 1 x Instruction Manual
Note: Contents may vary depending on country/market
