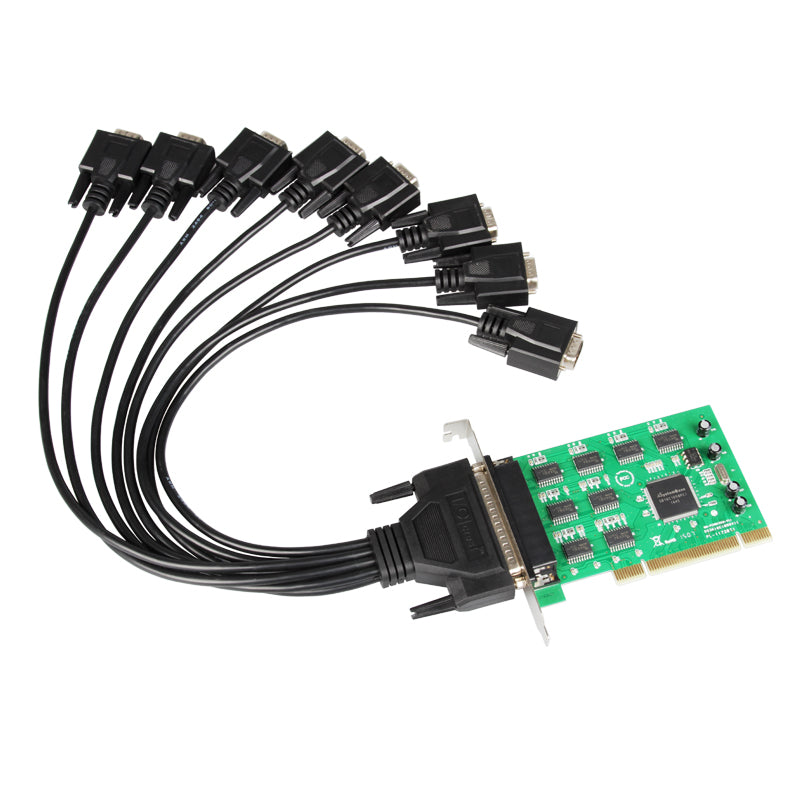

• High-density serial expansion — Extends 8 RS-232 DB9 ports via a single PCI slot.
• High throughput, low latency — Each port supports up to 921.6 Kbps with 256-byte FIFO buffering.
• Effortless configuration — Auto IRQ/I-O assignment and IRQ sharing enable quick, hassle-free installation.
• High throughput, low latency — Each port supports up to 921.6 Kbps with 256-byte FIFO buffering.
• Effortless configuration — Auto IRQ/I-O assignment and IRQ sharing enable quick, hassle-free installation.

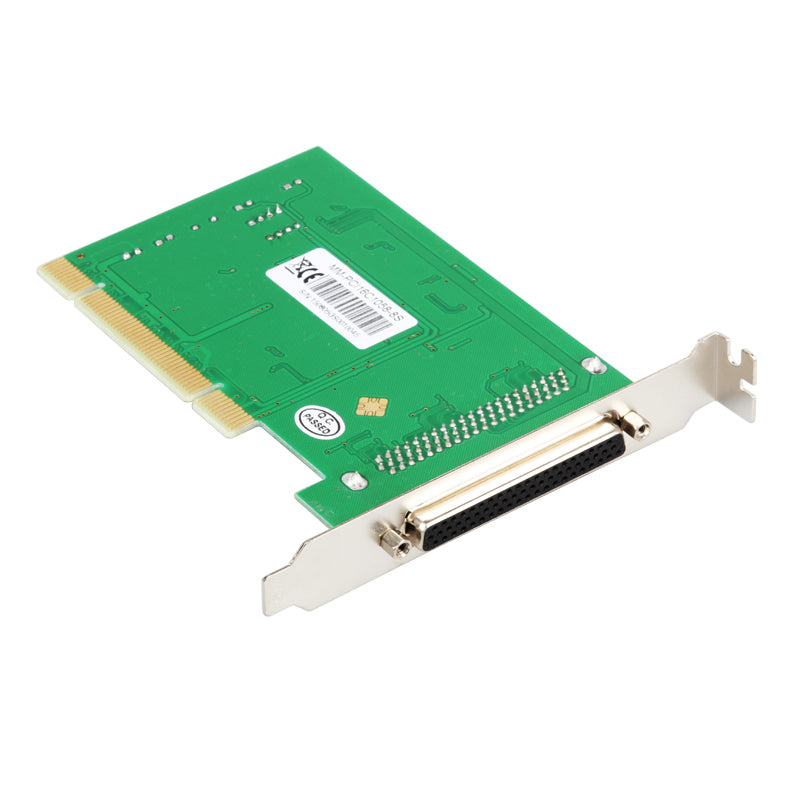

Model：MM-PCI16C1058-8S
Input Interface：PCI

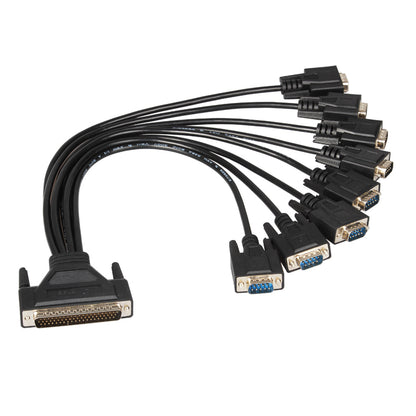

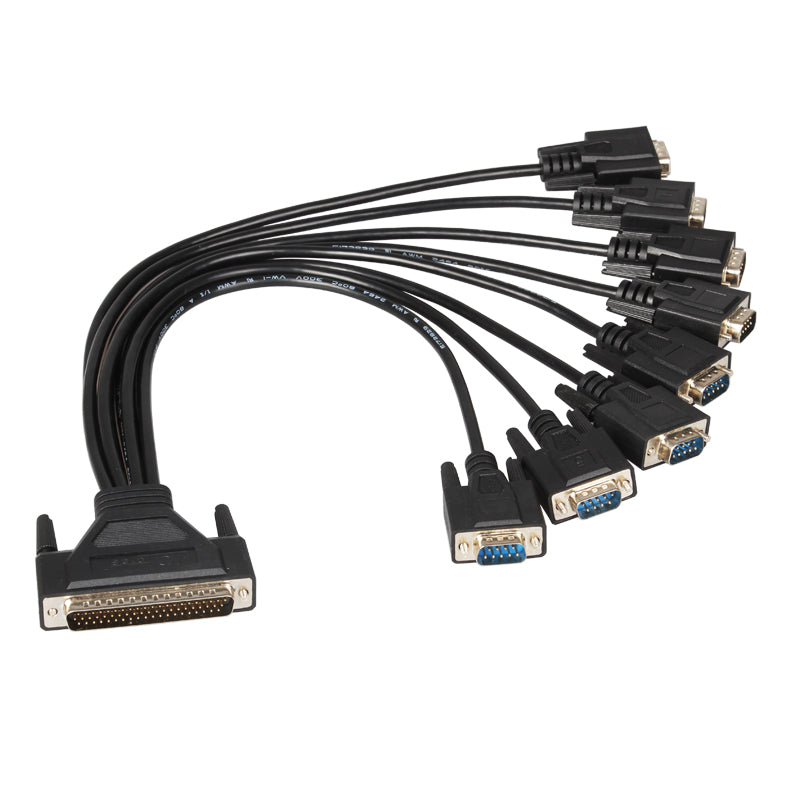

Output Interface：8 x RS232 DB9
Motherboard Slot：PCI
Transmission Rate:Up to 926.1kbps
Product Size:120X78.5mm

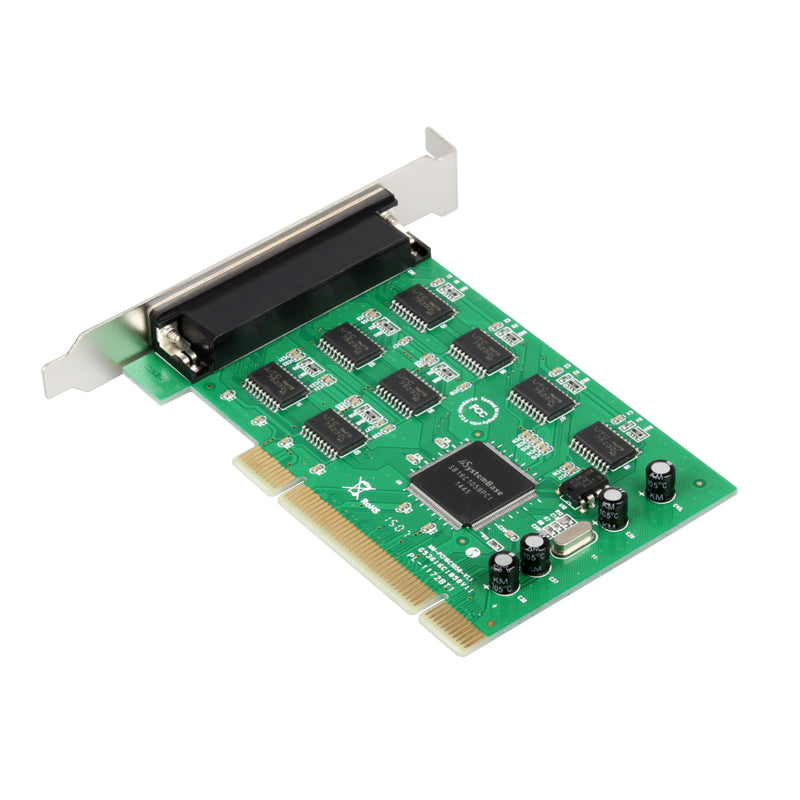

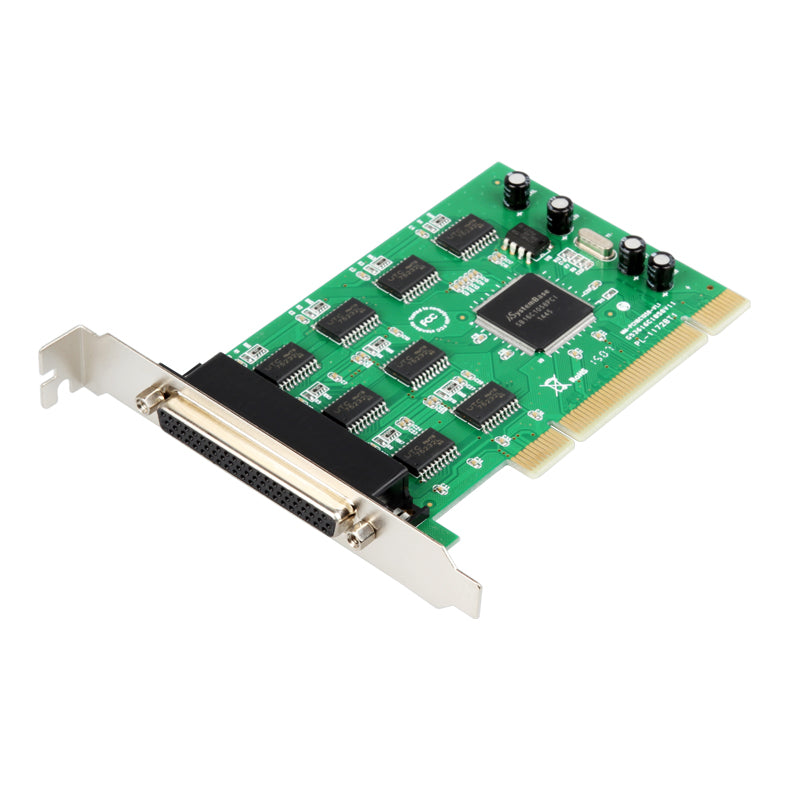

Chipset:Systembase SB16C1058PCI
Features
• Compliant with PCI local specification revision2.3
• Supports 8*UART serial port
• Data transmission speed up to 926.1Kbps.Surge Protection and Optical isolation available as options
• I/O Controller:Built-In eight improved 16C550 UART with 256-byte Deep FIFO
• By using automatic data transfers and assign IRQ&I/O address
• Supports IRQ share for PCI
• No need switches and jumpers,all the settings will be done by software
System Requirements
• Supports OS:DOS LINUX2.4 LINUX2.6 WIN98 WIN2000 WINXP32/64 WIN2003 VISTA WIN2008 WIN7
Avaliable PCI slot
