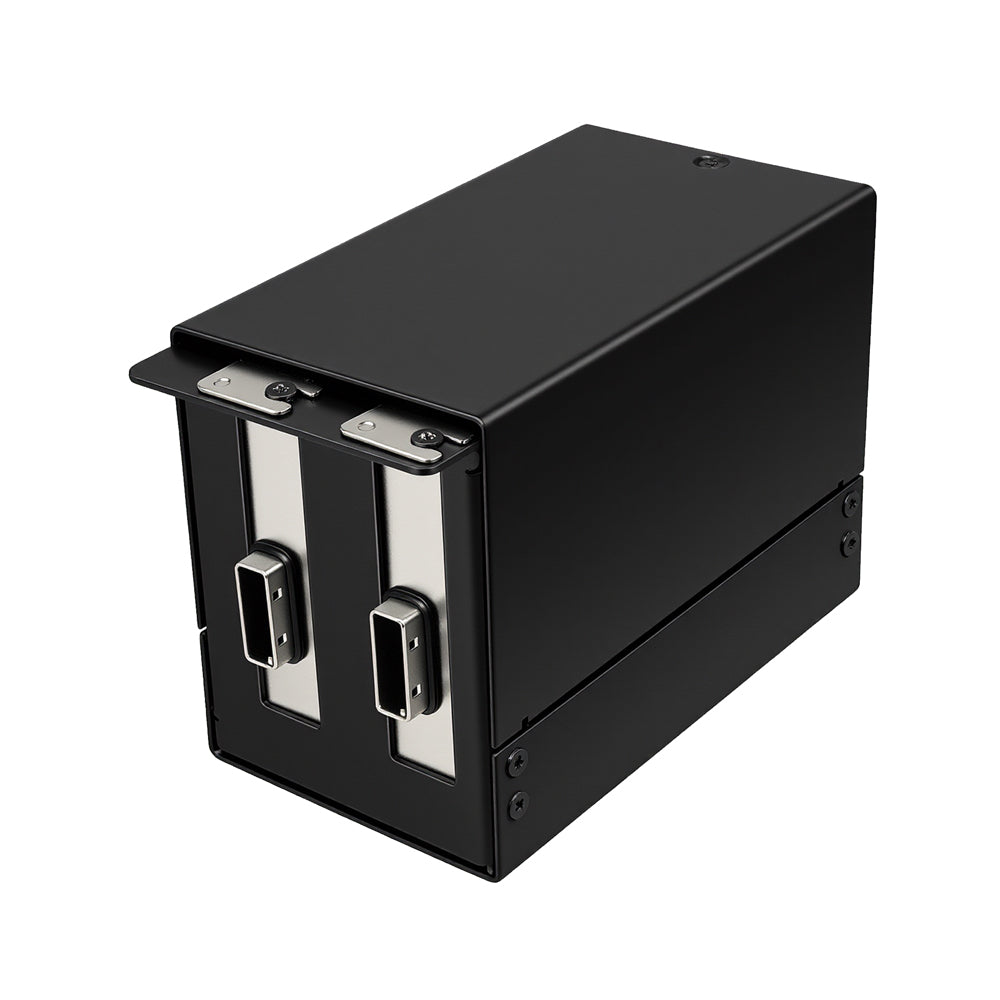

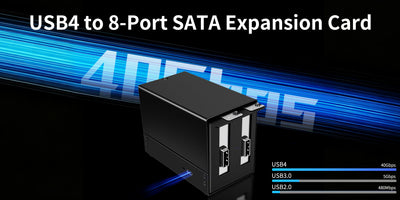

LeKuo USB4 40Gbps to 8-Port SATA Expansion Dock
Expand your storage capacity instantly with the LeKuo USB4 40Gbps to 8-Port SATA Expansion Dock. Connect up to 8 SATA III drives via a single USB4 port — compatible with Thunderbolt 3/4/5 hosts. Perfect for NAS builds, video editing workstations, data backup systems, and high-density storage arrays.
Key Features
-
USB4 40Gbps Upstream Interface — Compatible with Thunderbolt 3/4/5 hosts
-

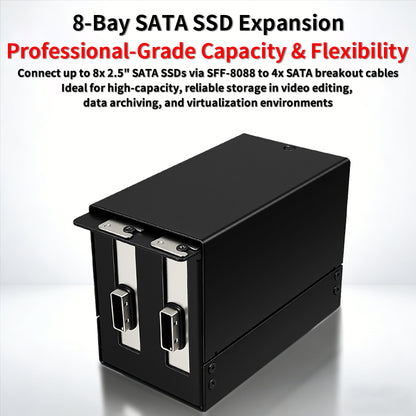

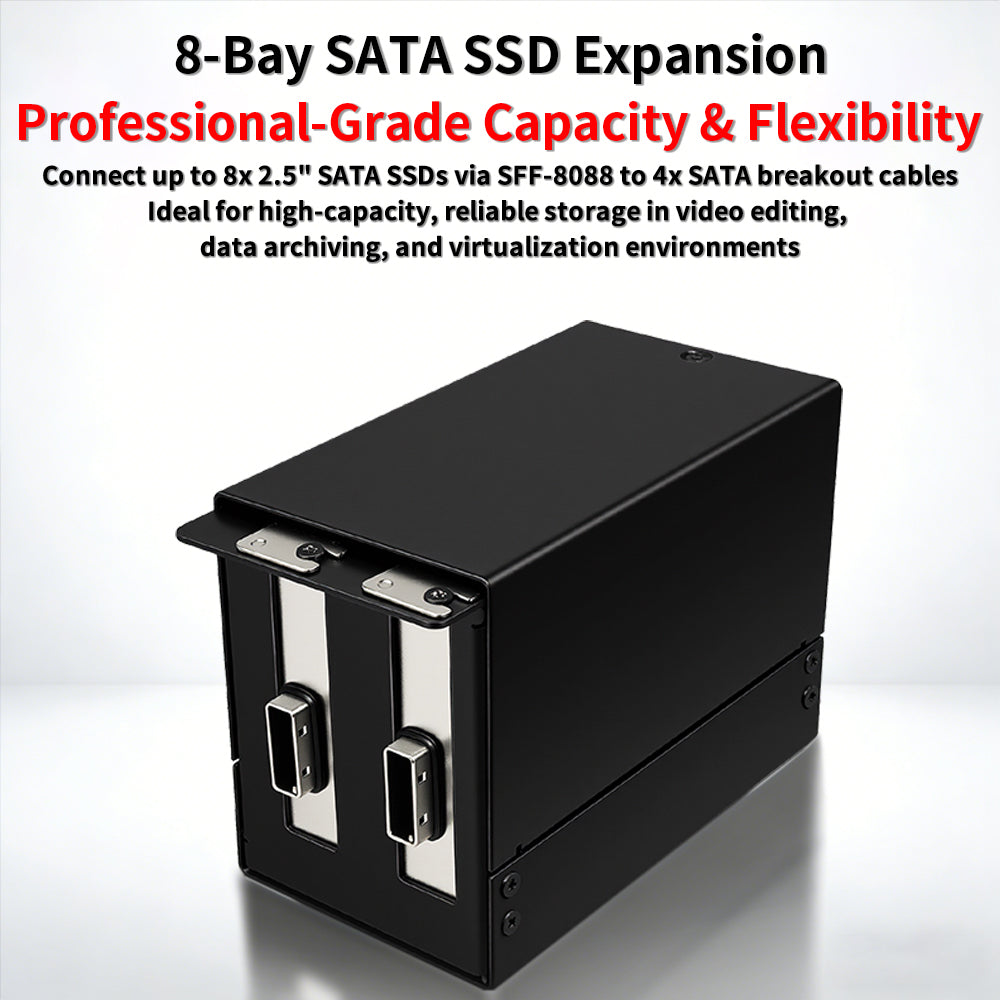

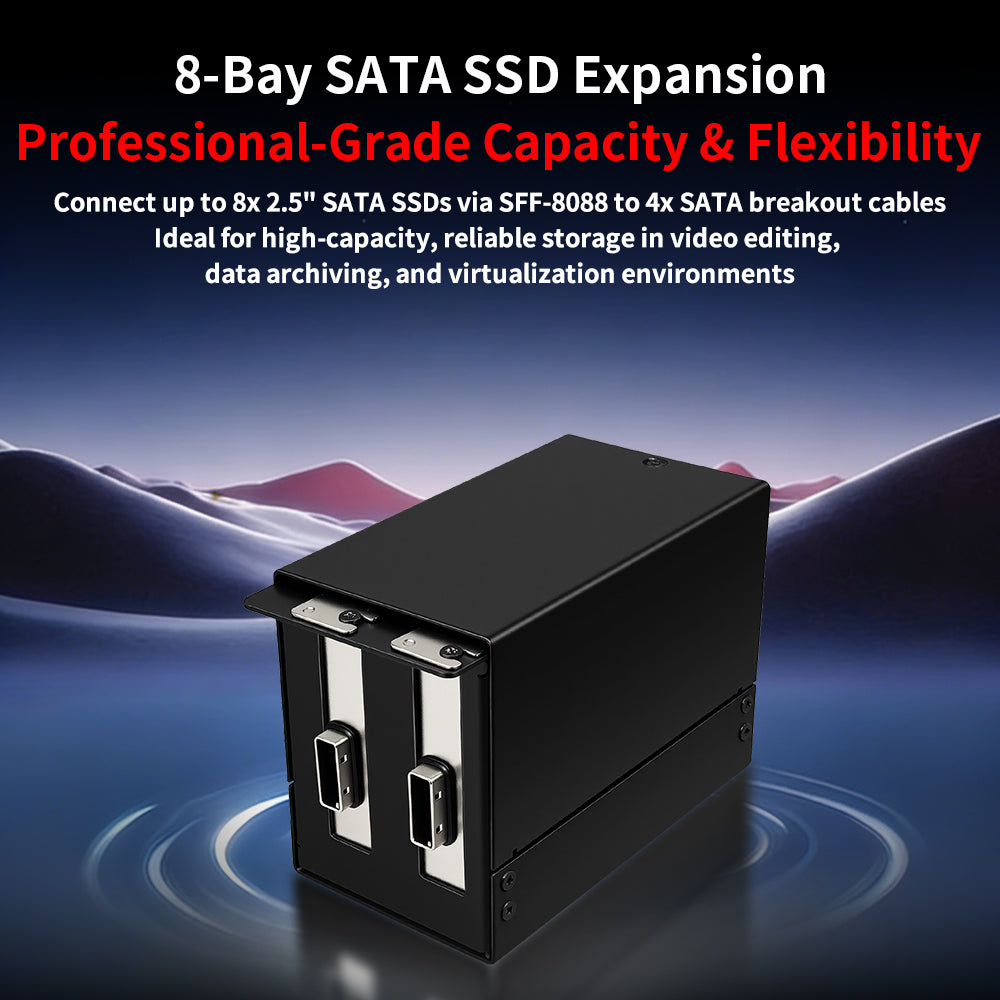

8 × SATA III 6Gbps Ports — Connect SSDs or HDDs for massive external storage expansion
-
Hot-Swap & Hot-Plug Support — Swap drives without restarting your system
-
NCQ (Native Command Queuing) — Optimizes read/write command order for better drive performance
-
AHCI 1.0 Compatible — Standard SATA operation for broad OS support
-
No Driver Required — Plug-and-play on Windows 10/11, macOS, and Linux
Specifications
-
Upstream Interface: USB4 40Gbps (Thunderbolt 3/4/5 compatible)
-
SATA Ports: 8 × SATA III (6Gbps / 3Gbps / 1.5Gbps auto-negotiation)
-
Internal Connector: SFF-8088 multi-lane
-
Power Input: 12V 3A DC (adapter included)
-
Supported OS: Windows 10/11, macOS, Linux
-
Drive Compatibility: SATA SSD, SATA HDD
What's in the Box
- 1 × USB4 40Gbps to 8-Port SATA Expansion Dock
- 1 × 12V 3A Power Adapter
- 1 × 40Gbps USB4 Data Cable
- 1 × SFF-8088 to 4×SATA Breakout Cable
- 1 × User Manual
Note: A second SFF-8088 to 4×SATA cable is required to use all 8 ports and must be purchased separately.
Compatible Use Cases
Whether you're building a home NAS, expanding a video editing workstation, or setting up a data backup array, the LeKuo USB4 SATA Expansion Dock delivers the bandwidth and port density you need. With 40Gbps throughput shared across 8 SATA ports, it handles simultaneous multi-drive access with ease.

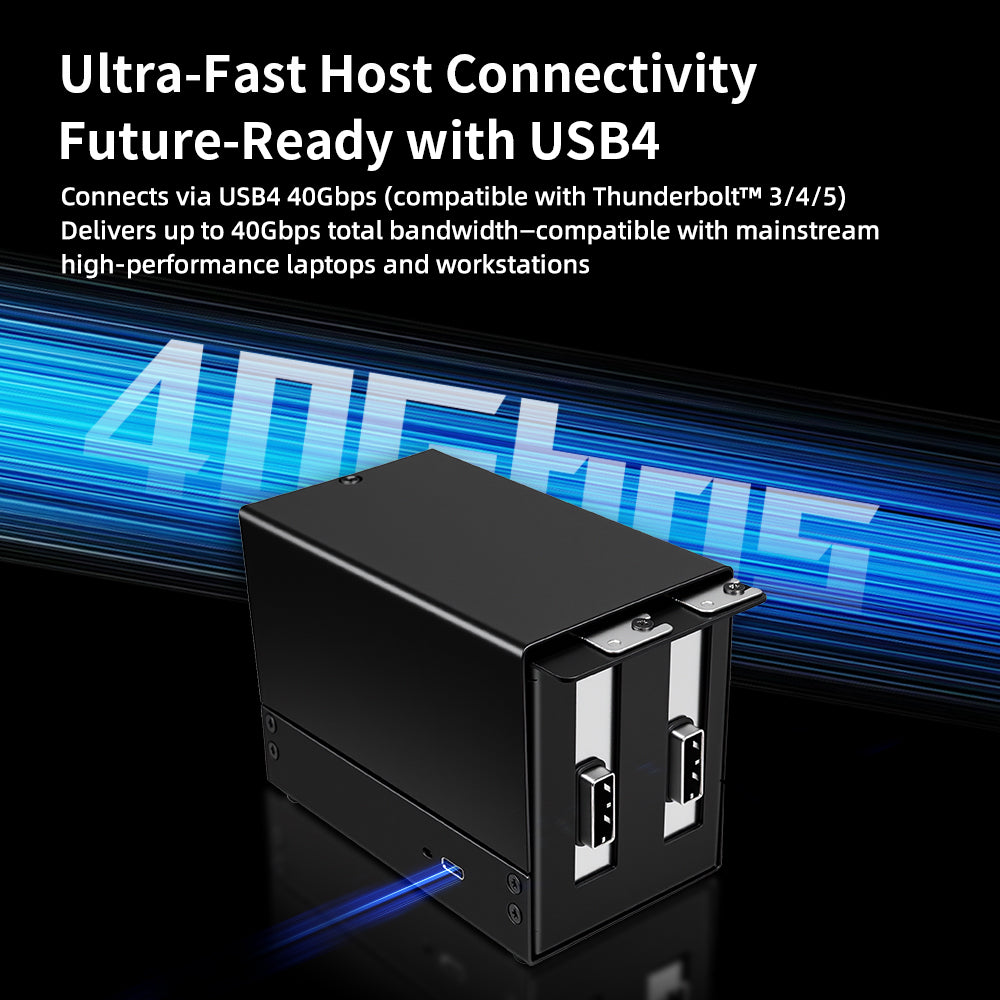

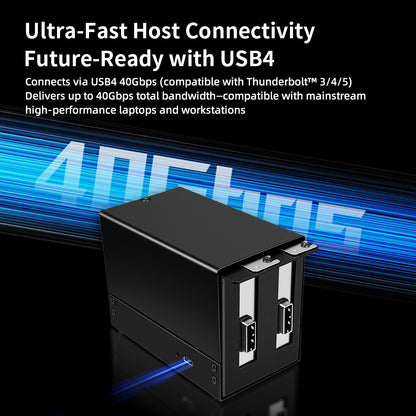

Thunderbolt 3/4/5 & USB4 Host Compatibility
This dock is fully compatible with any computer equipped with a USB4 40Gbps or Thunderbolt 3/4/5 port. Works seamlessly on Windows 10/11, macOS, and Linux — no additional drivers needed. Simply connect the included USB4 cable and start using your drives immediately.
No driver available for this product.
Q: What does this product do? How does it work?
A: This expansion dock connects to your computer via a single USB4 40Gbps port and expands it into two independent PCIe x4 slots. Two PCIe-to-4-port SATA expansion cards are pre-installed inside, converting the dock into an 8-port SATA 6Gbps storage expansion solution. You can connect up to 8 SATA SSDs or HDDs for use as a high-speed external storage array, media library, video editing cache pool, or data backup system.
Q: What is the upstream interface? Which host devices are compatible?
A: The upstream interface is USB4 40Gbps, compatible with Thunderbolt 3, Thunderbolt 4, and Thunderbolt 5. It works with Windows 10/11, macOS, and Linux systems that have a USB4 or Thunderbolt port. A 40Gbps USB4 cable is included in the package.
Q: What SATA speeds are supported?
A: The SATA ports comply with the Serial ATA 3.1 specification and support communication rates of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps, automatically negotiating with the connected drive.
Q: Does it support hot-swap?
A: Yes. The dock supports both hot-plug and hot-swap, allowing you to swap drives without restarting your system.
Q: How are the 8 SATA ports connected? What cables are included?

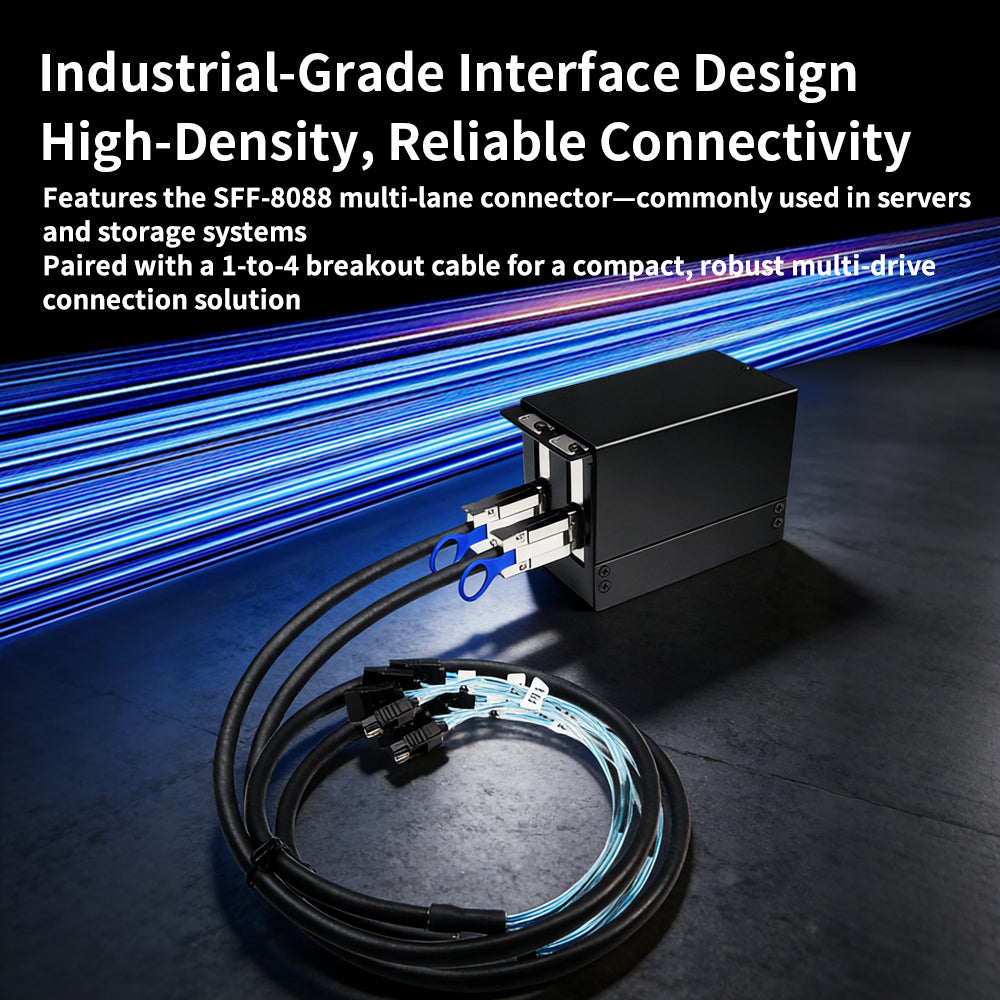

A: The dock uses SFF-8088 multi-lane connectors internally. One SFF-8088 to 4×SATA breakout cable is included in the package, providing 4 SATA connections. To use all 8 ports, a second SFF-8088 to 4×SATA cable (not included) is required and must be purchased separately.
Q: Does it support NCQ (Native Command Queuing)?
A: Yes. NCQ is supported, which improves drive performance by optimizing the order in which read/write commands are executed.
Q: Does it support RAID?
A: The SATA controller supports AHCI 1.0 and standard SATA operation. Please note that the Port Multiplier (PM) power management feature does not support RAID configurations. If you need RAID, please verify compatibility with your specific software RAID solution before use.
Q: What power supply is required? Is it included?
A: A 12V 3A DC power adapter is included in the package. Please use the included adapter to ensure stable operation of all connected drives.
Q: Which operating systems are supported?
A: Windows 10/11, macOS, and Linux are all supported. No additional drivers are required on most modern systems.
Q: What is included in the package?
A: 1 x USB4 40Gbps to 8-Port SATA Expansion Dock, 1 x 12V 3A power adapter, 1 x 40Gbps USB4 data cable, 1 x SFF-8088 to 4×SATA cable, 1 x user manual. Note: a second SFF-8088 to 4×SATA cable is needed to use all 8 ports and is not included.
