Driver download address:http://www.mmui.com.cn/data/upload/image/2CH_SDI_HDMI.zip
Model：IO-PCE8512-HSI
Input Interface：PCIe
Output Interface：SDI/HDMI
Motherboard Slot：PCI-Express* 1
Auxiliary Accessories：Low-profile bracket

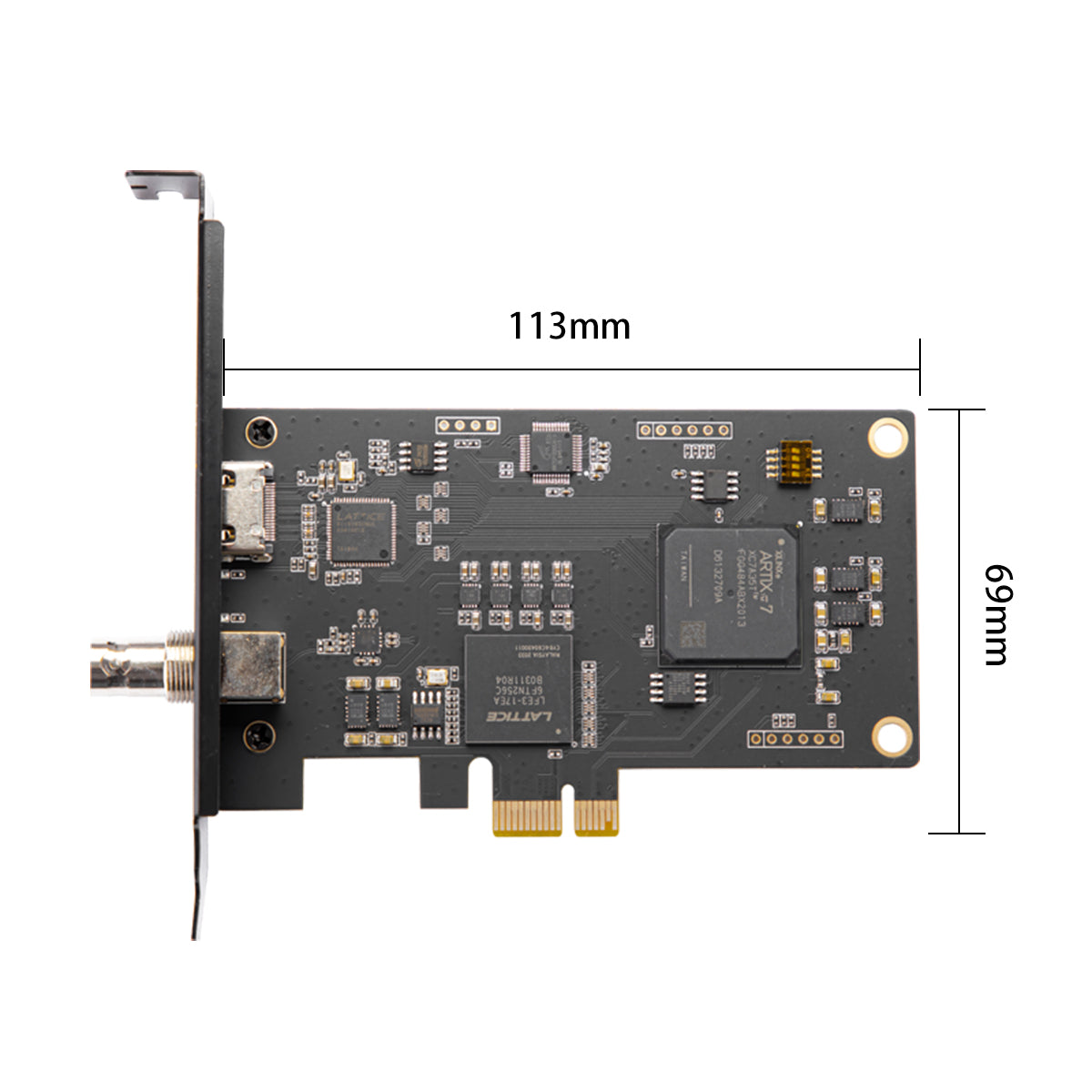

Product Size：113* 69mm
Description
• Product name: SDI/HDMI 2-channel built-in capture card
• Size: 113*69mm
• Host interface: PCI-Express*1
• Video input interface: 1 HDMI+1 SDI input
• Audio capture: 1 channel HDNI + 1 channel SDI embedded audio capture
• Input format: HDMI1.4 3GSDI
• Output color space: YUY2
• Hardware de-interlacing: support 1080i hardware de-interlacing,
• 3D noise reduction algorithm, clearer picture
• Multi-stream output: support multi-stream output
with different resolutions
• Acquisition frame rate: support 24, 25, 50, 60Hz
• Acquisition resolution: 1920*1080P@60/50fps
1920*1080P@30/25/24fps
1920*1080i@60/50fps
1280*720P@60/50fps
1024*768P@60fps
800*600P@60fps
640* 480P@60fps
720* 480P@60fps
720*576P@50fps
System Requirements
• Windows XP/7/8.1/10 32bit/64bit
• Compatible software: Windows Media Encoder,
Adobe Flash Media Live Encoder,
Real Producer Plus, VLC, Wirecast VMIX..
