ASM1064/1068 Driver - Windows 10/8/7 Compatible

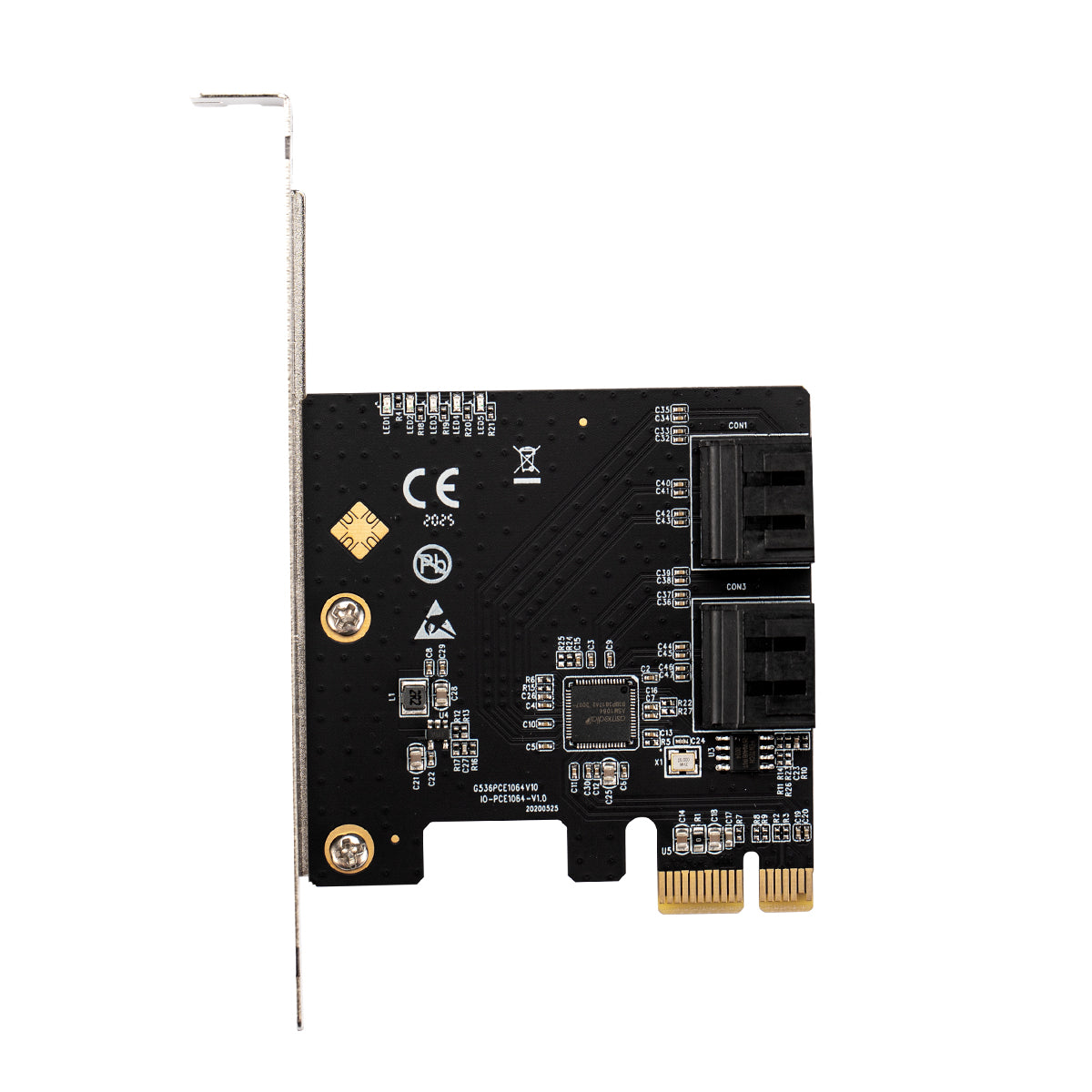

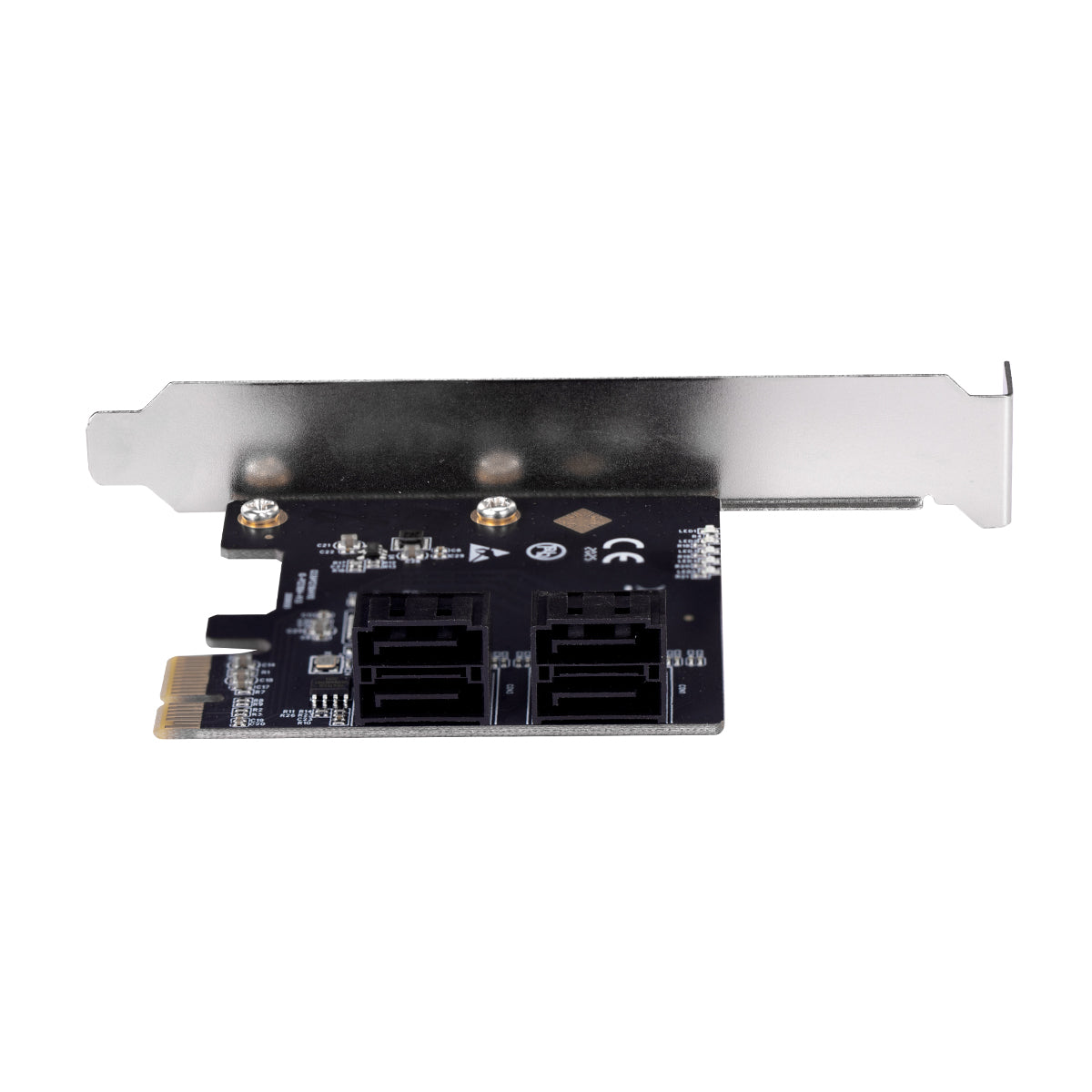

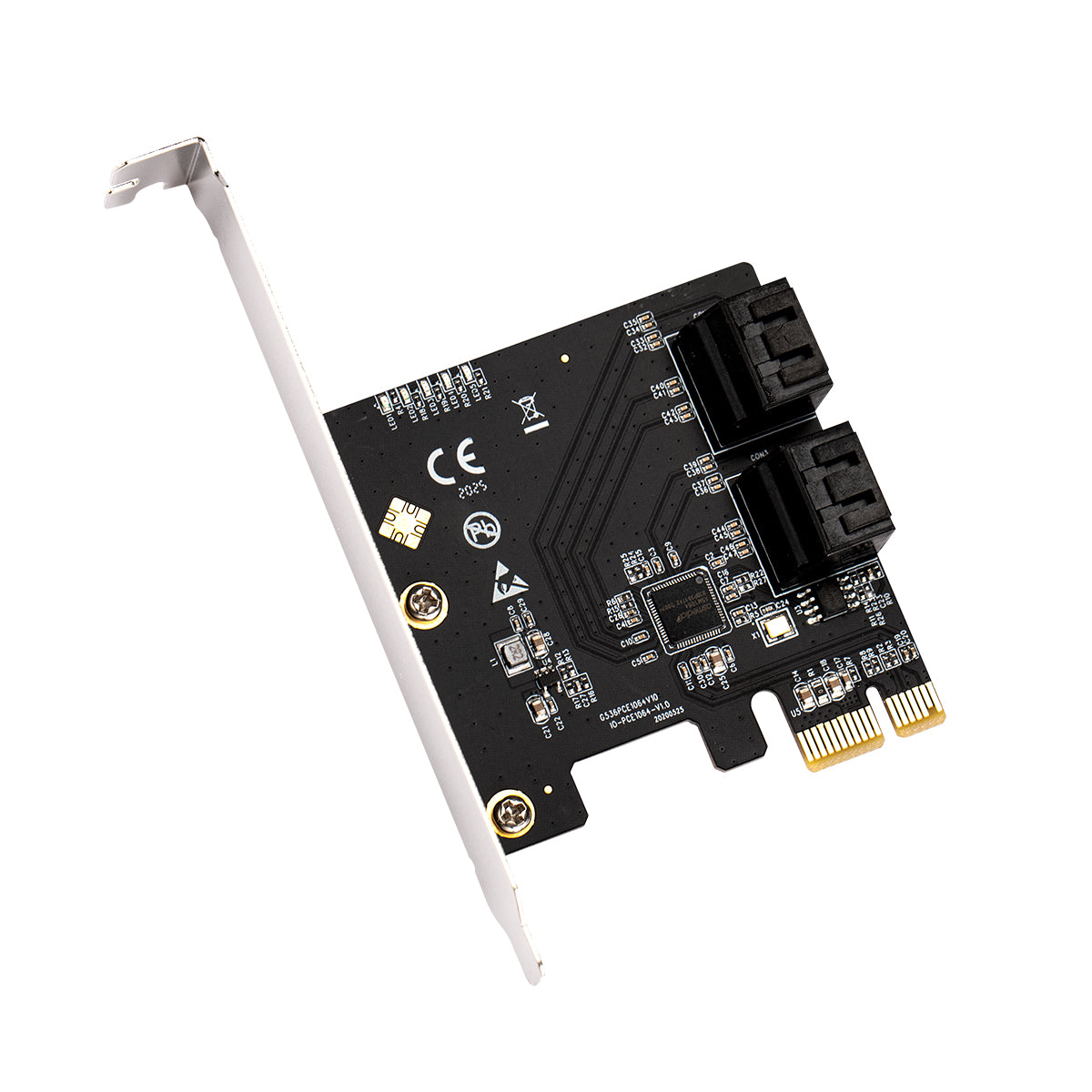

| Model Number | IO-PCE1064-4I |
| Interface Type | PCIe 3.0 x1 to 4x SATA III |
| Transfer Speed | Up to 6Gbps per port (600MB/s) |
| Dimensions | 65.3 x 68.5mm |
🚀 Performance
• Hot plug & hot swap
• NCQ support
• AHCI 1.4 compliant
• Port multiplier ready
⚙️ Compatibility
• PCIe 3.0 standard
• SATA 3.2 compliant
• UEFI support
• Windows 10/8/7

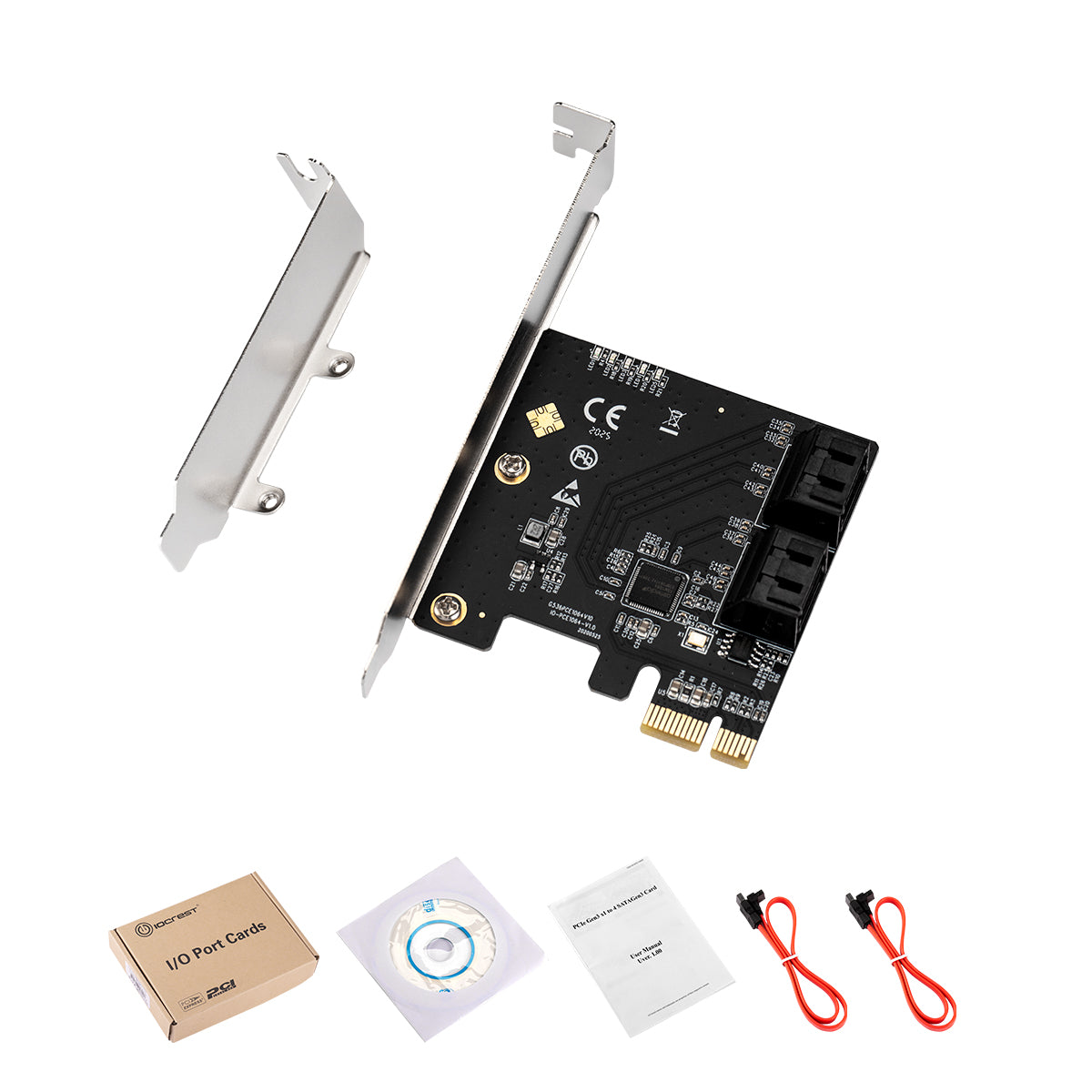

What's Included
📦 1x PCIe Gen3 x1 to 4-Port SATA Gen3 Card
📖 1x User Manual
🔌 2x SATA Data Cables
🔧 1x Low Profile Bracket
Technical Details
Standards Compliance:
- PCI Express Base Specification Rev. 3.1a
- SATA Specification Rev. 3.2
- AHCI Specification Rev. 1.4
Advanced Features:
- Automatic lane configuration detection
- Power management (Partial/Slumber states)
- SATA plug-in detection
- Command-based port multiplier switching
💼 Ideal Applications
✓ Desktop PC storage expansion
✓ NAS system upgrades
✓ Workstation multi-drive setups
✓ RAID array configurations
❓ Frequently Asked Questions
Q: Do I need to install drivers for this card?
A: Yes, we strongly recommend installing the official ASM1064/1068 driver for best performance and stability. Click the "Download Driver Package" button at the top of this page to get the latest driver. After installing the card, run the driver installer and restart your computer to ensure all features work properly.
Q: Can I use this card with SSDs and HDDs simultaneously?
A: Yes! You can connect any combination of SATA SSDs and HDDs to the 4 ports. Each port operates independently at up to 6Gbps.

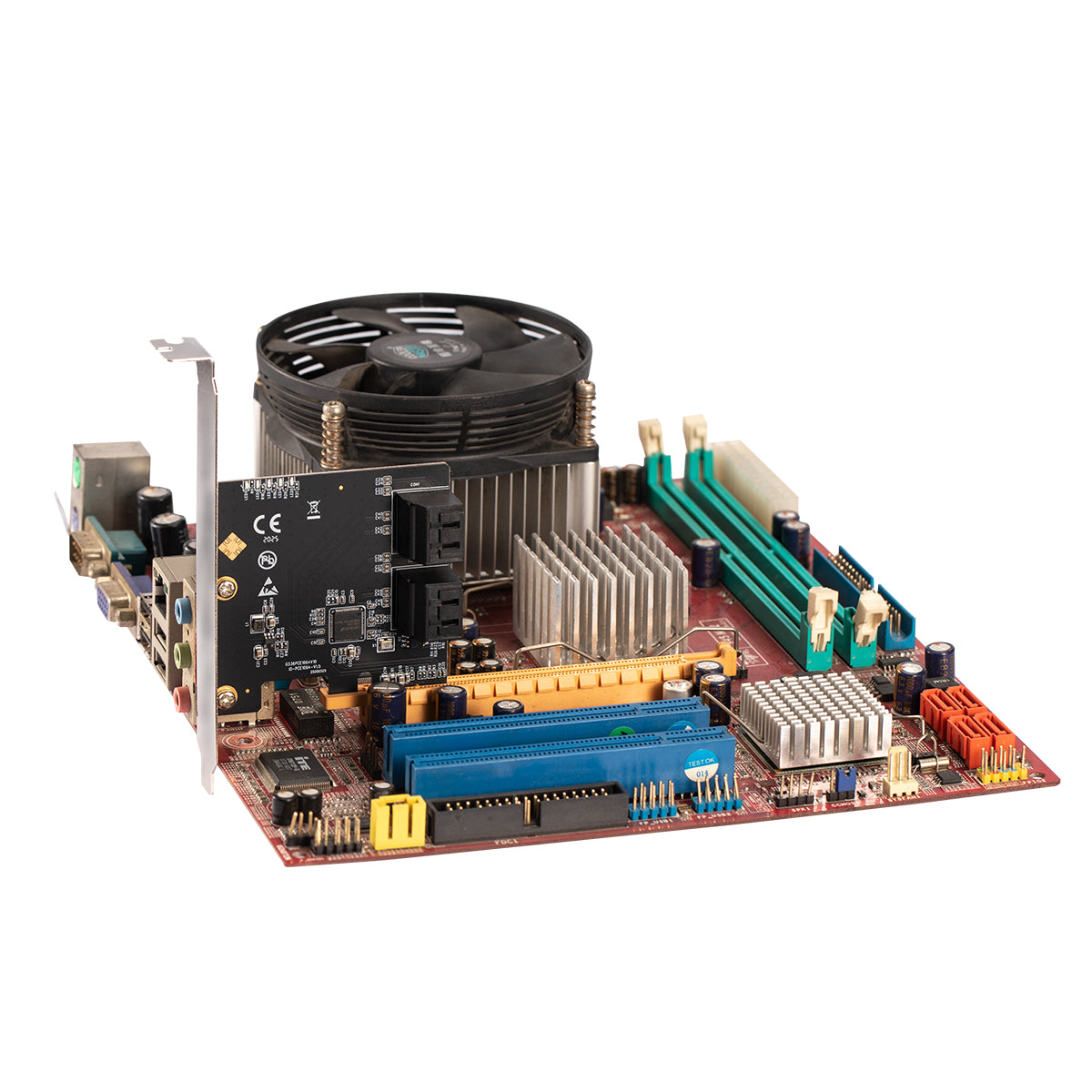

Q: Will this work in a PCIe x4 or x16 slot?
A: Absolutely! This x1 card is compatible with any PCIe slot (x1, x4, x8, or x16). It will work in larger slots without any issues.
Q: Does this card support RAID configurations?
A: This is a non-RAID controller card. For RAID functionality, you'll need to use software RAID through your operating system or motherboard RAID features.

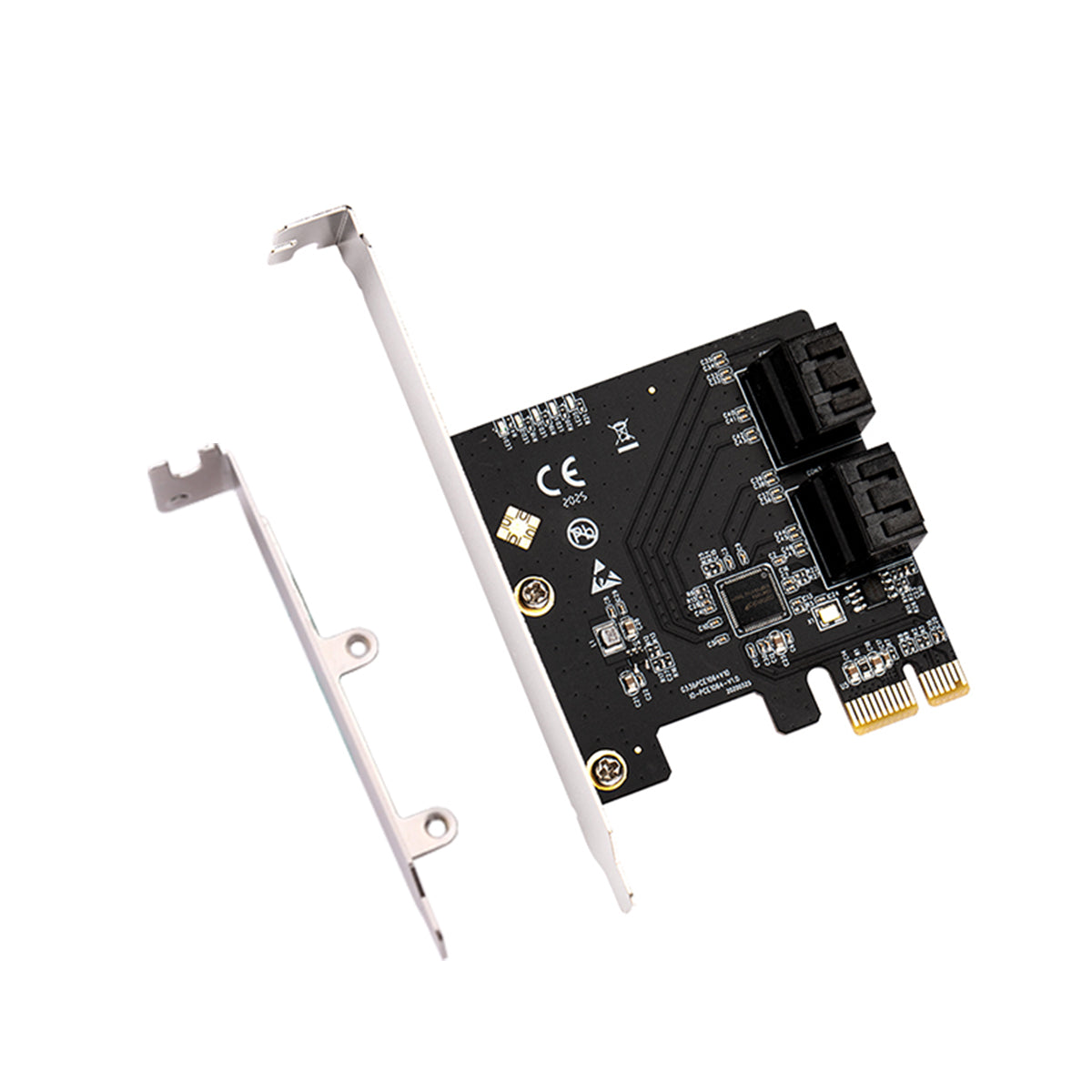

Q: Is the low-profile bracket included?
A: Yes! The package includes both standard and low-profile brackets, making it compatible with small form factor (SFF) cases and full-size desktop cases.
Q: Can I boot from a drive connected to this card?
A: Yes, with UEFI support, you can boot from drives connected to this card. Make sure your motherboard BIOS is set to UEFI boot mode and the card is properly initialized.
Q: What's the maximum capacity per drive?
A: There's no capacity limitation from the card itself. You can use drives of any size supported by your operating system (including 10TB+ drives).
