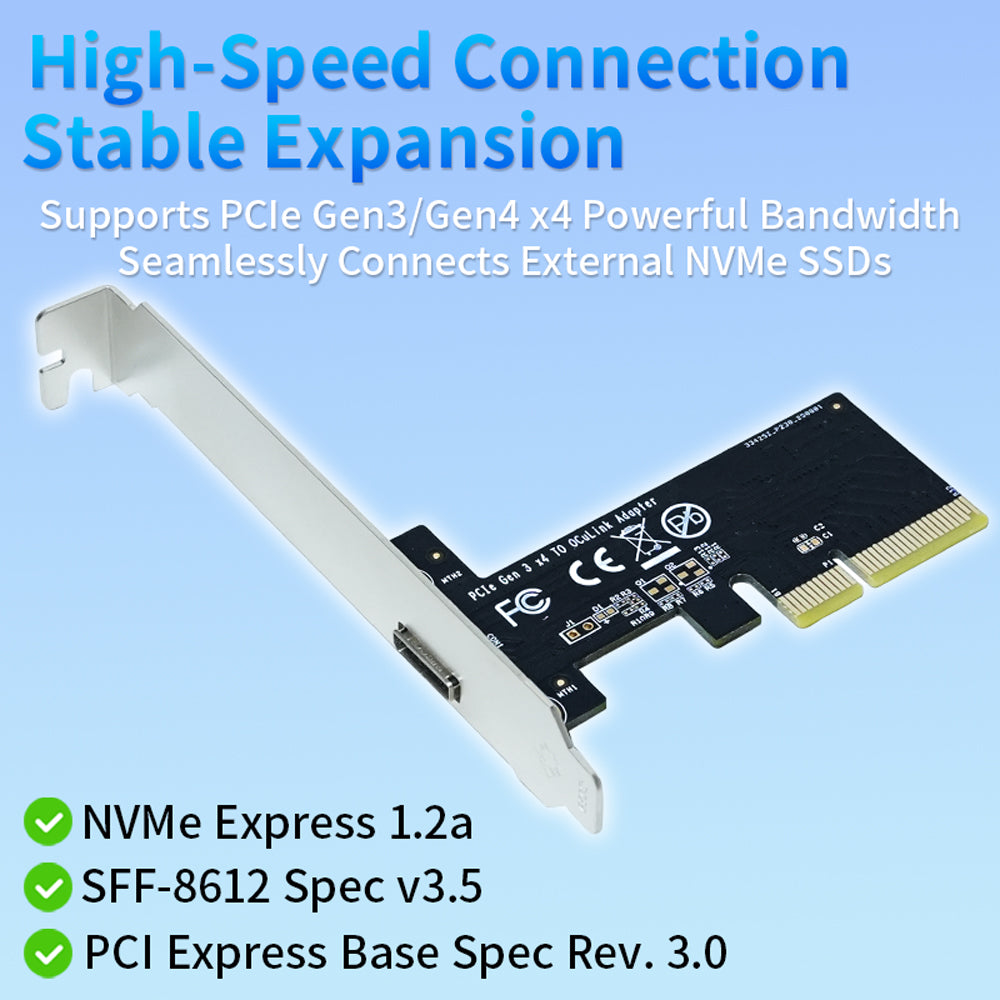

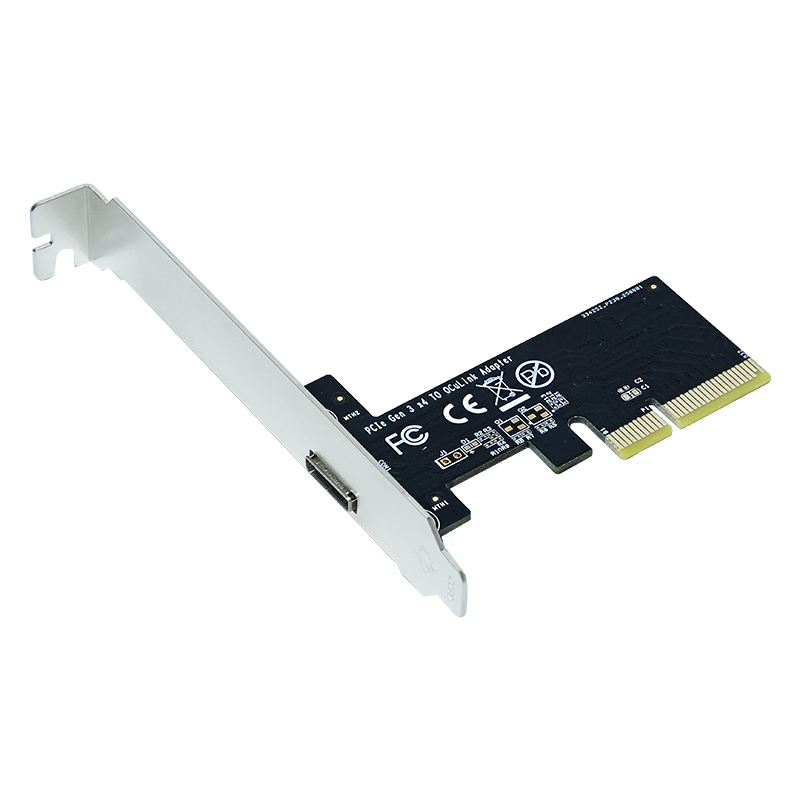

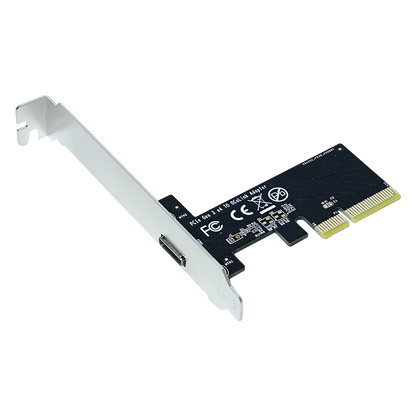

🔌 Lekuo PCIe Gen3/4 x4 to OCuLink SFF-8612 Adapter
High-performance PCIe to OCuLink adapter delivering reliable, low latency connectivity for enterprise network expansion and NVMe SSD storage solutions.
✨ Key Features
- NVMe 1.2a Compliant - Full support for high-speed NVMe protocol ensuring maximum SSD performance
- PCIe Gen3/4 x4 Interface - Backward compatible design supporting both Gen3 and Gen4 specifications for flexible deployment

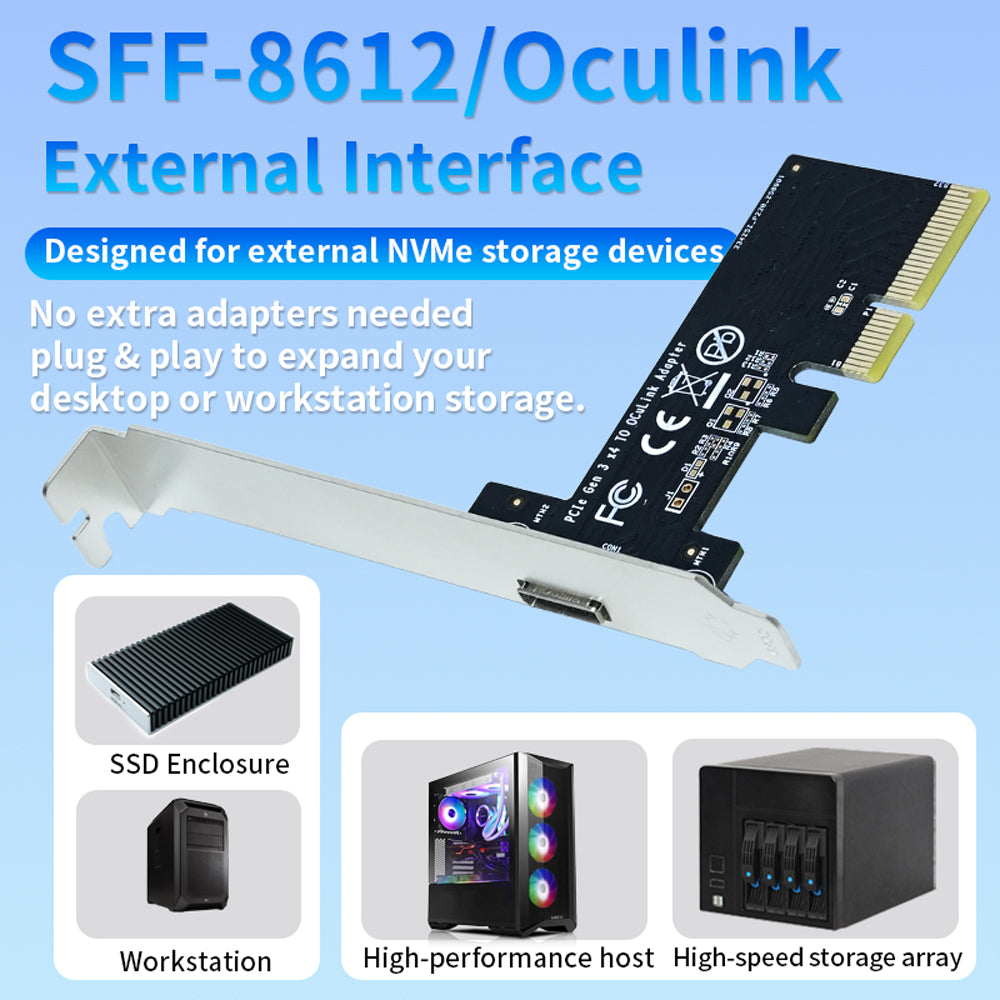

- SFF-8612 Standard v3.5 - Industry-standard OCuLink connector for reliable external NVMe SSD connectivity
- Plug-and-Play Compatibility - Works seamlessly with Windows 7/8/8.1/10/11+ and UEFI 2.3.1+ systems
- Professional PCIe Lane Expansion - Ideal for workstations, servers, and professional applications requiring external high-speed storage

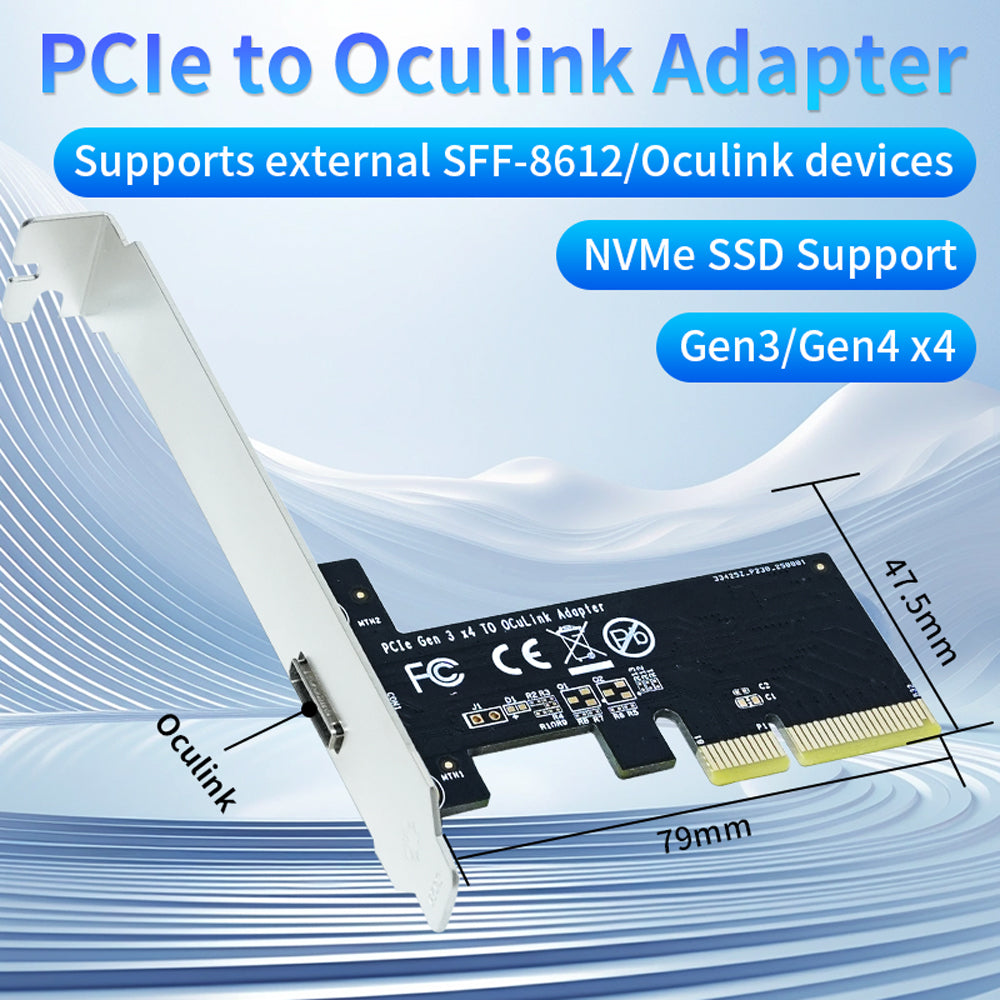

- Compact & Lightweight Design - Ultra-compact 79.2x47.5mm form factor, weighing only 30g for easy installation
📋 Product Parameters - Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Lekuo |
| Product Name | PCIe Gen3/4 x4 to OCuLink (SFF-8612) Adapter |
| Model Number | IO-PEX86123 |
| Input Interface | PCIe Gen3/4 x4 |
| Output Interface | External OCuLink (SFF-8612) |
| Protocol | NVMe 1.2a Compliant |
| Conversion Type | PCIe to OCuLink |
| Standards Support | SFF-8612 Standard v3.5 | PCIe Base Spec 3.0 |
| SSD Form Factor | Supports SSD Form Factor 1a |
| Applications | External high-speed NVMe SSDs | Expand PCIe lanes for professional use |
| System Requirements | Windows 7/8/8.1/10/11 or later | UEFI 2.3.1 or later |
| Dimensions | 79.2 x 47.5 mm |
| Weight | Net: 30g | Gross: 74.9g |
🎯 Application Scenarios
🖥️ Servers & Workstations
Expand external NVMe SSD storage capacity for high-performance computing workstations and enterprise servers requiring fast, reliable connectivity with PCIe Gen3/4 speeds.
☁️ Virtualization Platforms
Perfect for virtualization environments needing direct NVMe passthrough and external storage expansion with full NVMe 1.2a protocol support.
🎬 Professional Content Creation
Ideal for video editing, 3D rendering, and professional applications requiring high-speed external NVMe storage with low latency PCIe connectivity.
📦 Package Includes
- 1 x Lekuo IO-PEX86123 PCIe Gen3/4 x4 to OCuLink Network Adapter
- 1 x Low-Profile Bracket
❓ Frequently Asked Questions (FAQs)
Q1: Is this adapter compatible with my Windows system?
A: Yes, the IO-PEX86123 supports Windows 7, 8, 8.1, 10, 11, and later versions. Your system must have UEFI 2.3.1 or later for optimal compatibility. Most modern systems meet this requirement.
Q2: How do I install the Lekuo PCIe to OCuLink adapter?
A: Installation is straightforward - power off your system, insert the adapter into an available PCIe x4 or higher slot (x8, x16 slots also work), secure with the included bracket, connect your OCuLink NVMe SSD, and power on. The system should automatically detect the device.
Q3: Do I need special drivers for this adapter?
A: For most modern Windows systems (Windows 10/11 with UEFI 2.3.1+), the adapter works plug-and-play without additional drivers. For Windows 7/8/8.1 or specific configurations, drivers are available for download from our support page.
Q4: What is the difference between PCIe Gen3 and Gen4 support?
A: This adapter supports both PCIe Gen3 and Gen4 x4 interfaces. Gen4 offers double the bandwidth of Gen3 (up to 64 Gbps vs 32 Gbps). The adapter automatically negotiates the best speed based on your motherboard and SSD capabilities, ensuring backward compatibility.
Q5: What type of SSDs can I connect with this adapter?
A: This adapter is designed for external NVMe SSDs with OCuLink (SFF-8612) connectors. It supports SSD form factor 1a and is fully NVMe 1.2a compliant, ensuring compatibility with high-performance NVMe storage devices.
Q6: What warranty and support does Lekuo provide?
A: Lekuo provides comprehensive technical support for all our products. For warranty details, technical assistance, or driver downloads, please contact our support team or visit our support portal.
